Film Strench Soap Packaging Wrapper Machine

Product Description

Product Description Film Strench Soap Packaging Wrapper Machine
The introduction of the wrapping packaging machine:
This machine is suitable for PE stretch film packaging of soaps of various shapes. Soaps of different sizes can be packaged without changing molds. One person can operate two devices at the same time, which reduces labor cost and improves production efficiency.
Product Parameters

Model	ABZ-02
Packaging speed	10-15 pieces/min
Manual soap specifications	diameter	≥40mm
	Thickness (height)	≤30mm
Membrane specification	Stretch the outer diameter of the film	≤φ200mm
	Stretch film width	≤260mm
	Internal diameter of the stretched film cylinder core	φ≤75mm
	film thickness	0.02mm
power	110w
pressure	5-7kgf/cm3
weight	110KG
External size	2000x1000x1650mm(L*W*H)

Detailed Photos

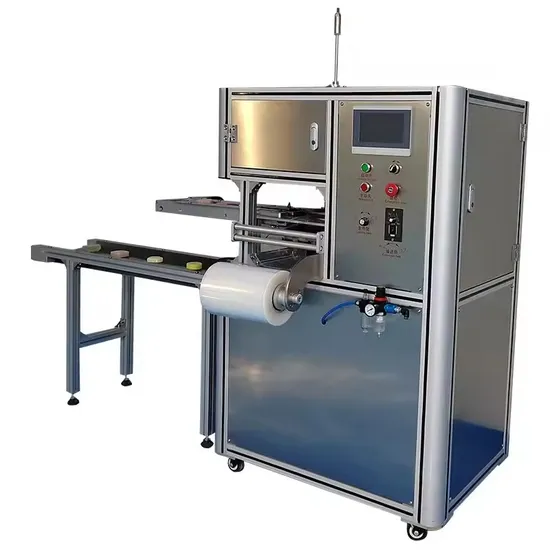

1.Simple operation area The large-size touch screen is used to control the packaging process of the machine, and it enjoys key parameters such as packaging speed and packaging temperature are accurately and conveniently controlled. 2. Suction head and Platen Use a suction head to suck various soaps into the platen, and then automatically wrap the film and weld it automatically, and use PE stretch film. Application This machine is suitable for stretch film packaging of round, square, shell-shaped, petal-shaped, heart-shaped handmade soap. Soaps of different sizes can be packed without changing molds. Easy to use and simple to operate, it is a must-have equipment for handmade soap manufacturers!
Final products
