Food Grade Pet Scrap Flakes Washing Drying Line for Plastic Pet Bottle Recycling

Product Description

food grade PET Scrap Flakes Washing Drying Line for Plastic PET Bottle Recycling

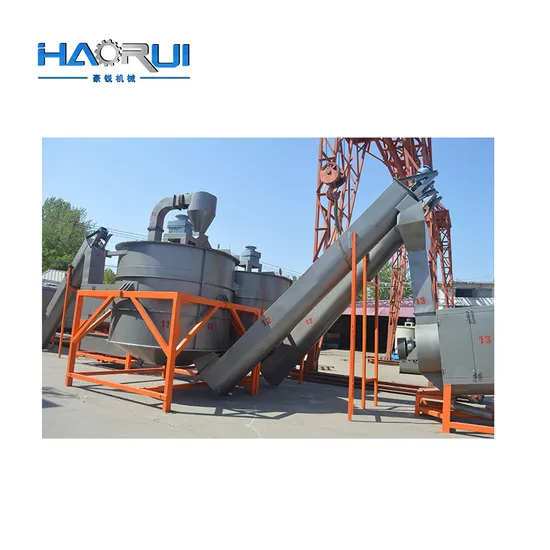

this is our 6000kg/h waste plastic PET water bottle crushing hot washing recycling line ,which can crush,wash and dry the dirty PET bottle
into clean and dry PET flakes. the dirty flakes can be produced into pellets, fiber , cloth etc
machine list: bale breaker--belt conveyor -pre washing--belt conveyor--sorting platform --label remover--belt conveyor--plastic crusher--
screw --floating tank --screw loader--floating tank--hot washing--high speed washing --screw--floating tank--screw--floating tank--
dewatering machine--pvc separator--PET flakes color sorter-silo
PET flakes :food grade and fiber grade
This 6000kg/h waste plastic PET water bottle crushing hot washing recycling line had been installed in Nigeria and Ghana , the customer will use the PET flake to produce fiber.

machine	6000kg/h waste plastic PET water bottle crushing hot washing recycling line
capacity	6000kg/h
machine size	100m*15m*6m
total energy	700kw/h
water	5tons /hr (can be recycled )

solution:

PET flakes size	12~16mm
pvc content	0
moisture	less than 0.5%
PE	0
glue	0

Factory information:
Baoding Haorui Machinery Manufacturing Co.,ltd was established in 1992,is a professional manufacturer and exporter that is concerned with the design,development and production of PET bottle crushing and washing machine, PP PE HDPE LDPE plastic crushing and washing machine, pelletizing machine .
There are over 100 technicians in our workshops which covers 20000 square meters. Over 28 years of plastic recycling machines production experience ,enable us to be TOP3 plastic recycling machine factory in China. Our own R&D team make our machine design unique, OEM and ODM service are also welcome. Our main products include bale opener, label remover, plastic crusher, floating tank, screw feeder, high-speed friction washer , hot / cold washer, dewatering machine, pipe dryer and so on.
We insist on the principle of "quality is first" and inspect the machine after producing " which make our market more popular in Domestic and over 40 sets of PET bottle washing line(four 6000kg/h capacity in Nigeria ,Ghana etc), PP PE HDPE LDPE washing line ,pelletizing machine were installed in Middle East,Africa,South America,South East, South Asia and so on
producing process
Team
Our customer
RFQ
Q: How often are the Crusher blades sharpened?
A: After continuous working at 30-40hours, the blades have to be sharpened
Q: How long does it take for changing blades-Remove and install blades?
A: Depending on the worker skilled or not. Normally 2-3hours
Q: How about the rate for removing the labels by Label remover?
A: Compressed bottle: more than 96%
Un-compressed bottle: more than 98%
Q:What's the temperature of steam washer ?
A: Usually 80-90ºC ( If the temperature is over 100ºC, the Flake will be roll.so the best temperature
is 80-90ºC)
Q: What's the moisture after Horizontal dewatering machine?
A: About 1.8%. Adopt Swedeen SKF bearing, with bearing layer on the surface of screw blades
for longer working life.
