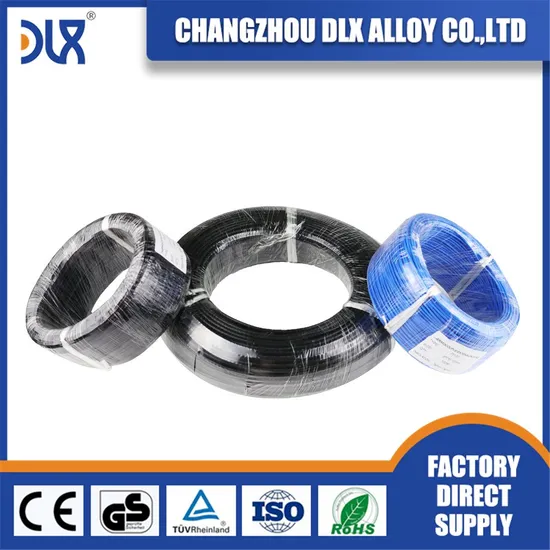

Heat Resistant Kx Nx Ex Jx PVC Insulated Compensation Cable E J K N T Type Thermocouple Extension Wire for Temperature Instruments

Product Description

Product Description Thermocouple type:Assembly thermocouple,Armored thermocouple,bayonet spring fixed thermocouple,
high temperature thermocouple,platinum and rhodium thermocouple,anti-corrosion thermocouple,
wear-resistence thermocouple,high temperature thermocouple,special thermocouple,hand-held
thermocouple,miniature thermocouple,noble metal thermocouple,rapid thermocouple,tungsten rhenium
thermocouple, single core armed thermocouple etc. Calibration Type Characteristics
TYPE J (Iron vs Constantan) is used in vacuum, oxidizing, inert or reducing atmospheres. Iron element oxidizes rapidly at
temperatures exceeding 538'C, and therefore heavier gauge wire is recommended for longer life at these temperatures.
TYPE K (CHROMEL vs ALUMEL) is used in oxidizing, inert or dry reducing atmospheres. Exposure to vacuum limited to short time periods. Must be protected from sulfurous and marginally oxidizing atmospheres. Reliable and accurate at high temperatures.
TYPE T (Copper vs Constantan) is used or service in oxidizing, inert or reducing atmospheres or in vacuum. It is highly resistant to corrosion from atmospheric moisture and condensation and exhibits high stability at low temperatures. It is the only type with limits of error guaranteed for cryogenic temperatures.
TYPE E (CHROMEL vs Constantan) may be used in oxidizing, inert or dry reducing atmospheres, or for short periods of time under vacuum. Must be protected from sulfurous and marginally oxidizing atmospheres. Produces the highest EMF per degree o any standardized thermocouple.
Thermocouple Wire Type K Thermocouple (Nickel-Chromium / Nickel-Alumel): The type K is the most common type of thermocouple. It's inexpensive, accurate, reliable, and has a wide temperature range. The type K is commonly found in nuclear applications because of its relative radiation hardness. Maximum continuous temperature is around 1,100C.
Product Parameters

Code	Wires component of the thermocouple
	+Positive leg	-Negative leg
N	Ni-cr-si (NP)	Ni-si-magnesium (NN)
K	Ni-Cr (KP)	Ni-Al(Si) (KN)
E	Ni-Cr (EP)	Cu-Ni<constantan> (EN)
J	Iron (JP)	Cu-Ni<constantan> (JN)
T	Copper (TP)	Cu-Ni<constantan> (TN)

Thermocouple Variety and Index
Variety	Type	Measurement Range(ºC)
NiCr-NiSi	K	-200-1300
NiCr-CuNi	E	-200-900
Fe-CuNi	J	-40-750
Cu-CuNi	T	-200-350
NiCrSi-NiSi	N	-200-1300
NiCr-AuFe0.07	NiCr-AuFe0.07	-270-0

Thermocouple type and grade

Thermocouple Type	Grade	Temperature Range(ºC)	Allowable Deviation
type K and type N	I	-40-1100	±1.5ºC or±0.4%t
	II	-40-1300	±2.5ºC or ±0.75%t
	III	-200-40	±2.5ºC or ±1.5%t
type E	I	-40-1100	±1.5ºC or ±0.4%t
	II	-40-1300	±2.5ºC or ±0.75%t
	III	-200-40	±2.5ºC or±1.5%t
type J	I	-40-750	±1.5ºC or ±0.4%t
	II	-40-750	±2.5ºC or ±0.75%t
type T	I	-40-350	±0.5ºC or± 0.4%t
	II	-40-350	±1.0ºC or± 0.75%t
	III	-200-40	±1.0ºC or± 1.5%t
NiCr-AuFe0.07	I	-270-0	±0.5ºC
	II		±1.0ºC

Specification of alloy wire

Anode		Cathode		Diameter(mm)	Maximum Temperature(ºC)
name	code	name	code		long-time using	short-time using
NiCr10(Chromel)	KP	NiSi3(Alumel)	KN	Φ0.3	700	800
				Φ0.5	800	900
				Φ0.8 Φ1.0	900	1000
				Φ1.2 Φ1.6	1000	1100
				Φ2.0 Φ2.5	1100	1200
NiCr14.2Si	NP	NiSi4	NN	Φ3.2	1200	1300
NiCr10(Chromel)	EP	CuNi45(Copel)	EN	Φ0.3 Φ0.5	350	450
				Φ0.8 Φ1.0 Φ1.2	450	550
				Φ1.6 Φ2.0	550	650
				Φ2.5	650	750
				Φ3.2	750	900
Fe(Iron)	JP	CuNi45(Copel)	JN	Φ0.3 Φ0.5	300	400
				Φ0.8 Φ1.0 Φ1.2	400	500
				Φ1.6 Φ2.0	500	600
				Φ2.5 Φ3.2	600	750
Cu(Copper)	TP	CuNi45(Copel)	TN	Φ0.2 Φ0.3	150	200
				Φ0.5 Φ0.8	200	250
				Φ1.0 Φ1.2	250	300
				Φ1.6 Φ2.0	300	350

Detailed Photos
Company Profile Over the years, we have worked hard to promote and realize the modernization of alloy sales, and actively cultivated and enhanced the ability of employees' independent innovation. All-round renovation and upgrade of the original business site, facilities and equipment, and modern computer management. Hope to establish long-term partnerships and win market reputation.
We are increasing thescale of trade and customers through out the world. With our good reputation we have won the trust of our customers. It's helps the modernisation of our country and promote the economic and technical exchanges with the rest of the world. We also look forward to enhance the friendship with other countries and make positive impact.
We warmly hope that you and us together, hand in hand, create a glorious future.

DLX alloy, which is a alloy factory more than 18 years, we are founded in 2002, and run business with resistance alloy first. And in past 20 years, we R&D new product such as Thermocouple alloy,inconel, monel, hastelloy, high temperature alloy and other nickel based alloy products.
Our Advantages
FAQ What is your working time?
Monday-Friday : 8:30AM-17:00PM (Beijing time, GMT+08.00)
We have public holiday during May.1-3, Oct.1-7 and Chinese New Year holiday . Pls e-mail us during our holiday if u have any questions.

Do you provide free samples?
Yes, we can provide a free sample for testing,buyer should bear the shipping costs.

What is your payment terms?
T/T,L/C,D/A,D/P,Western Union,MoneyGram,Paypal

What is the lead time?
Usually sample lead time is 15 days after payment has been confirmed.
