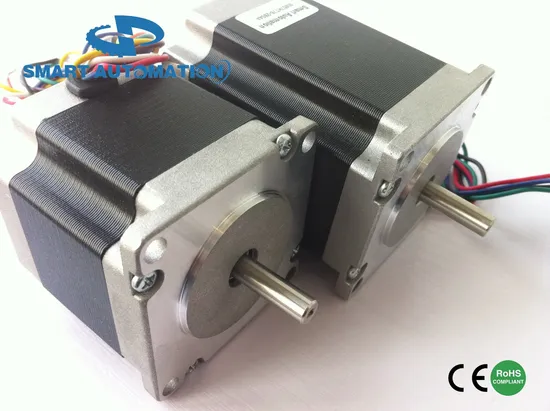

NEMA 23 57mm 2 Phase Stepper Motor, Linear and Geared Version Available
| US$7.00-24.00 | 100 Pieces (MOQ) |
Basic Info.
Model NO.
SM57HT--series
Number of Stator
Two-Phase
Excitation Mode
HB-Hybrid
Function
Driving
Type
Magnetic-Electric
Certification
ISO9001, RoHS&Ce
Brand
Smart Automation
Shaft Type
Customized
Holding Torque
Customized
Current
Customized
Transport Package
Standard Export Package
Specification
57mm
Trademark
Smart Automation
Origin
China
HS Code
8501109990
Production Capacity
50000 PCS Per Month
Product Description
1.8° Nema 23, Size 57mm High Torque Hybrid Stepping Motor 1.8 degree| Model No. | Rated Voltage | Current /Phase | Resistance /Phase | Inductance /Phase | Holding Torque | # of Leads | Rotor Inertia | Weight | Detent Torque | Length | |
| Single Shaft | Double Shaft | V | A | Ω | mH | kg-cm | g-cm2 | kg | kg-cm | mm | |
| SM57HT41-1006A | SM57HT41-1006B | 5.7 | 1 | 5.7 | 5.4 | 3.9 | 6 | 120 | 0.45 | 0.21 | 41 |
| SM57HT41-2006A | SM57HT41-2006B | 2.8 | 2 | 1.4 | 1.4 | 3.9 | 6 | ||||
| SM57HT41-3006A | SM57HT41-3006B | 1.9 | 3 | 0.63 | 0.6 | 3.9 | 6 | ||||
| SM57HT41-2804A | SM57HT41-2804B | 2 | 2.8 | 0.7 | 1.4 | 5.5 | 4 | ||||
| SM57HT51-1006A | SM57HT51-1006B | 6.6 | 1 | 6.6 | 8.2 | 7.2 | 6 | 275 | 0.65 | 0.36 | 51 |
| SM57HT51-2006A | SM57HT51-2006B | 3.3 | 2 | 1.65 | 2.2 | 7.2 | 6 | ||||
| SM57HT51-3006A | SM57HT51-3006B | 2.2 | 3 | 0.74 | 0.9 | 7.2 | 6 | ||||
| SM57HT51-2804A | SM57HT51-2804B | 2.3 | 2.8 | 0.83 | 2.2 | 10.1 | 4 | ||||
| SM57HT56-1006A | SM57HT56-1006B | 7.4 | 1 | 7.4 | 10 | 9.0 | 6 | 300 | 0.7 | 0.4 | 56 |
| SM57HT56-2006A | SM57HT56-2006B | 3.6 | 2 | 1.8 | 2.5 | 9.0 | 6 | ||||
| SM57HT56-3006A | SM57HT56-3006B | 2.3 | 3 | 0.75 | 1.1 | 9.0 | 6 | ||||
| SM57HT56-2804A | SM57HT56-2804B | 2.5 | 2.8 | 0.9 | 2.5 | 12.6 | 4 | ||||
| SM57HT64-2006A | SM57HT64-2006B | 3.6 | 2 | 1.8 | 2.5 | 10.5 | 6 | 380 | 0.85 | 0.5 | 64 |
| SM57HT64-3004A | SM57HT64-3004B | 2.4 | 3 | 0.8 | 2.3 | 15.0 | 4 | 380 | 0.85 | 0.5 | 64 |
| SM57HT76-1006A | SM57HT76-1006B | 8.6 | 1 | 8.6 | 14 | 13.5 | 6 | 480 | 1 | 0.68 | 76 |
| SM57HT76-2006A | SM57HT76-2006B | 4.5 | 2 | 2.25 | 3.6 | 13.5 | 6 | ||||
| SM57HT76-3006A | SM57HT76-3006B | 3 | 3 | 1 | 1.6 | 13.5 | 6 | ||||
| SM57HT76-2804A | SM57HT76-2804B | 3.2 | 2.8 | 1.13 | 3.6 | 18.9 | 4 | ||||
| SM57HT82- 3004A | SM57HT82- 3004B | 3.6 | 3 | 1.2 | 4 | 22 | 4 | 600 | 1.2 | 1 | 82 |
| SM57HT82- 5004A | SM57HT82-5004 B | 3 | 5 | 0.6 | 1.5 | 22 | 4 | ||||
| SM57HT112-3004 A | SM57HT112- 3004B | 4.8 | 3 | 1.6 | 6.8 | 28 | 4 | 800 | 1.4 | 1.2 | 112 |
| SM57HT112-4204 A | SM57HT112- 4204B | 3.8 | 4.2 | 0.9 | 3.8 | 28 | 4 | ||||
