UK2.5 Screw Connection Anti Flaming V0 DIN Rail Terminal Block

Product Description

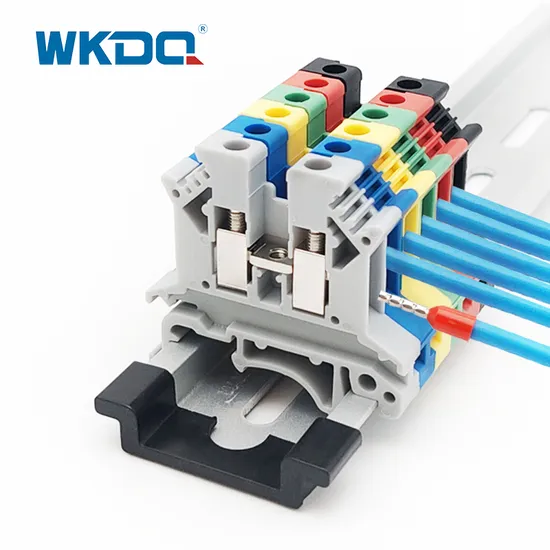

DIN Rail Mount UK2.5 Screw Clamp Connection Terminal Block
1. DESCRIPTION:
The internationally recognized screw connection meets the most stringent requirements and covers a wide area of application.
For the most stringent requirements: The screw connection has also proven itself in the wiring of large conductor cross sections. The JUK universal screw terminal block series has the typical features which are decisive for practical applications. Made from engineering flaming resistant nylon PA66 with brass conductor. With universal foot which can be installed on DIN Rail NS 35. It can connect two conductors with ease, even large conductor cross sections are not a problem. Electric potential distribution can use fixed bridges in the terminal center or insertion bridges in the clamping space. All types of accessories: End cover, End Stopper, Partition plate, Separating plate, Marker strip, Fixed bridge, Insertion bridge, etc.
Technical Parameters

Model No.	JUK 2.5B
Color	Grey, Blue, other color can be customized
Length/Height/Wide (mm)	42.5/41/6.2
Connection method	Screw connection
Material	Flame resistant Nylon PA66, Nickel plated brass conductor
Rated Voltage/Current	800V/32A
Cross section, solid/soft Cable	0.2-4 mm² / 0.2-2.5 mm²
Conductor Size	24-12 AWG
Mounting Type	DIN Rail NS 35
Standard	IEC 60947-7-1
LOGO	WKDQ, LOGO can be customized
Packing Detail	6.9g/PC, 100PCS/BOX, 3000PCS/CTN
Certification	CE/RoHS/CQC/ISO 9001

FAQ
Q1 : Are you manufacturer ?
We are factory specializing in Terminal Blocks, Fans Filters Since 1999.
Q2: Can you make customized products or packing?
Of course, our R&D Depart. have rich experience in OEM, ODM service. Package can be customized as demanded.
Q3:What about your MOQ?
We keep large stocks for standard product with Fast Delivery, no MOQ required.
Q4: Do you have any test certification?
Products approved by CE, RoHs, etc. Our factory passed by SGS and CQC ISO9001 Qualification.
Q5: How about the after-sale service? What's the warranty terms?
If you have any problems after sales, we'll bring out solution within 24 hours. Quality warranty is 1 year, for problems happened over 1 year, we can also assist to solve.
