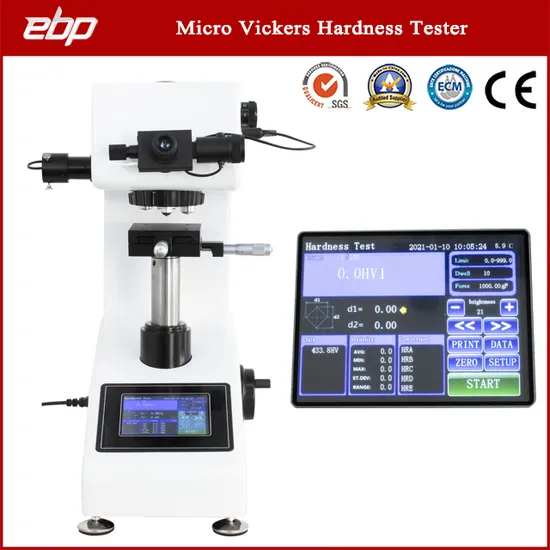

Micro Hardness Tester with Vickers Indenter Vickers Scale ASTM E 384

Product Description

Product Description With high-quality imported components, ensure the new type digital Micro Hardness Testers working more stable. Protected by the state patent application of the lift & down system, after upgrading, the control system can provide more measuring data, and control more precise. This machine is integrated with optics, mechanics and electricity. It with unbeatable price / performance ratio, widely used in quality inspection and quality control field.
Main purpose and application: 1. Steel, nonferrous metals, tinsel, cemented carbide, sheet metal, metallographic structure. 2. Carburization, nitriding and decarburization layer, surface hardening layer, galvanized coating. 3. Glass, chip and ceramic material. Main Features:
1. Adopted one time casting aluminum machine body and car painting technology, structure more stable and appearance more decent.
2. The independent research and development of lift & down system and positioning system, ensured the accuracy and repeatedly of the testing process.
3. 10X Digital eyepiece with encoder, only click the button of encoder, the D1, D2 value will input machine automatically. No need manually input the value of diagonal length. Easy operation, greatly improve working efficiency, and test result more accurate.
4. The optical system designed by our senior optical engineer not only meet the definition of hardness testing requirements, but also can observe the micro structure of the material, image is very clear.
5. According to different visual habits of the operators, the strength of the light source can be adjusted. To avoid the visual fatigue for long time operation.
6. With Vickers hardness and Knoop hardness testing capabilities. By measuring the indentation diagonal length, the hardness will show on the screen directly, no need to check hardness table.
7. Industrial digital touch screen can direct display hardness value, conversion hardness value, testing method, testing force, dwell time, easy for operator to save the data.
8. Double optical path design. Both eyepiece and CCD camera path can work at same time. No need switch optical path. Camera can be install inside machine (camera for optional purchase).
Specification:

Model	eVIck-1MT	eVIck-1AT
Turret	Manual Turret	Automatic Turret
Testing force	10g (0.098N), 25g (0.245N), 50g (0.49N), 100g (0.98N ), 200g (1.96N), 300g (2.94N), 500g (4.9N), 1000g (9.8N) Test force error: ±1.0%
Hardness scale	HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1
Loading speed	≤0.05mm/sec
Indenter	Standard Rectangular pyramid diamond indenter (136º±0.5º)
Min. measuring unit	0.01μm
Hardness value rang	5HV-3000HV
Hardness Value of Reading	Digital LCD Screen
Eyepiece	10X digital eyepiece
Objective lens	10X (observe), 40X (Measurement)
Total magnification	100X (For Observation) , 400X (For Measurement)
Loading method	Automatically (Load, dwell and unload the testing force)
Duration time	1-99s (each step is 1 second)
Maximum height	90mm
Throat depth	95mm
Instrument size and Net weight	405*290*480mm (L×W×H) 40kg
Packing size and Gross weight	580x345x580mm( LxWxH) 55kg
Light Source	LED cold light source
Power Supply	220V + 5%, 50/60 Hz (110V is available)
X-Y Testing Table	Dim.:100×100 mm, Max. Travel Range: 25×25mm, Moving Resolution Ratio: 0.01mm
Executed Standard	GB/T4340, ASTM E384 & E92, EN-ISO 6507, JIS B-7734

Standard Accessory:

Item #	Name	Qty
1	Weights shaft	1
2	Weights	6
3	10X digital eyepiece	1
4	10X objective lens	1
5	40X objective lens	1
6	Vickers diamond indenter	1
7	X-Y Testing Table	1
8	Level bubble Note: For avoid potential risks, Will remove level bubble if ship by air, since liquid materials are forbidden by airlines	1
9	Flat fixture	1
10	Sheet specimen fixture	1
11	Standard block of hardness	2
12	Spare fuse 2A	2
13	Horizontal adjusting screw	4
14	Power line	1
15	Dust proof cover	1
16	Manual Book	1
17	Certificate of quality	1
18	Screwdriver	2
19	Warranty Card	1
20	Accessory box	1

More Detailed Features:
1) Machine is equipped with built-in printer and RS 232 port, testing data can print out directly by the printer. If want to save testing data to PC and generate a simple test report via RS232 port, please additional purchase our data transfer software. (printer and Data transfer software same as below pictures)
2) If want to connect with computer do automatic measurement work and generate test report, please additional purchase our professional Vickers hardness software system.
3) Touch screen with menu structure, Hardness value, hardness scale, Conversion Scale, Dwell time, Limit, Lightness, etc all can display on screen directly, Support Vickers HV hardness testing and HK Knoop hardness testing, very easy operation.
4) Automatic design, great improved working efficiency. Automatic turret, automatic loading - Dwell - Unloading, digita eyepiece with encoder support automatic hardness calculate. And From Vickers hardness scale can convert to HRA, HRB, HRC, HK, HBW, etc directly.
5) Standard machine come with XY microstage work table, digital meter head XY work table for optional purchase
6) Standard parts including 2 pieces of HV blocks and 1 piece of Vickers Diamond indenter, please let us know if need any more consumable parts.
