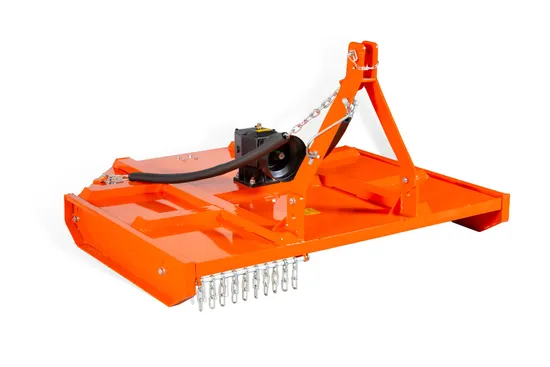

Agri Machine Mini Tractor Grass Cutter 3 Point Pto Slaher Mower Grass Mower
Basic Info.
Model NO.
TM120
Certification
CE
Application
Fruit Tree, Lawn, Farmland
Cutting Height
10-80mm
Cutting Width
800-1800mm
Working Way
Rotary
Type
Tractor
Moving Way
Tractor-Mounted
Cutter Type
Rotary Lawn Mower
Applicable Area
500-1000m²
Feature
Height Adjustable Handles
Cutter Kind
Straight Metal Blade
Mowing Requirements
Truncated Type
Usage
Common Lawn, Golf Courses Rugby Field, Farm Lawn
Power Source
Tractor
Company Type
Manufacture
No of Blades
Two or Three, Upon Your Request
Roller
with Bearings in Two Ends
Gearbox
Nodular Cast Iron
Transmission
Pto Shaft
Steel Plate
Thick and Solid
Colour
Upon Your Request
Transport Package
Wooden Box
Specification
CE
Trademark
Lefa
Origin
Changzhou, China
HS Code
84331100
Production Capacity
500 Sets Per Months
Packaging & Delivery
Package Size
125.00cm * 65.00cm * 66.00cm
Package Gross Weight
150.000kg
Product Description
| Model | DMS-100 | DMS-120 | DMS-140 | DMS-150 | DMS-160 | DMS-180 |
| Tractor HP | 18-25HP | 20-30HP | 20-30HP | 25-50HP | 25-50HP | 25-60HP |
| Working width | 950mm | 1150mm | 1350mm | 1450mm | 1550mm | 1750mm |
| Blades quantity | 2 or 3 pcs | |||||
| PTO Input speed | 540r/min | |||||
| Weight | 148kg | 170kg | 200kg | 236kg | 252kg | 287kg |
| Dimension | 1150*1146*966mm | 1350*1346*968mm | 1550*1546*968mm | 1650*1646*968mm | 1750*1746*968mm | 1950*1946*968mm |
| Packing size | 1220*1100*2200mm | 1420*1300*2200mm | 1620*1500*2200mm | 1720*1600*2200mm | 1820*1700*2200mm | 2020*1900*2200mm |
Product Parameters
| Model | TM-90 | TM-100 | TM-120 | TM-140 |
| Dimension(mm) | 950*900*900mm | 1050*1000*900 | 1250*1200*900 | 1450*1400*900 |
| Weight(Kg) | 115KG | 145KG | 165KG | 175KG |
| Cutting width | 85cm | 95cm | 115cm | 135cm |
| PTO Input Speed | 540r/min | 540 r/min | 540 r/min | 540 r/min |
| Power Required | 18-25HP | 18-25HP | 20-30HP | 20-30HP |
| Packing size(mm) | 1050*1000*2200 | 1150*1100*2200 | 1350*1300*2200 | 1550*1500*2200 |
Product Description
It is used for cutting high
er weeds in the field, and also suitable for bushes or rougher weeds. It cuts grass by high-speed by high-speed parallel turned blades.
3 point linkage Graphite casting iron gearbox Tractor power required: 18-30HP With CE certificate
Packaging & Shipping
Company Profile
FAQ
Q1. How to buy LEFA machines?Inquiry ---------> Quotation -------->Price reasonable ------->Check with specification ----->Proforma Invoice sent ------------>Payment made -------> Producing the items ------->Product shipment -----------> Customer confirmQ2.How long is the delivery date for agriculture machinery cultivator?A:In general, we can ship the goods within 30-45 days after receiving your payment. Of course, it also depends on your quantity.Q3. How can I get to your factory to buy tractor cultivator?A:We are located in Changzhou, only one hour's distance to Shanghai or Nanjing. You can fly to Shanghai/Nanjing/Changzhou Airport , the transportation is very convenientQ4.Do you have stock for rotary tiller?A:In general, we have some stock, while if you need a bulk order, we still need time to produce it. Of course, we will inform all details you before your payment.Q5: What's your main products?A: Our products are covered almost all farm machines and Japanese tractors parts, we can meet your any demands.Q6. What is your terms of payment?A: T/T, L/C, Paypal, Western Union
