Product Description

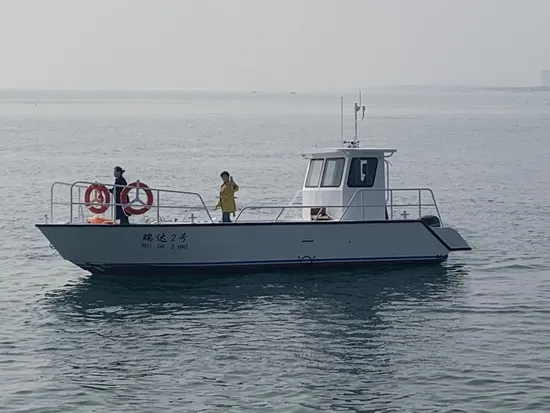

10m Aluminum Work and Fishing Boat
Product Description This boat is a high-speed deck boat made of all-aluminum alloy with a knuckle angle, and the designed navigation area is the coastal navigation area operation restriction, that is, sailing in the sea area not more than 20n mile from the shore. This boat is mainly used for port service and water gauge measurement for outer ships.
Passenger quota There are 6 passengers on this boat, including 5 crew members and 1 crew member.
speed The boat can reach a speed of 26kn when sailing in still water with the maximum continuous propulsion power under full load and displacement. According to rule 1.1.5.1, ships with a maximum speed of V≥7.19▽0.1667=9.54kn and V≥10kn are high-speed ships. The boat V=26kn>9.54kn, and>10kn, so this boat is a high-speed boat, and the driving seat is equipped with a safety belt. Propulsion device The boat uses two Suzuki DF150A outboard engines as the main power, each with a maximum power of 150HP (110kW).
Product Parameters
Length overall | 10.34m |
Maximum breadth | 2.88m |
Depth moulded | 1.10m |
Displacement | 5.3t |
Max speed | 24kn |
Full load speed | 18kn |
