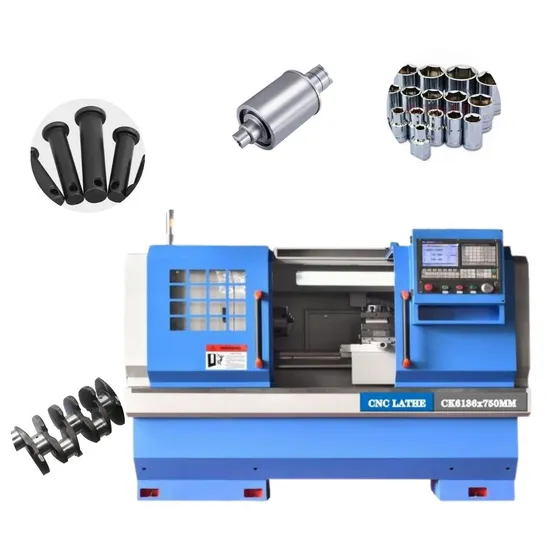

High Rigidity and Precision Model Ck6136 Flat Bed CNC Lathe Fabricado En China

High Rigidity and Precision Model Ck6136 Flat Bed CNC Lathe Fabricado En China

US$8,000.00-9,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
Ck6136
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Spindle Speed
150-2500rpm
Intergarate Weight
2300kg
Overall Dimention
1700/2050/2520/3050 X 1400 X 1680mm
Max. Swing Over Cross Slide
Φ360mm
Turret
4 Station
Transport Package
Wooden Case/Wooden Bracket/Nude Packing
Specification
1700/2050/2520/3050 x 1400 x 1680mm
Origin
Jiangsu
HS Code
845899000
Production Capacity
200 Set/Month

Product Description

Product Description

Product Feature:
1.High precision CNC flat bed lathe with hard rail, hardness around HRC50.
2.The bed ways are induction hardened.
3.Spindle with high precision bearings ensure the rigidity and precision.
4.Siemens,Fanus, Syntec, Fagor controller as optional.
5.Good quality grinding grade ball screw ensure positioning accuracy is more stable.
6.Monoblock cast iron base ensure high rigidity of the whole machine. Detailed Photos

Machine Type CK6136
Distance between centers 500mm/750mm/1000mm/1500mm
Max swing over bed Φ360mm
Max swing over cross slide Φ190mm
Width of bed 330mm
Spindle speed range 150-2500rpm
Spindle bore Φ60mm
Spindle nose A2-6
Taper of spindle bore MT6
Chuck diameter Φ200mm
X axis travel 250mm
Z axis travel 500mm/750mm/1000mm/1500mm
X/Z axis Rapid traverse 6/8 m/min
Turret Type Electrical turret
Tool station number 4
Tool holder 20x20mm
External diameter Φ55mm
Max travel 120mm
Taper of bore MT4
Spindle motor power 5.5KW
Coolant pump power 120W
Overall dimension(LxWxH) 1700/2050/2520/3050 x 1400 x 1680mm
Packing dimension(LxWxH) 1850/2250/2640/3200 x 1530 x 2020mm
Net/Gross weight(kg) 1350/1550 1500/1700 1700/1900 2100/2300

Workshop

FAQ

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1). 12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.
