FRP Cable Casing Pipes for Electric Power

FRP Cable Casing Pipes for Electric Power

US$4.00-10.00 1 Meter (MOQ)

Basic Info.

Model NO.
DN200
Yarn Structure
Textured Yarn
Surface Treatment
Sizing
Fiberglass Type
E-Glass
Color
Dark Red
IP Rating
IP68
Application
Underground
Material
Gfrp
Standard
GB50303-2015
Transport Package
Steel Frame
Specification
DN100-200MM
Trademark
HYX
Origin
China
HS Code
39172900
Production Capacity
120000 Meters

Product Description

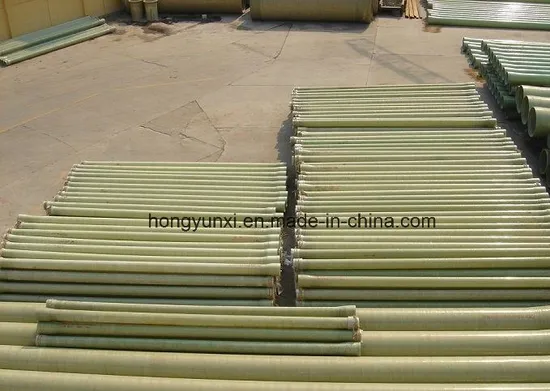

For FRP cable casing pipe, resin serves as the basis, reinforced by continuous fiber glass and its fabric, controlled by computer, forming by filament winding or pultrusion process.
Advantages of FRP cable casing pipe:
1.High strength,smooth inner surface(friction coefficient is small,the pass of the cable is convenient and smooth,no damage for the cable),light weight (density only 1/4 of the steel pipe'), convenient transportation, easy installation,no deformation.
2.No electric corrosion,nonmagnetic,suitable for the single-core cable,and no vortex occurs.
3.Good chemical resistant,especially resisting rain water or seawater.
4.Heat-resistant,it can be used in the condition of 120ºC for long time.
5.Insulation,chemical-resistant,rustless.Its service life is more than 50 years without maintenance, invest one time and benefit all life.
Purpose:
The FRP cable casing pipe is suitable for the laying of the cable be used for electric power and comminication at various occasions. Especially the cable which passes the traffic arteries,river,bridge special enviroment,it can represent the easy construction,high strength,advantages adequately.The FRP cable casing pipe is widely used for electric power,communication,traffice,infrastructure establishment of civil aviation airport etc.
LIST OF SIZE OF FRP CABLE CASING PIPE
DIAMETER Nominal thickness Inner diameter of socket end Depth of socket en Nominal length
t D1
DB-N DB-R DB-E DB-N DB-R DB-E S L
100 3 5 8 116 120 126 80 4000
125 5 - 8 145 - 151 100 4000
150 5 8 10 170 176 180 100 4000
175 8 10 12 201 205 209 100 4000
200 8 10 14 226 230 238 120 4000

Note: For the special sepcification shall be made according to the client's requirements.
Mechanical properties of FRP cable casing pipe
No. Item Unit Index
1 Bend strength MPa ≥135
2 Tensile strength MPa ≥120
3 Impact property - no cracks
4 Stiffness while the radial variety ratio is 10% MPa DB-N,DB-R,DB-E
≥1.2,≥2.4,≥5.0
5 Heat distortion temperature under bend load (Maximum bend positive stress is 1.81 MPa) ºC ≥130
6 Retention ratio of bend strength after soaked in water % ≥80
7 Barcol hardness - ≥35
8 Index of oxygen % ≥26
9 Sliding friction coefficient - ≤0.34
10 Heat resistance factor ºC▪m/w ≤4.8
