Laboratory Instrument Optical Research Machine Bds400-FL Inverted Fluorescence Microscope

Product Description

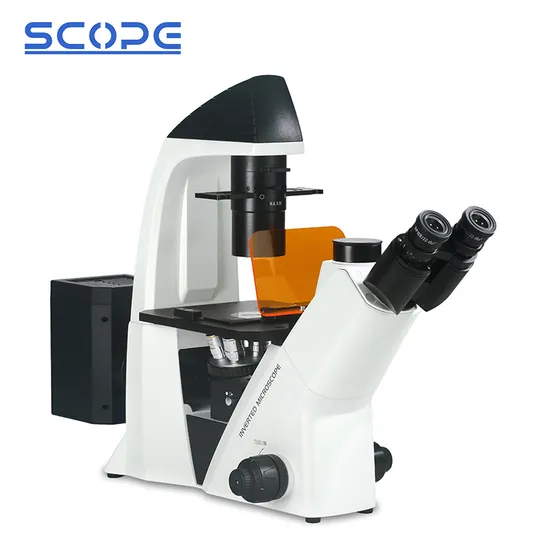

Product Description BDS400-FL Inverted Fluorescence Microscope
The BDS400-FL Inverted Fluorescence Microscope is our best-selling microscope. This product combines the BDS400 and the fluorescence device to get a professional-grade fluorescence microscope. There are various color filters for fluorescence microscopes, please select the corresponding color filter according to the excitation light band. The push-pull color filter switch used in the inverted fluorescence microscope can only install up to four sets of color filters, please choose carefully.
1. Combining the advantages of our BDS400, it satisfies phase contrast and bright field observation at the same time. 2. The fluorescence observation is very clear and the effect is very good, and a semi-apochromatic objective lens can be specially configured. 3. The installation and use of the product are very simple, and there are special video explanations.
Long working distance condenser N.A. 0.30,Working distance: 72mm
Working distance: 195mm (without condenser),available for extra high culture dish
Large size stage, convenient for research. Size: 240mm(X)× 210(Y)mm
Mechanical stage available for 96 holes plate. Moving range: 128mm(X)× 80(Y)mm
Large diameter quintuple nosepiece can be installed more objectives, more convenient for using.Light distribution (both): 100 : 0 (100% for eyepiece); 80 : 20 (80% for trinocular head and 20% for eyepiece)
Illumination of BDS Inverted Fluorescence Microscope
Regarding fluorescence light sources for fluorescence microscopes, there are two commonly available options: 100W mercury lamps and 5W LED lamps.
Under mercury light source, 1~4 groups of fluorescent filters can be added. There is no change in appearance.
For LED light sources, groups 1 to 3 of fluorescent filters use our new integrated fluorescent device, and 4 group uses the previous style, as shown in the figure below.
BDS400-FL Inverted Fluorescence Microscope Outfits

Item	Specification		Outfits
Eyepiece	WF10×/22mm		yes
LWD Infinity Plan Objectives	L Plan FL 4X/0.11	W.D.=12.1mm	O
	L Plan FL 10X/0.25	W.D.=10.3mm	O
	L Plan FL 20X/0.45	W.D.=5.8mm	O
	L Plan FL 40X/0.65	W.D.=5.1mm	O
LWD Infinity Plan Phase Contrast Objectives	L Plan FL PHP 4X/0.10 (Both for Bright Field & Phase Contrast)	W.D.=9.2mm	O
	L Plan FL PHP 10X/0.25 (Both for Bright Field & Phase Contrast)	W.D.=10.3mm	yes
	L Plan FL PHP 20X/0.45 (Both for Bright Field & Phase Contrast)	W.D.=5.8mm	yes
	L Plan FL PHP 40X/0.65 (Both for Bright Field & Phase Contrast)	W.D.=5.1mm	yes
Annular Spot	10×/20×/ 40×		yes
	4×		O
Seidentopf Trinocular Head	Inclined 45°, interpupilary distance: 48-76mm Light distribution (both): 100: 0(100% for eyepiece) 80:20 (80% for trinocular head, and 20% for eyepiece)		yes
Seidentopf Trinocular Head	Inclined 45°, interpupilary distance: 48-76mm Light distribution (both): 100: 0 and 0:100 (100% for eyepiece or 100% for trinocular head)		O
Nosepiece	Quintuple		yes
Mechanical Stage	Stage size: X×Y: 210×241mm, Round slide size: Φ110mm, Attached mechanical stage (available for 96 holes plate, moving range X×Y:128×80mm.)		yes
Culture Dish Holder	65mm		O
	54mm		yes
	35mm		O
	blood cell counter		O
	Glass Holder		O
	Universal Holder		O
Condenser	Long working distance, Quickly detachable, N.A.0.3, Working distance: 72mm (with condenser), 195mm(without condenser).		yes
Koehler Illumination	12V/30W (universal voltage: 100V~240V)		yes
	5WLED DC input (universal voltage:100V~240V)		O
Filter	Blue		yes
	Green		yes
	Amber /Grey		O
C-mount	1 X /0.5X /0.75X C-Mount (focus adjustable)		O
Epi Fluorescence Illumination	Epi fluorescence media unit, field diaphragm, center adjustable.		yes
	100W mercury lamp, 5WLED(input voltage:100V~240V)		yes
	B, G, V, UV fluorescence filters can be chosen		yes
Infinity Fluorescence objective	L Plan Fluor 10X/0.3	W.D.=10mm	O
	L Plan Fluor 20X/0.45	W.D.=6.6mm	O
	L Plan Fluor 40X/0.6	W.D.=3.5mm	O

Note: "yes"In Table Is Standard outfits, "O" Is Optional Accessories.
