US$1,150.00
|
1 Piece
(MOQ)
|
Basic Info.
Automatic Grade
Semiautomatic
Application
Belt, Home Textile, Headwear, Hat, Clothes, Bag, Shoes, Clothing Lace, Ribbon, Toys, Non-Woven
Rhinestone Type
China Rhinestone, Austrian Rhinestone, Czech Rhinestone, South Korean Rhinestone
Applicable Material
Polyester Knitted Fabric, Knitted Fabric, Denim, Velvet, Artificial Leather
Item Name
Ultrasonic Rhinestones Hot Fix Machine
Material
Rhinestone / Rhinestones / Strass
Dimension(L*W*H)
L650*W800*H1080mm
Product Type
Hotfix Rhinestone Applicator
Transport Package
Pack in Wooden Case
Origin
Guangdong China (Mainland)
Production Capacity
500 Sets/Month
Product Description

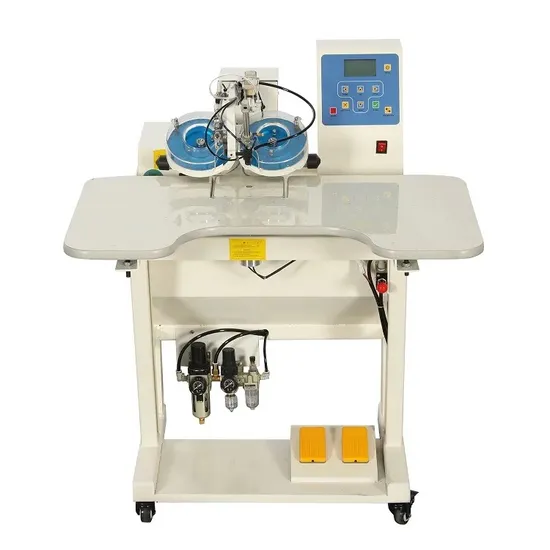

Hot Fix Rhinestone Transfer Machine Automatic Rhinestone Setting Machine Rhinestone Hotfix Machine
Technical Parameter of Automatic ultrasonic one head two color hot fix rhinestone machine:
Model | KT-RM01 | KT-RM02 |
Working speed | 280-350pc/min | 280-350pc/min |
Voltage | 220V/50HZ/1 phase | 220V/50HZ/1 phase |
Power | 200W | 200W |
Air pressure | 0.4-0.5MP | 0.4-0.5MP |
Welding head | 1 head single disc | 1 head double disc |
Working table size | 800*650mm | 800*650mm |
Size of rhinestones | 2.5mm-8mm(ss8#-ss34#) | 2.5mm-8mm(ss8#-ss34#) |
Dimensions | 640*760*1100mm | 770*720*1100mm |
Working theory:
Through unltrasonic heating principle, picking up rhinestones by Pneumatic control method. At the smae time move the material accordingly by hand after the red light locate, then the machine will fix rhinestones on the material quickly. Working speed can reach 220-260pcs rhinestones per minute, and will not fall off after being cleaned by water.
Characters:
1)Adopting ultrasound, this machine is able to hot fix the rhinestone in purpose materials immediately, such as Denim,Cotton,Jeans,Hemp fabric,Woolen,Synthetic Fiber,Silk,Knitwear,Synthetic Leather,Velvet etc. Especially suitable for the material that can't resist high temperature and easy to deform and discolor.
2) Main components specially imported from other countries, such as two five-way solenoid valve uses from south Korean, two two-way adopt Japan CKD, assuring superior quality and reliable usage.
3) Infrared positioning, precisely hot fix the rhinestone's position and very strong sticking effect
4) Five different size of suction nozzle: 10# 12# 16# 20# 30#
5) Able to work continuously 24 hours, high working efficiency.
Packing: Machine packing inside is plastic films and outside is fumigation wooden case.
Our wooden case is very strong,it can bear long time shipping on the sea.
And machine with preservative film, it can stop the salt sea water enter into the machine and make the machine corrosion. Delivery: For machines are big and heavy parcel, and different country with different delivery cost,so we suggest below delivery solution:
1. Over 1CBM or 100KG, we suggest send by Sea.
2. Below 1CBM or 100KG, we suggest send by Air.
3. Below 0.5CBM or 50KG, we suggest send by Express.
The price show on our website just the machine EXW price, please contact us before you place order.
