Automatic Rubber Belt Sheet Foaming Press EVA PVC Float Vulcanizing Machine

Automatic Rubber Belt Sheet Foaming Press EVA PVC Float Vulcanizing Machine

US$6,000.00-15,000.00 1 Set (MOQ)

Basic Info.

Model NO.
XLB-D900x1200x4
Customized
Customized
Automatic Grade
Automatic
Structure
Vertical
Name
Rubber Vulcanizing Press
Color
as Customers′ Requirements
Motor Power
8kw
Working Layers
1, 2, 4, as Customers′ Requirements
Man Power
1 Person for 1 Set of Rubber Vulcanizing Press
Outline Dimension
2000× 1860× 2500
Delivery Time
Within 30 Working Days After Receiving The Deposit
Transport Package
Standard Export Packing
Specification
weight: about 5200kgs
Trademark
BORIA
Origin
Qingdao, China
HS Code
8477800000
Production Capacity
50 Sets Per Month

Packaging & Delivery

Package Size
150.00cm * 100.00cm * 250.00cm
Package Gross Weight
1300.000kg

Product Description

Company's Introduction:
1. 23 years on rubber sheet,belt,tiles,silicone O-ring seals,plastic products production line direct manufacturer and exporter.
2. Delivery within 35 days.
3. Safety wood or plywood crates packing.
4. With all the certificate abroad and domestic, which can fully support your purchasing overseas.
5. Playing an important role and selling well in Chinese domestic market. Sales increasing year by year.
6. Sell to over 80 countries overseas.
7. Provide the whole rubber sheet/belt mixing production line which includes rubber sheet cutting machine→kneader/banbury mixer machine→hoist machine→open rubber mixing machine→rubber sheet cooling machine→rubber sheet.
8. Best service as you required.
9.100% original.
10. One-stop rubber machinery solution in Qingdao Boria.
Characteristic
High press in unit area. Automatic control, electrical control and PLC control is optional. Working layes/floors can be designed as request. Technical Parameters
We can make different size vulcanizing machine according to customer's needs
Model XLB-D900x1200x5rubber Foam vulcanizing machine
Total pressure 300T (clamping Force:3.0MN)
Heating plate specefications 900/1200X1200(mm)
Floor 5/4/3/2 layer
Plunger Diameter 600mm
Diatance Between plates 150mm
Max.Hydraulic Pressure 24Mpa
Max.Pump Power 60KW
Type Frame
Operation Way Automatic
Heating way Electric
Weight 13T

Product Overveiew

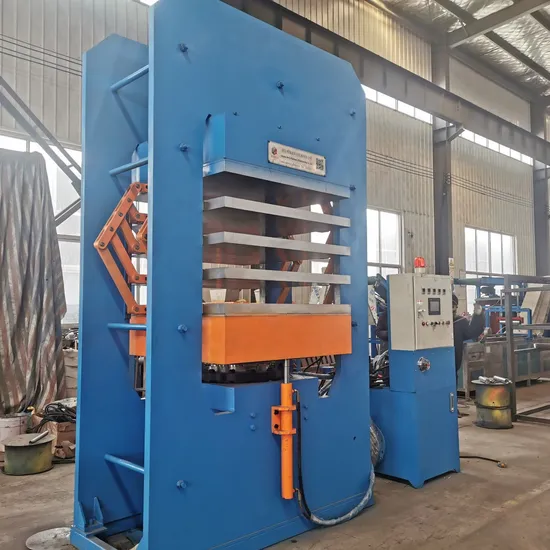

300T eva foaming press machine
eva foaming press machine features and advantages
aterial of steel plate Weldment of frame Plunger Heating way &precision
temperature control
Hydraulic system
(PLC control)
Q235,more thicker
and smooth
Welded together as a whole part ,
stewing fire treatment after weldment
After polishing,grinding treatment
and resist compression test to
make the surface smooth and anti-abrasion
Steam ,oil or electric
temperature:0-300ºC
plate temperature tolerance:≤1ºC
Stable ,reliable and quality

eva foaming press machine application
Vulcanizing machine is suitable for a variety of vulcanized rubber products, a variety of advanced thermoset compression molding pressing equipment.
1. Rubber products processing line
(tyres,shoes,handbags,latex gloves,sport balls,mousepad,conveyors,rubber sheets&tiles,
rubber band,seals,insulation boards,etc.,)
2. Plastic runway and artificial grass production line
This machine is mainly used for vulcanizing flat type tape and plastic sheet,just as conveyor belts and rubbertiles.
This machine is mainly used for the production of various kinds of EVA foam slippers, foam board, rubber, bags lining,
insulating material, sports protective material, diving suits, jackets sponges thermoset foam rubber and plastic products of special equipment.
We take slipper soles as an example:

Flow chart of rubber vulcanizing machine
Mixing: Pour the rubber granules and coloring pigment into the rubber mixing machine, with some adhesive, then begin
stiring. It will take 4-6 mins to be done.
Weighing: weigh the stirred rubber powder according to the floor tiles thickness you want to make.
Paving and Pressing: pour the needed quantity rubber powder into the mould, and float it by trowel. On the bottom ,can
be with some
coarse and black rubber powder, but on the surface should be with fine and colored powder, it can ensure your tiles quality.
Vulcanization Moulding: Put the mould on the vulcanizer layer, generally , it take 3/8 mins to make the tiles,time difference
based
on the thickness of the tiles you ready to make. After finished, it will automaticlly separated, then put it somewhere to dry.
Inspecting: Inspect the tiles' surface . If no aberration, no flaw, then it is of high quality products.
related plate rubber vulcanizing machine
rubber vulcanizing machine pressure : 0.25MN-16MN three heating types : electric heating,oil heating and steam heating three structure : column structure,frame structure and E-type ways of operation : manual or automatic application : mainly used for vulcanizing and pressing of rubber or plastic products
FAQ:
1.Q:Are you a factory or trading company?
A:We are a professional manufacturer and running our own factory for more than 10 years .
2.Q:Where is your factory?How can I visit ?
A:Our factory located in qingdao city.You can fly to QINGDAO LIUTING airport,then we can pick you up to our factory for your visiting.We are looking forward to your visiting.
3.Q:How does your factory control the quality of machines and after sales service?
A:Our machines have passed CE,ISO,SGS certification,with best quality and reasonable price.All our machines have 1 year guarantee, will be provided for a lifetime maintenance.
4.What's your payment term?
A:Common is 30% deposit by T/T,the balance paid against shipping documents
Or L/C at sight.
5.Q:Can you design new product for us?
A:we have a professional development team that can make new products according to your requirements.
6. Delivery time of the rubber machines?
This is specially designed machine according to your specific requirement.
From engineer designing to production completion, it needs about 25 to 35 days.

7. What does your factory do regarding quality control?
We pay much more attention to the quality controlling from the very beginning to the end of production.
Every machine will be fully assembled and carefully tested before shipment.

8. What's the machine quality guarantee?
we provide one year warrenty for our machines.We choose the world's famous brand of components to keep our machine in perfect working condition.

9. Are you able to provide the installation and commissioning of machines overseas? How long will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation.
Small machine usually takes within 2~3 days.
Big plant usually takes about 30 days.

10. How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order.
The core of our company culture is innovation, quality, integrity and efficiency. Also we have had much good cooperation with world famous rubber production manufacturers. If you come to our factory, we can show you're the user around us.

Packing

Equipment painting completed before delivery, and then wrapped with stretch film, to protect the painting surface, we use wooden packaging outside.The key parts of the machine, such as electronic control box, will be wrapped by shockproof packaging materials, and then packed in wooden cases.
There are 15 experienced engineers and 108 skilled workers in our company, guaranteeing delivery on time as stipulated in the contract. At the same time, the company established a long-term cooperative relation with Cosco, for ensuring the goods arriving port on time.
Our Services

Our engineers can design target machines for customers and send them the drawing to confirm. We are always on the side of saving your cost.
In the process of production, we will take photos and send to customers for their track the progress.
Documents such as packing list, commercial invoice, and bill of lading etc. will be sent after the delivery.
We could supply free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing.
We supply overseas engineer service and do our best to teach your workers operate the machine themselves.
In addition
Our machineries have exported to America, Mexico, India, Vietnam, South Africa, Singapore, Malaysia, Indonisia, Australia, Sri Lanka and many other countries.
If you interested in our products mentioned above. Kindly let us know by return email. Then I will supply you with further information. Meanwhile, welcome to visit our factory!
