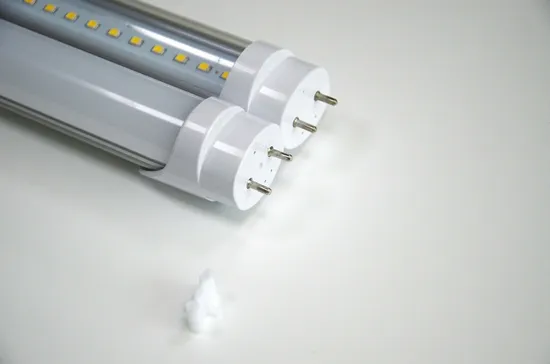

Hot Sale LED Lighting UL/Ce/RoHS T8 LED Tube 8W/12W/15W/16W/18W/20W/22W/36W/40W 1500mm/120mm/90mm/60mm

Product Description

Product Description
Universal Compatibility:
UL cUL DLC Type A + Type B, compatible with electronic ballast, directly replace traditional fluorescent lamps.
Dual model: Plug and play T8 LED tube (Type A) , Bypass T8 LED tube (Type B)
Also It work directly from 100-277VAC, connect to electricity directly.
The universal compatible tube could be compatible with ballast, power one end and power tow end at the same time. it can be installed it in traditional fixture directly, saving labour cost. Our LED tube could be compatible with different ballast, we sorted out ballast brand, which already tested!
Marks:
Compatible tube---it's universal compatible P1, P2 and ballast at the same time.
P1---Power one end without ballast.
P2---Power two ends with ballast or without ballast.
Product Advantages
Ul Cul Dlc4.2 Universal Compatible Led T8 Tube.
It Can Be Installed It in Traditional Fixture Directly, Saving Labour Cost.
The Universal Compatible Tube Could Be Compatible With Ballast, Power One End and Power Tow End at The Same Time.
130lm/W, Could Apply for Government Rebate.
Easy Installation. Technical Specifications
LED Type: SMD2835 with LM80 report
High efficiency, up to 130 lm/W
Colour (CCT): 3000k, 4000K, 5000K, 6000K
High power factor ≥0.9, CRI: Ra>80, THD<20%
Size: 2ft 4ft 5ft 6ft 8ft
Power: 8W 12W 16W 20W 22W 27W 36W 40W
Input Voltage: AC100~277V
Base: G13 Fa8 R17D
Cover: Frosted & Clear
End cap: Fixed
Material: Aluminum +PC
Structure: 1/2Aluminum, 1/2 PC cover
Connection: Power 1 end or Power 2 end or compatible ballast
Aluminum base for good heat dissipation of LEDs
Certificates: UL, cUL, DLC4.2, TUV, GS, CB, SAA, FCC, CE, RoHS, UL No.: E491981, E484482
Warranty: 5 years

Installation Steps

Application
1. Offices, meeting room
2. Shopping malls. supermarkets
3. Library, school
4. Exhibition Gallery
5. Factories, airport
6. Closet, hotel
7. Recreation application, railway station, car park
User Manual:
Switch off power of the mains supply or respectively of the connection lead before doing any works.
The complete installation must be done by an electrical expert who is familiar with the valid directives.
Quaity Control:
Stability TEST: make sure 100% of the lamps be aging test at least 48hours
Lighting TEST: make sure 100% of the lamps be lighted before packing
Drop TEST: make sure every single light have been well protected by box
