Basic Info.
Power Type
Electric Power
Braking Mode
Electromagnetic Brake
Steering Mode
Electronic Steering
Controller
USA Curtis Controller
Battery
Lithium or Lead Acid Battery
Wheels
Polyurethane Wheels
Mast
Wide-Angle View, High-Strength Shock Absorption
Transport Package
Provided
Production Capacity
5000sets/Year
Product Description

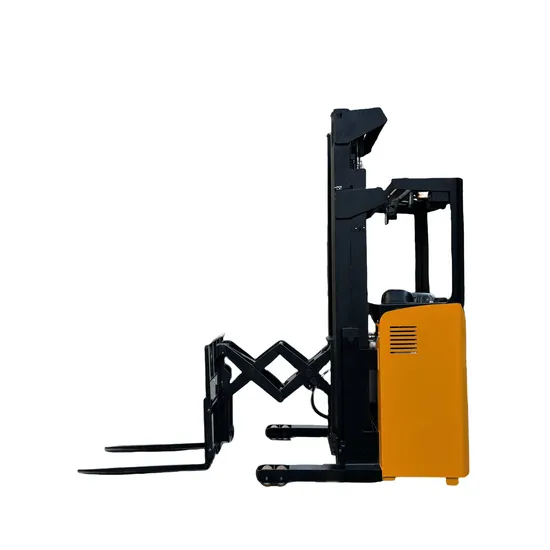

Product DescriptionThe electric reach double-deep scissor forklift is an innovative material handling solution that combines the features of a reach truck with a scissor fork mechanism. Designed for efficient operations in double-deep racking systems, its dual-deep reach capability allows it to access the second pallet position without moving the truck. This design maximizes warehouse space utilization and improves operational efficiency.
Models | | CQD16J |
Drive mode | | Electric |
Driving Models | | Seated-on type |
Rated load | Q(kg) | 1600 |
Center distance of load | C(mm) | 500 |
Front suspension | x(mm) | 280 |
Wheelbase | y(mm) | 1670 |
Vehicle weight (including batteries) | kg | 4150 |
No-load axle load, drive side/load-bearing side | kg | 2630/1520 |
Full axle load, fork forward, drive side/bearing side | kg | 1200/4550 |
Full axle load, fork recovery, drive side/bearing side | kg | 2405/3345 |
Type of tire | | Polyurethane |
Tire size, bearing side | mm | φ130x85 |
Tire dimensions, drive side | mm | φ343x135 |
Tire dimensions, drive side | mm | φ100x50 |
Number of wheels, front/rear (x = drive wheels) | | 4/1X-2 |
Track Width, Drive Side | mm | 960 |
Track Width, Load Bearing Side | mm | 1407 |
The fork tilts forward/backward | ° | 3/5. |
Mast closed height | h1(mm) | 2980 |
Free rise height | h2(mm) | 2050 |
Elevation | h3(mm) | 6000 |
The maximum height of the mast when lifting (including the shelf) | h4(mm) | 6970 |
Height of roof support frame | h6(mm) | 2190 |
Height of station board | h7(mm) | 316 |
Height of the outrigger from the ground | h8(mm) | 130 |
Vehicle length | L1(mm) | 2705 |
Vehicle width | b1/b2 | 1270/1520 |
Fork size | l/e/s | 1070/122/40 |
Rack width (add bolt) | b3(mm) | 850 |
Outside distance of forks | b5(mm) | 266-720 |
Inner distance of outrigger leg | b4(mm) | 1280 |
Forward distance | L4(mm) | 1020 |
Ground clearance of mast | mm | 130 |
Vehicle ground clearance | m(mm) | 50 |
Stack channel width (pallet 1200x1000)1200 cross-fork direction | Ast(mm) | 3085 |
Stack channel width (pallet 1200x800)1200 along fork direction | Ast(mm) | 3150 |
Turn radius | Wa(mm) | 1950 |
Speed, full/empty | km/h | 7.8/8 |
Lifting speed, full/no load | mm/s | 140/280 |
Rate of descent, full/no load | mm/s | 300/150 |
Maximum climbing capacity, full/no load (S2-5MIN) | % | 6 |
Braking mode | Electromagnetic brake |
Drive Motor Power (S2-60MIN) | kw | 6.5(AC) |
Lift motor power | kw | 8.6 |
Battery, voltage/rated capacity | V/Ah | 48/400 |
Weight of battery | kg | 655 |
Steering mode | Electronic steering |
Battery replacement method | Side pull |
PRODUCT FEATURESHigh Lifting Capacity with Stable Operations
Equipped with a high lifting height, it is suitable for multi-level racking operations. The scissor mechanism ensures fork stability, maintaining balanced loads during elevated stacking to enhance safety.
Eco-Friendly and Fully Electric Operation
Powered by efficient lithium or lead-acid batteries, it offers low energy consumption, zero emissions, and low noise, making it ideal for modern green warehousing and industrial environments. Smart Controls and Multiple Safety Features
Advanced safety systems include automatic speed limits, fork position correction, and overload protection. These features enhance precision handling and ensure the safety of both operators and goods. Flexible Maneuverability for Complex Environments
Electric drive technology makes the stacker emission-free, meeting environmental standards. Its low noise levels make it suitable for environments with strict noise control requirements.Main ProductsOur product line currently encompasses nine major series more than 100 varieties, including fully electric pallet stackers, fully electric pallet trucks, fully electric reach trucks (stand-up and sit-down types), electric tow tractors, electric order pickers, narrow aisle forklifts, specialized forklifts, AGVs, and unmanned aisle stackers. We offer material handling solutions ranging from 500KG to 100,000KG, achieving both product diversification and large-scale production.Company ProfileAnhui Younglift Intelligent Equipment Co., Ltd., established in 2005, is a High-tech enterprise specializing in the research, design, manufacturing, and providing material handling solutions for the logistics and transportation industry. Recognized as a "specializing Innovative" and "Technological Innovation" enterprise, we are committed to excellence in our field.
NON-STANDARD CUSTOMIZATION, AVAILABLE SOLUTIONS
With the design concept of "safety, durability and comfort", we provide "non-standard customized" material handling equipment.
The products involve more than 100 varieties in 9 series, including all-electric pallet stacker, all-electric pallet truck, all-electric forward forklift (standing and seat type), electric traction trailer, electric lift pickup truck and narrow lane forklift, special forklift, AGV and unmanned lane stacker. , to provide customers with 500kg-100000kg material handling solutions.
Certifications
Up to now, the company has obtained the specialized Equipment Production License of the People's Republic of China, ISO E1/S1/Q1 certification, production standardization certificates, and the High-Tech Enterprise Certificate.
Additionally, we have been recognized with awards such as "Lu'an High-Quality Products," "Anhui Province Trademark Brand Demonstration Enterprise," "Anhui Province Innovative Enterprise," and the "Anhui Province specialized and Innovative Enterprise Certificate."Exhibition & Customers
Currently, our sales and service network covers all regions across China, and our products are exported to more than 40 countries, such as North America, the United States, Mexico, Canada, South America, Brazil, Chile, European countries, Russia, the United Kingdom, Germany, Italy, South Korea , Australia, Singapore, South Africa, and so on.Our Partners
