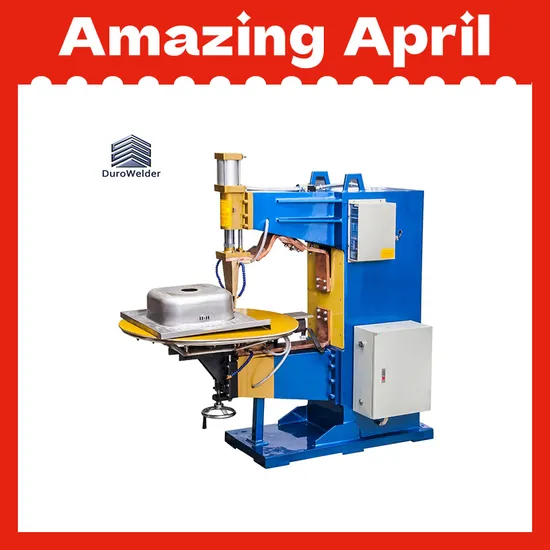

Automatic Rolling Tank Sink Barn Steel Plate Seam Welding Machine
Basic Info.
Model NO.
FN-50KVA,FN-75KVA,FN-100KVA,FN-150KVA,FN-200KVA
Style
Vertical
Frequency Range
Intermediate Frequency
Electric Current
AC
Type
Seam Welders
Current
Alternating Current
Model
Fn Series
Application
Hardware Industries
Transport Package
Plywood Box
Specification
CCC, ISO, CE
Trademark
DuroWelder
Origin
USA and China
HS Code
8515219000
Production Capacity
100sets/Year
Product Description
Machinery Characteristics:1. There is two standard models: Transversal Seam Welding Model and Longitudinal Seam Welding Model.
2. Also one machine can be used as both transversal seam welding and longitudinal seam welding, only need to change the direction of upper seam wheel head and change the lower welding head and welding arm within minutes.
3. Driven one head and free the other head. The two seam wheels have the same tangential speed.
4. Widely used in hardware, appliances, automotive, manufacturing pots, can, fuel tank, tank producing and other metal manufacturing and processing industries.
Main Technical Parameter
| Item Model | Rated Capacity | Rated Primary Voltage | Rated Frequency | Maximum Short Current | Electrode Stroke | Welding Speed | Electrode Pressure | Motor Power Source | Motor Power | Cooling Water Flow | Weight |
| KVA | V | Hz | A | mm | M/min | KN | V | W | L/min | Kg | |
| FN-50 | 50 | 380 | 50/60 | 16000 | 50 | 0.6-4 | 2.5 | 3-380V | 90 | 30 | 500 |
| FN-75 | 75 | 380 | 50/60 | 19000 | 50 | 0.6-4 | 3.9 | 3-380V | 150 | 30 | 650 |
| FN-100 | 100 | 380 | 50/60 | 22000 | 50 | 0.6-4 | 4.7 | 3-380V | 150 | 30 | 880 |
| FN-150 | 150 | 380 | 50/60 | 29000 | 50 | 0.6-4 | 6.1 | 3-380V | 150 | 30 | 1050 |
| FN-200 | 200 | 380 | 50/60 | 35000 | 50 | 0.6-4 | 6.1 | 3-380V | 150 | 30 | 1250 |
| If you want to know more information or have any questions, please contact us without hesitation! |
| Sales rep:Mr.Kyle Xu |
