HD 2.4G Digital Wireless Tower Crane Camera 30X and 50X Zoom Crane Camera

Product Description

Product Description
The tower crane 30x zoom camera system is a high-performance video surveillance device designed specifically for high-altitude tower crane operations. The system uses high-definition cameras and 30x optical zoom technology to provide clear and accurate construction site monitoring images in real time, greatly improving operational safety and management efficiency.
Product Function Main functions and features
1. 30x optical zoom
2. Supports ultra-long-distance clear imaging, capable of capturing details of the construction site.
Even at high altitude or long distance, it is easy to locate key areas.
High-definition image quality
3. Equipped with high-definition 1080P or 4K resolution lens to ensure clear and sharp images.
Supports day and night monitoring, and can still output high-quality images in low-light environments.
360° all-round monitoring
4..With pan-tilt rotation function, it can achieve **horizontal 360° and vertical 90°** monitoring, covering the entire construction area.
Supports automatic cruise function, and monitors different areas at fixed times.
Anti-shake and anti-seismic design
5. Designed for high-altitude operations of tower cranes, it effectively resists the influence of wind and vibration and keeps the picture stable.
Sturdy shell, dustproof and waterproof design, suitable for various harsh construction environments (IP66 protection level).
Real-time remote monitoring
6. Supports wireless transmission and network connection, and can watch the monitoring screen in real time through mobile phones, tablets or computers.
Convenient for managers to remotely command and dispatch, and improve on-site management efficiency.
Safety warning function
7. Equipped with intelligent detection technology, it can identify abnormal situations and issue alarms.
Provide voice intercom function to facilitate remote communication.
Product Parameters
1. General specifications of the monitor

DC Characteristics
Power supply voltage (POWER SUPPLY)	+9V~+45V
Current Consumption	130mA(Typ.)@12V
Working Environment (Environmental Specification)
Operating Temperature	-20 ~ + 70 ºC
Storing Temperature	-20~+ 80 °C
Operating humidity	85%RH
Radio Frequency (RF)
Frequency coverage (Operating frequency range Cover)	2.4GHz~2.4835GHz
Output Power	2 4 ± 1dBm@MaximumPower Setting
Modulation Type	16QAM/QPSK/BPSK
RX Sensitivity	-78dBm(Typ.)@12MHz,16QAM BER<1E-3 -86dBm(Typ.)@12MHz QPSK BER<1E-3
RF Bit Rate	4MHz BER<1E-3
Spread Spectrum	FHSS ( Adaptive Frequency Hopping )
Video attribute
Resolution	1024*600 (50P RGB interface)
Decompression method ( Coding)	H.264
Outline
Size	236*170*29.5 mm (without sunshade)

2. Zoom Camera General Specifications

DC Characteristics
Power supply voltage (POWER SUPPLY)	+`12V~+36V
Current Consumption	500mA(Typ.)@12V
Working Environment (Environmental Specification)
Operating Temperature	-20 ~ + 60 ºC
Storing Temperature	-20~+ 80 °C
Operating humidity	85%RH
Radio Frequency (RF)
frequency range Cover	2.4GHz~2.4835GHz
Output Power	2 4 ± 1dBm@MaximumPower Setting
Modulation Type	16QAM/QPSK/BPSK
RX Sensitivity	-78dBm(Typ.)@12MHz,16QAM BER<1E-3 -86dBm(Typ.)@12MHz QPSK BER<1E-3
RF Bit Rate	4MHz BER<1E-3
Spread Spectrum	FHSS ( Adaptive Frequency Hopping )
Video attribute
Sensor	IMX307
Lens size (Image format)	1/2.8 ''
focal length	4.7~141 ± 5%mm
Aperture value	F1.5-F4.0
Minimum object distance	2-3m
Optical distortion	-10.3%~1.85%(1/2.7 '' )
Horizontal field of view	60.5 ~ 2.3 degrees ( wide angle - telephoto )
Outline

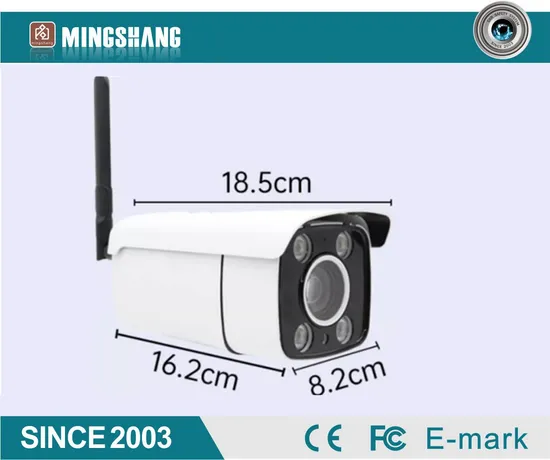

Size	185*82*82 mm
