Poultry Food Making Machine Animal Food Making Machine

Poultry Food Making Machine Animal Food Making Machine

Negotiable 1 Piece (MOQ)

Basic Info.

Model NO.
WSJY-40
Processing Object
Animal-Derived Feed
Processing Technics
Crushing-before-Mixing
Screen Mesh
With Screen Mesh
Grinding Equipment Type
Feed Hammer Mill
Pellet Mill Type
Flat Die Pelletizer
Bulking Machine Type
Single Screw Bulking Machine
Expanding Method
Wet Expansion
Condition
New
Applicable Materials Shape
Powder
Pellet Size
0.5-13mm
Working Principle
Single Extruder
Weight
380kg
Size
2.6 Cbm
Final Products
Fish Feed, Pet Food, Bird Feed
Transport Package
Wooden Cases
Specification
2 cubic
Trademark
WS
Origin
Henan
Production Capacity
80-600kg\H

Product Description

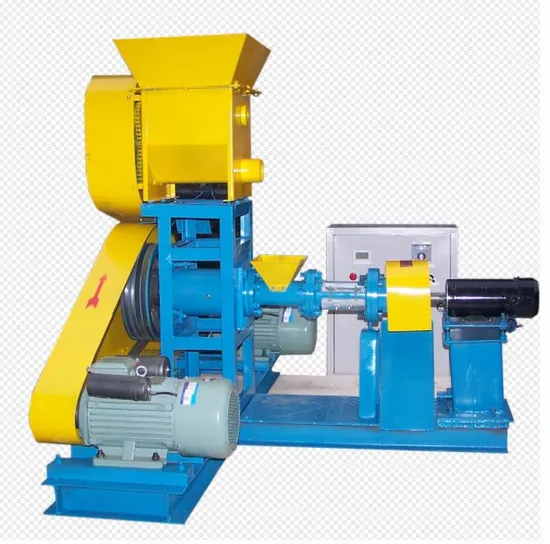

Introduction to poultry food-making machine:
After the material is sent into the feeding device, it will be pressed by the screw shaft with high pressure and temperature which makes the raw material fully cooked and sterilized. Then the pressed material will be formed into pellets by shaping the mold. You can change different molds to make pellets with different diameters. After that, a cutting device will cut the formed pellets into different lengths as required.
Application of Feed Pellet Mill:
Multi-purpose pet, fish, and shrimp puffed feed machine This equipment uses corn, soybean (bean cake) animal scraps, etc. as raw materials. It can be puffed to produce different granules with novel shapes, rich taste and delicate texture. It is suitable for dogs and feeds with different pet flavors for cats, fish, birds, rabbits, shrimps, dogs, cats, minks, foxes, etc. Suitable for professional farmers and small and medium-sized feed mills. When the feed formula is the same, the shape is neat and smooth, the water surface does not sink for more than 12 hours, does not pollute the water source, and sterilizes to reduce fish diseases.
The Feather of the Machine:
This machine is a pellet feed extrusion equipment. It can produce a variety of flower shapes, and molds can be customized according to requirements. The product outlet is equipped with a variable frequency speed-adjustable rotary cutting device. The blade rotation speed can be adjusted arbitrarily to control the speed and length of cutting. This product has a novel design, high output, and stable operation. The main components are made of special alloy materials and refined through heat treatment. It has the characteristics of high wear resistance and long service life.
Parameter specification:
Model WSJY-40 WSJY- 50 WSJY-60 WSJY-70 WSJY-80 WSJY-90 WSJY-120 WSJY-135 WSJY-160 WSJY-200
Capacity --- kg/h 30-40 60-80 120-150 180-250 300-350 400-450 500-700 800-1000 1200-1500 1800-2000
Pelleting Diameter--- mm 1-8 1-8 1 -10 1-10 1 -10 1 -10 1-10 1 -12 1-12 1-12
Motor Power--- kw 5 7.5 15 18.5 22 37 55 75 90 132
Cutting Power--- w 400 400 400 400 1100 1500 2200 2200 2200 3000
Screw Rod Diameter-- mm 40 50 60 70 80 90 120 135 160 200
Cooking degree >95% >95% >95% >95% >95% >95% >95% >95% >95% >95%
Size(m) 1.4*1.03*1.1 1.45*1.08*1.25 1.46*1.14*1.25 1.6*1.4*1.35 1.6*1.4*1.35 2.1*1.45*1.35 2.1*1.45*1.35 2.55*2.05*1.65 2.9*2.65*1.8 3*2.85*1.9
Weight(kg) 260 350 355 580 700 950 1700 1900 3600 4300

FAQ:
A. What is the material for making fish feed pellets?
-. There is a wide selection of materials. corn flour, wheat meal, bone meal, meat meal, fish meal, etc. All can be sued for making fish feed pellets. Please note that the size should be Crushed to 60-80 mesh.
B. What is the size of the final fish feed pellet?
- the fish feed pellet is 1-12mm size adjustable by using different molds, you can choose the size you prefer.
The fish feed pellet machine is a single machine or a complete production line?
-, It depends on your choice. the machine can work separately, also in a production line, from material crushing to final pellet packing. You can choose it freely.
