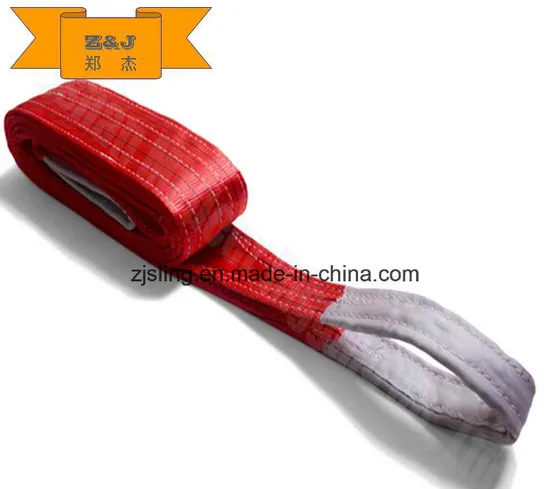

Polyester Lift Webbing Sling 5t X 1m (can be customized)

Product Description

Stock No.	Color	WLL	SWL WLL(t) M CC							Double multi-set SWL(t)
			vertical	choke	<7º	a>7º a<45º	a>45º a<60º	a<45º	a>45º a<60º	a<45º	a<45º	a<60º	a>45º a<60º
			M=1.0	M=0.8	M=2.0	M=1.4	M=1.0	M=0.7	M=0.5	M=1.4	M=1.12	M=1.0	M=0.8
EE010	Viole	1T	1.0	0.8	2.0	1.4	1.0	0.7	0.5	1.4	1.1	1.0	0.8
EE020	Green	2T	2.0	1.6	4.0	2.8	2.0	1.4	1.0	2.8	2.2	2.0	1.6
EE030	Yellow	3T	3.0	2.4	6.0	4.2	3.0	2.1	1.5	4.2	3.4	3.0	2.4
EE040	Grey	4T	4.0	3.2	8.0	5.6	4.0	2.8	2.0	5.6	4.5	4.0	3.2
EE050	Red	5T	5.0	4.0	10.0	7.0	5.0	3.5	2.5	7.0	5.6	5.0	4.0
EE060	Brown	6T	6.0	4.8	12.0	8.4	6.0	4.2	3.0	8.4	6.7	6.0	4.8
EE080	Blue	8T	8.0	6.4	16.0	11.2	8.0	5.6	4.0	11.2	9.0	8.0	6.4
EE100	Orange	10T	10.0	8.0	20.0	14.0	10.0	7.0	5.0	14.0	11.2	10.0	8.0
EE150	Orange	15T	15.0	12.0	30.0	21.0	15.0	10.5	7.5	21.0	16.8	15.0	12.0
EE200	Orange	20T	20.0	16.0	40.0	28.0	20.0	14.0	10.0	28.0	22.4	20.0	16.0
EE300	Orange	30T	30.0	24.0	60.0	42.0	30.0	21.0	15.0	42.0	33.6	30.0	24.0
Comply wit ISO4878 EN1492-1:2000 JB/T8521.1
Width of duplex webbing sling or single endless sling for defferent safety factor
S.F		5:1			6:1			7:1			8:1
WLL		Width		M.B.S	Width		M.B.S	Width		M.B.S	Width		M.B.S
1t		25mm		5t	25/38mm		6t	30/50mm		7t	50mm		8t
2t		50mm		10t	50mm		12t	60mm		14t	65mm		16t
3t		75mm		15t	75mm		18t	90mm		21t	95mm		24t
4t		100mm		20t	100mm		24t	120mm		28t	120mm		32t
5t		125mm		45t	100/125mm		30t	150mm		35t	150mm		40t
6t		150mm		30t	100/150mm		36t	180mm		42t	180mm		48t
8t		200mm		40t	100/200mm		48t	240mm		56t	240mm		64t
10t		250mm		50t	150/250mm		60t	300mm		70t	300mm		80t

Technical specifications:
-Colour coded according to EN 1492-2 & AS 4497 & NBR 15637-1 or White
-Safety Factor 8:1, 7:1, 6:1, 5:1
-Capacity stripes; Each stripe is equal to 1 tonne capacity.
-Extra strong PU-impregnated webbing of the sleeve, which does not allow dirt to enter.
-Each sling is packed in plastic with CE declaration of conformity or Test Certificate.
Properity : -Low elongation. -Extremely wear-resistant. -According to standard 2006/42/EC
-Options:
The safe working load is clearly printed on the sleeve.
Notes:
1, Always protect webbing from hot surfaces, sharp edges and acids
2, Don't use if webbing is torn or frayed or if hardware is damaged
3, Observe working load limit (WLL) as started to determine quantity of strap assemblies
Necessary for quotation:
1. Quantity you need
2. WLL ( Working limited load)
3. Length
4. Safety factor
5. Type
6. Other special requirement
Warmly welcome to enquire all the products that you need which not listed in our showroom, your safification is the best return to us. Z&J is your trust and realiable partner. wish to cooperate with you to make win-win.
