Medical Gas Equipment Surgeon Pendant Single-Arm Ceiling Mounted Anesthesia Pendant

Product Description

Product Description

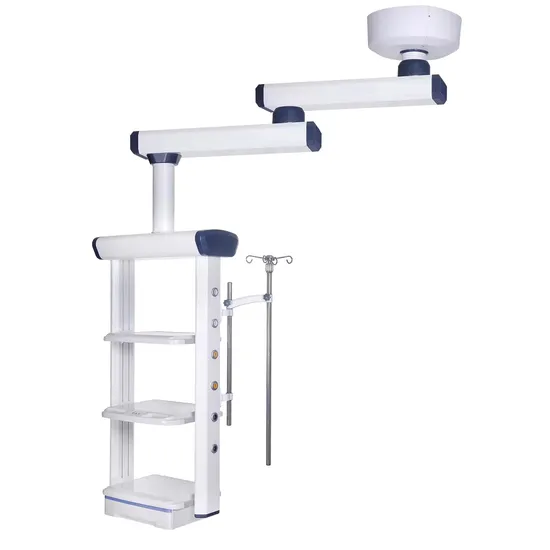

Single arm crane (THR-MP580)
1.THR-MP580 single arm crane tower
2.Integrated platform for surgical/monitoring instruments
3.340°space arbitrary positioning
4.Integrates medical gas source, power supply and information terminal in one
5.Suitable for common surgical equipment configuration needs

Detailed description:
1.THR-MP580 single-arm surgical pendant is mainly used to place monitors, electrosurgical units, instruments, etc. required for general surgery, and to provide medical gas and power output terminals required for surgery.
2.The hanging tower is mainly composed of a crane arm, a rotating arm, a gas-electric box, an instrument tray, and drawers.
3.The rotating arm and gas-electric box can be rotated and locked freely within the range of 340°, each joint can rotate flexibly, and the mechanical device can be locked reliably and moved flexibly.
4.Equipped with various pluggable self-sealing quick-connect gas terminals, convenient and reliable operation, good sealing, and can meet the needs of surgery.
Main specification:

THR-MP580 rotating arm radius	1000mm
Rotating angle of rotating arm	≥330°
Maximum rotating angle of gas-electric box	≥330°
Gas-electric box	1 piece (length 1000mm)
Rotating Brake Type	Air brake,work pressure:0.4Mpa
Gas terminals	3 pcs, including oxygen 1 piece, medical air 1 piece, vacuum Suction 1 piece (optional on user' demand)
Power outlet	6 pcs,including 2 pcs of information terminals(optional)
Instrument tray	three layers(first layer with drawer )
Maximum load of single instrument tray	50KG
