Deye Sun-5/6/8/10/12K-Sg04lp3 EU 3 Phase 8kw 10kw 12kw MPPT Hybrid Solar PV Inverter

Deye Sun-5/6/8/10/12K-Sg04lp3 EU 3 Phase 8kw 10kw 12kw MPPT Hybrid Solar PV Inverter

US$1,960.00
1-9 Pieces
US$1,936.00
10+ Pieces

Basic Info.

Model NO.
SUN-5/6/8/10/12K-SG04LP3 EU
Phase
Three
Output Power
>1000W
Certification
CE, ROHS
Brand
Growatt
Power Source
Solar Power
Circuit Topologies
Push-pull Type
Nature of Wave String
Square Wave Inverter
Model Number
Deye Sun-8K-Sg04lp3-EU
Input Voltage
140V-1000V
Weight
45kg
MPPT Voltage Range
140V-1000V
Application
on Grid Solar System
Output Waveform
Pure Sine Wave Output
MPPT Efficiency
99. 9%
Transport Package
Carton
Specification
1carton /piece
Trademark
Deye
Origin
China
Production Capacity
2000000 Piece /Day

Packaging & Delivery

Package Size
75.00cm * 65.00cm * 35.00cm
Package Gross Weight
42.000kg

Product Description


Product Description System Architecture Hybrid Inverter
SUN-8/10/12K-SG01LP3 | 8-12KW | Three Phase | 2 MPPT | Hybrid Inverter | Low Voltage BatterySUN 8/10/12K-SG is brand new three phase hybrid inverter with low battery voltage 48V, ensuring system safe and reliable. With compact design
and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the
application scenarios. Equipped with CAN port (x2) BMS and parallel, x1 RS485 port for BMS, x1 RS232 port for remotely control, x1 DRM port,
which makes the system smart and flexible.
The following illustration shows basic application of this inverter. It also includes following devices to have a Complete running system.- Generator or Utility- PV modulesConsult with your system integrator for other possible system architectures depending on your requirements.This inverter can power all kinds of appliances in home or office environment, including motor type appliances such asrefrigerator and air conditioner.
1. DC Breaker for battery 2. AC Breaker for grid and backup load
SUN 8K-SG: 250A DC breaker SUN 8K-SG: 80A AC breaker SUN 10K-SG:300A DC breaker SUN 10K-SG:80A AC breaker
SUN 12K-SG:300A DC breaker SUN 12K-SG:80A AC breaker
3. AC Breaker for grid and backup load 4. AC Breaker for home load
SUN 8K-SG: 20A AC breaker Depends on household loads SUN 10K-SG:32A AC breaker
SUN 12K-SG:32A AC breaker

Product Parameters
Model SUN-8K-SG04LP3 SUN-10K-SG04LP3 SUN-12K-SG04LP3
Battery Input Data
Battery Type Lead-acid or Lithium-ion
Battery Voltage Range(V) 40~60V
Max. Charging Current (A) 190A 210A 240A
Max. Discharging Current (A) 190A 210A 240A
Charging Curve 3 Stages / Equalization
External Temperature Sensor Optional
Charging Strategy for Li-Ion Battery Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W) 10400W 13000W 15600W
PV Input Voltage (V) 550V (160V~800V)
MPPT Range (V) 200V-650V
Start-up Voltage (V) 160V
PV Input Current (A) 13A+13A 26A+13A 26A+13A
No.of MPPT Trackers 2
No.of Strings Per MPPT Tracker 1+1 2+1 2+1
AC Output Data
Rated AC Output and UPS Power (W) 8000W 10000W 12000W
Max. AC Output Power (W) 8800W 11000W 13200W
Peak Power (off grid) 2 times of rated power, 10 S
AC Output Rated Current (A) 12A 15A 18A
Max. AC Current (A) 18A 23A 27A
Max. Continuous AC Passthrough (A) 50A 50A 50A
Output Frequency and Voltage 50 / 60Hz; 400Vac (three phase)
Grid Type Three Phase
Current Harmonic Distortion THD<3% (Linear load<1.5%)
Efficiency
Max. Efficiency 97.60%
Euro Efficiency 97.00%
MPPT Efficiency 99.90%
Certififications and Standards
Grid Regulation IEC61727, IEC62116, IEC60068, IEC61683, NRS 097-2-1
Safety EMC/Standard IEC62109-1/-2, IEC61000-6-1, IEC61000-6-3, IEC61000-3-11, IEC61000-3-12

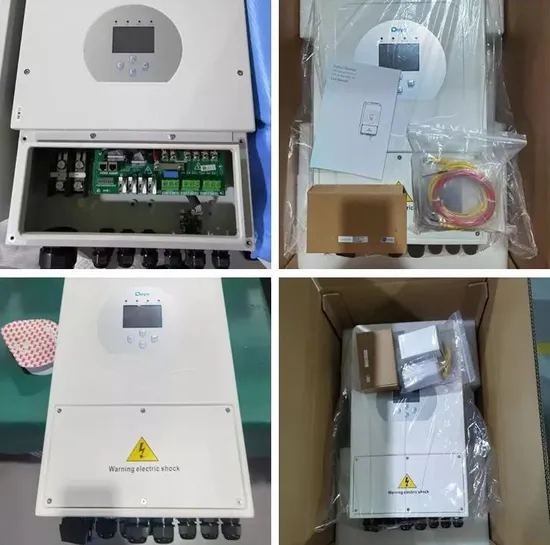

Packaging & Shipping

Company Profile
Anhui Wingo Technology Co., Ltd. has set up two sole-funded companies in Heifei one Jointed Venture in Anhui province successively since 2020.Wingo is able to provide customers with annual capacity of 300MW solar cells,400MW solar cells modules and 60,000 sets of solar power systems FAQ
Are you a factory or a trading company?
We are the manufacturer of solar panel and storage battery. Such as inverter, brackets and accessories from our long term
partners. Full certificates with competitive price.
How about the delivery time?
Usually need 10-15 days to prepare. We will update the info for you during our production.
Can i install them by myself?
Each part has installation instructions, convenient installation.For products wire connection, considering security, we suggest you can find an electrician to help you.
What is the payment method?
We accept T/T bank, Western Union payment , Trade assurance.More than 10,000usd, which can pay 30% deposit in advance, pay 70% balance before shipping.
How about the after sales?
Damage in transit will be resolved according to the contract terms.
During the warranty period, if there is a problem with the product, our engineers will first propose a solution according to the specific situation. If the product still has a problem, it will be refunded or replaced for free.
Can we visit your factory?
Welcome to visit our factory to know more of each other.We will pick you up from airport or train port.
