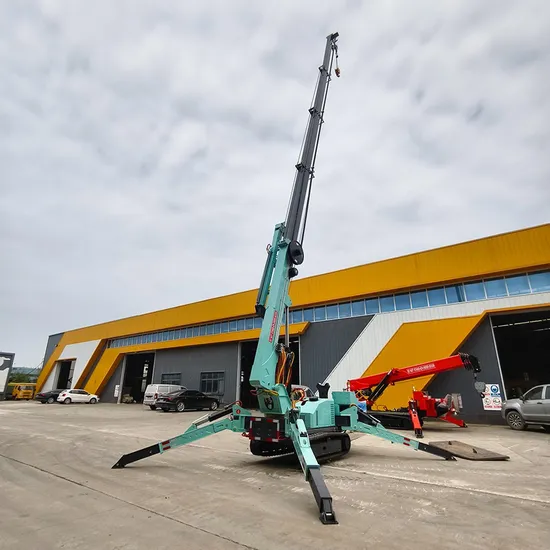

Safe and Reliable 3ton Mini Crawler Telescopic Boom Foldable Articulated Electric Spider Mobile Crane

Safe and Reliable 3ton Mini Crawler Telescopic Boom Foldable Articulated Electric Spider Mobile Crane

US$33,999.00
1-4 Pieces
US$32,999.00
5-9 Pieces
US$31,999.00
10+ Pieces

Basic Info.

Model NO.
3Ton
Warranty
2 Years
Start Mode
Electric Start
Walking Mode
Hydraulic Motor Drive
Transport Package
Nude Package or Plywood Box
Specification
4.7*1.5*2.25m
Trademark
HEHI
Origin
China
HS Code
8426491000
Production Capacity
500/Month

Product Description

Product Parameters
For comprehensive technical specifications, please reach out to us concerning HEHI high-quality remote control 10T Electric Spider Crane Crawler, tailored to meet your demanding needs
Model TW3.0 Specifications 3T
Maximum operating radius 10.5m Maximum Ground Lift 10.8m
Hook lifting speed 0-8m/min (4) Telescopic 2.4m×6 ()
Winch Device 0-8m/min(4 ropes) Boom form 2.4m×6-section lifting arm (Accept customization)
wire rope Φ8mm×45m / 6.5m/20sec ()
Boom length/time 6.5m/20sec (accept customization)
/ 0-78°/13sec Gyroscope / 0-360°()(Continuous)/60sec
Luffing device Boom angle/time Rotation angle/speed
Outrigger +()Manual screw out+oil pressure automatic support (two legs) Running Gear Walking mode
Outrigger movement form Hydraulic motor drive
(mm) 4300()X3700()X4300() Walking speed 0-2.5km/h
Maximum extension amplitude (mm) 4300 (length) X3700 (rear) X4300 (front)
Motor Voltage AC380V Gradeability 25°(36%)
Engine Manufacturer ()Changchai Operating System (/), ,
(Support customization) Operation type (boom/leg), manual walking Manual operation, manual walking
/Type/displacement EV80/F195 Operational Characteristics Manual operation
Start mode Electric start Standard Configuration ()
Diesel engine+motor(double engine)
Start performance -5°C~40°C **L*W*H 3.5*0.8*1.85m
/Fuel/Volume /8L Diesel/8L (T)Dead-weight (T) 2.7T
Battery capacity 12v 45AH Track 220()72()50()220 (width) 72 (pitch) 50 (section)
Fuel consumption rate 274g/kW-h Optional device ///Optional torque controller/remote control /hanging basket/Hydraulic fly jib
Noise level ≤81.5dBA (1m)
Rated speed ≤ 81.5dBA (1m)

Product Description
Introducing the HEHI high-quality remote control 10T Electric Spider Crane Crawler, meticulously engineered for efficiency and safety. This marvel comes equipped with a state-of-the-art load limiter, ensuring unparalleled precision and security in every operation.
The walking way of HEHI high-quality remote control 10T Electric Spider Crane Crawler, designed to deliver unmatched performance with its innovative load-limiting technology relies on its robust crawler system, enhanced with hydraulic mechanisms for winching, stretching, and rolling. This sophisticated machine embodies advanced engineering with UG three-dimensional modeling, CAE Element limit analysis, and full-computerization design strategies. It boasts exceptional agility, high reliability of key components, and an ergonomic user interface. Its lightweight and compact construction ensures flexible operations, stable performance, and dependable usage. Maintenance is straightforward and convenient. Perfect for mountain tasks, power installations, confined construction spaces, and industrial sites.
Our Advantages
Application Scenario
Recommended product display

Manufacturing process
Company Profile
FAQ
Q1:How to get your offer ? A1: Please confirm the max lifting capacity and lifting height ,then we will recommend the suitable one for u Q2:Payment terms
A2: T/T ,L/C ,WU,CASH ects Q3:Delivery time A3:Normally about 10 days within 5 sets . Q4:What is your package ? A4: Plywood box or plastic ---- It is based on the order volume Q5:Do u provide drawing ?
A5:Yes,of course .We will provide drawing for your confirmation before production Q6:How to contact you ? A6: Email ,whatsapp ,wechat ,skype ,phone ,all is ok
