US$14,000.00-15,500.00
|
1 Piece
(MOQ)
|
Basic Info.
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
Artificial
Certification
GS, CE, RoHS, ISO 9001
Spindle Taper
7:24 ISO 50
Spindle Speed Range
3~1500rpm
Number of Table Feed
18(Steps)
Max.Cross Travel Manual/Automatic
315/300mm
Max.Longitudinal Travel
900/800mm
Transport Package
Free Fumigation Plywood Packaging Steel Base
Specification
2556*2159*2258mm
Production Capacity
200 Sets/Month
Product Description

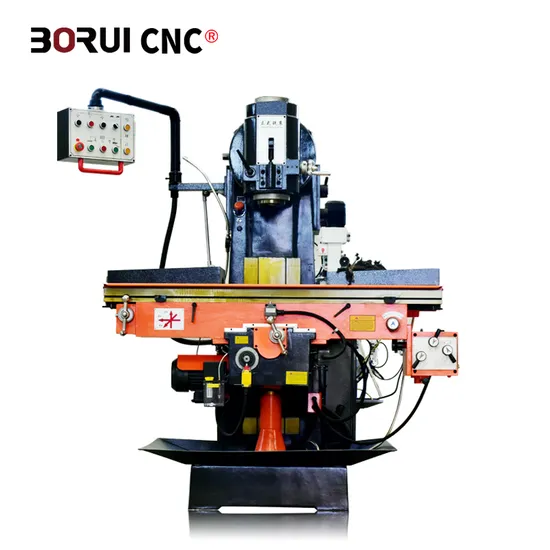

X5032A Hot Selling High Accuracy Optimum Milling Machine With CE
Product Description
Vertical lifting platform milling machine is a kind of general metal cutting machine tool.
Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.
The main feature :
1.One more powerful metal cutting machine,
2. High rigidity,
3. Wide range of spindle feed also can bear a heavy burden.
4.The spindle taper hole can install many kinds of cylindrical cutter, disc cutter, form cutter, end milling cutter and so on,
5.Optional accessories as dividing head, rotary table, machine vice,milling chuck, Digital readout, can make such machine more functional.
Advantage :
Rectangular guide ways
Hardened and ground table surface
Spindle swivels +/-45 degrees
Quill moves up and down
The main specification :
Main specification
| X5032
| X5040
|
Table size
| 320 x 1325 mm
| 400 x 1700 mm
|
Spindle taper
| 7:24 ISO 50
| 7:24 ISO 50
|
Spindle bore
| 29 mm
| 29 mm
|
Distance from spindle nose to table surface
| 60-410 mm
| 30-500 mm
|
Distance from spindle axis to bed vertical guide way surface
| 350 mm
| 450 mm
|
T-slot(number/width/spacing)
| 3/18/70
| 3/18/90
|
Max. longitudinal travel manual/automatic
| 700/680 mm
| 900/880 mm
|
Max. cross travel manual/automatic
| 255/240 mm
| 315/300 mm
|
Max. vertical travel manual/automatic
| 350/330 mm
| 385/365 mm
|
Rapid speed longitudinal/cross/vertical
| 2300/1540/770 mm/min
| 2300/1540/770 mm/min
|
Max. turning angle of vertical milling head
| ±45°
| ±45°
|
Spindle travel
| 70 mm
| 85 mm
|
Number of spindle speed
| 18(steps)
| 18(steps)
|
Spindle speed range
| 30~1500 r.p.m
| 30~1500 r.p.m
|
Number of table feed
| 18(steps)
| 18(steps)
|
Main motor power
| 7.5 KW
| 11 KW
|
Feed motor power
| 2.2 KW
| 3 KW
|
Overall dimension
| 2294X1770X 1904
| 2556X2159X2258
|
Net weight/Gross weight
| 2900 /3200
| 4250/4350
|
Standard Accessories: 1.Drill chuck
2.Mill chuck
3.Inner hexagon spanner
4.Work light
5.Reduction sleeve
6.Draw bar
7.Spindle arbor
8.wrench
Optional Accessories: 1.DRO on X, Y, Z--AXIS 2.Clamping kit
3.Universal dividing head
Details Display
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have Company Profile
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in china
Sino-germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at TAIWAN
Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.
