Quickly Dredged Ultrasonic Vibrating Cleaner with Quickly Responded Ceramic Filter

Quickly Dredged Ultrasonic Vibrating Cleaner with Quickly Responded Ceramic Filter

US$300.00-2,200.00 1 Piece (MOQ)

Basic Info.

Model NO.
TT series
Application
for Industrial Parts Cleaning
Cleaning Media
Wet Cleaning
Automation
Automatic
Cleaning Precision
Ultra-Precision Industrial Cleaning
Control
PLC
Principle
Physical and Chemical Cleaning
Certification
CE
Condition
Used
Customized
Customized
Feature
High Efficiency
Characteristic
Durable
Customizable
Offer
Capacity
5000 / Month
Type
Ultrasonic Cleaning
Transport Package
Plywood Box
Specification
580x100x80
Trademark
Tong
Origin
China, Tonglin
HS Code
8479899990
Production Capacity
5000 / Month

Packaging & Delivery

Package Size
100.00cm * 40.00cm * 100.00cm
Package Gross Weight
30.000kg

Product Description


Basic information
InformationDetails
Model NO.TT
PrinciplePhysical Cleaning
ConditionNew
FeatureClean Thoroughly
Specification560x100x80mm
OriginChina
Production Capacity1000 PCS/Month
ControlPLC
CertificationCE
CustomizedCustomized
Transport PackageWooden
TrademarkTongdu
HS Code8479899990

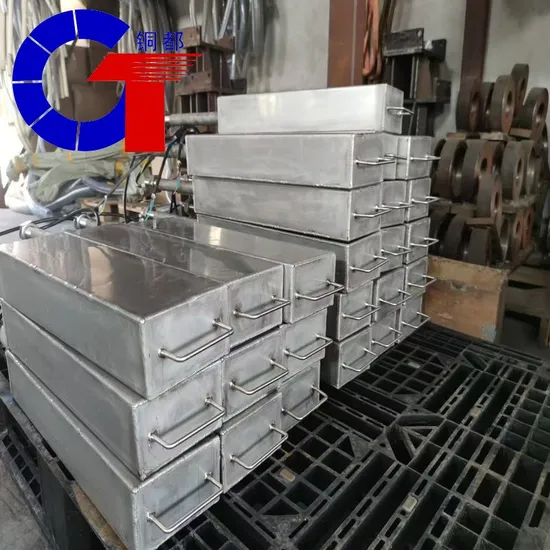

Ultrasonic Vibration BoxProduct Description
The ultrasonic vibration box is one of the core components in ultrasonic cleaning equipment, and its performance directly affects the cleaning effect and efficiency. The ultrasonic vibration box is mainly composed of a vibration plate, ultrasonic transducer, ultrasonic generator, power supply, and other parts. Among them, the vibration plate is the core component of the vibration box, usually made of stainless steel or aluminum alloy material, with good corrosion resistance and mechanical strength. Ultrasonic transducers are responsible for converting high-frequency electrical energy into mechanical vibration, and their performance directly affects the vibration effect and stability of the vibration box. The ultrasonic generator generates high-frequency electrical energy, which is supplied to the vibration box through the power supply, thereby driving the vibration plate to perform high-frequency vibration.
Product Classification
The plug-in ultrasonic transducer box is vertically installed at the discharge end of the tank, and the filter plate moves in a circular motion with the rotation of the rotor. The working surface of the filter plate passes through between the two ultrasonic boxes. In the joint cleaning stage, external ultrasonic vibration is carried out in conjunction with backwash water positive pressure flushing and chemical cleaning to more thoroughly remove fine particles and a small amount of chemical scale on the micropores and surface of the filter plate, keeping the capillary tube of the filter plate unobstructed.The lifting type ultrasonic transducer box is installed in the slurry tank between the rotor and the mixing drive shaft, and is connected to the lifting crossbar through a connecting rod. When the ceramic filter is used for filtration operation, the ultrasonic transducer box is lifted above the slurry level without contact with the slurry. In the joint cleaning stage, the ultrasonic transducer box enters the slurry tank below the cleaning water level and performs high-frequency vibration on the micropores and surface of the filter plate.
Our Advantages
1,The elevated ultrasonic transducer box is installed above the ceramic filter machine and is not affected by the industrial site.
2,High degree of automation, extremely convenient for maintenance, replacement, and disassembly
3,The ultrasonic transducer box only enters the slurry tank when needed, greatly extending its service life and reducing the damage rate
4,The dead corners of the groove formed by the installation of the plug-in transducer box in the original system have basically disappeared, and the groove flushing is cleaner and more thorough, creating more favorable conditions for the cleaning of the ceramic filter machine
Work site pictures

Certifications
