Full Fat Soya Bean Extruder Machine Soybean Soya Meal Making Machine

Full Fat Soya Bean Extruder Machine Soybean Soya Meal Making Machine

US$4,000.00-12,000.00 1 Piece (MOQ)

Basic Info.

Processing Object
Animal-Derived Feed
Processing Technics
Crushing-before-Mixing
Screen Mesh
With Screen Mesh
Grinding Equipment Type
Feed Hammer Mill
Pellet Mill Type
Screw Granulator
Bulking Machine Type
Single Screw Bulking Machine
Expanding Method
Dry Expansion
Condition
New
Applicable Materials Shape
Powder
Warranty
12 Months
Model
Dgp-90b
Main Power
37kw
Capacity for Soybean
350-400kg/H
Capacity for Corn/Maize
300-400kg/H
Feeding Power
0.6kw
Screw Diameter
90mm
Certificate
CE
Function
Animal Feed or Oil Production
Machine Color
Customize
Keyword 1
Soybean Extruder Price
Keyword 2
Soy Meal Making Equipments
Keyword 3
Soya Feed Processing Machine
Keyword 4
Snack Food Machine
Keyword 5
Soybean Protein Extruder
Keyword 6
Soya Protein Extruder
Transport Package
Wooden Case
Specification
1850*1500*1350
Trademark
AG Mach
Origin
Zhengzhou, China

Product Description

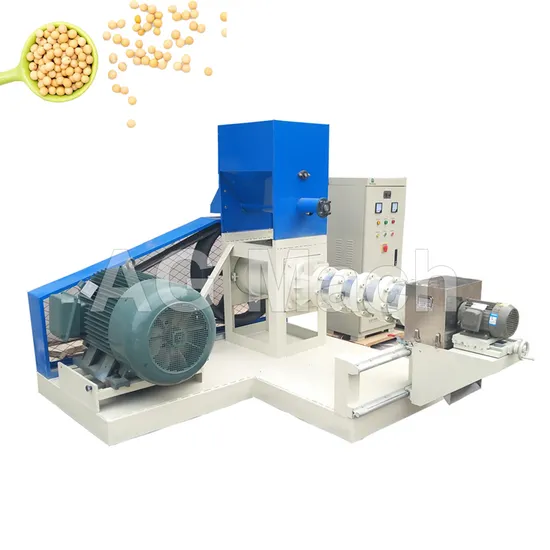

Soybean Bulking Machine /Soya Extruder Machine/Full Fat Soyabean Extruder
Product Introduction: The DGP series of large and medium-sized dry feed extruder is carefully designed by adopting the advantages of domestic and foreign
models and integrating a number of technological innovations. This machine adopts a combined main shaft,which can be adapted to the
puffing processing of different materials and processing whole corn and soybeans.
The supporting facilities are simple and the operation and maintenance are convenient. The main motor can be Siemens to ensure product
quality. The processing conditions of the dry extruder and the wet extruder are easily interchangeable, and the screw sleeve adopts an inlaid
alloy steel bar structure, which has a longer service life.
It is widely used in extruded soybean, corn, suckling pig feed and other livestock and poultry feed, rice bran preservation,
cotton meal, castor meal detoxification treatment, it is an ideal tool for feed processing enterprises.
Specification:
Model
Capacity for Soybean
Capacity for Corn/Maize
Main Power
Feeding Power
Screw Diameter
DGP-70B 200kg/h
180-200kg/h
18.5kw
0.4kw
Φ70mm
DGP-80B 200-300kg/h
200-250kg/h
22kw
0.4kw
Φ80mm
DGP-90B 350-400kg/h
300-400kg/h
37kw
0.6kw
Φ90mm
DGP-120B 500-600kg/h
500-550kg/h
55kw
0.6kw
Φ120mm
DGP-135B 800-900kg/h
700-800kg/h
75kw
0.8kw
Φ135mm
DGP-160B 1000-1200kg/h
900-1000kg/h
90kw
1.5kw
Φ160mm
DGP-200B 2000kg/h
1800-2000kg/h
132kw
1.5kw
Φ200mm

Detail Images
Advantages:
(1). The Full fat soybean extruder machine uses modular spindle, can be adapted to different materials Extruding processing, whole
grain corn and soybean processing facilities is simple, easy operation and maintenance.
(2). novel design, high output, stable operation, the main components is heat treated special alloy material refined, with a high degree
of wear resistance, long life and other characteristics.
(3). Extruding (whole corn) raw materials, and easy operation and maintenance, suitable for small feed mill and the majority of farmers' special
use.
(4). The screw and sleeves using an inlaid alloy strip structure, longer life.
(5). The Full fat soybean extruder machine Widely used in expansion of soybean, corn, suckling pig feed materials and other livestock and poultry
feed, rice bran preservation, cottonseed meal, castor meal detoxification, it is the ideal choice tool for feed processing enterprises.
Working Principle:
* The screw sleeve and screw are made of a special high-temperature resistant alloy just now. They are formed by heat
treatment.They are equipped with a unique pressurized die device to ensure the output and quality of the feed; and are equipped
with an electric heating device to increase the boronization rate of the feed.
* The main motor adopts high-quality Y series three-phase motor to ensure strong power.
* The speed-adjustable feeding device is more convenient to operate, feeds evenly, and prevents material jams.
* The discharging template is easy to replace. If you need feed with different diameters, you only need to change the hole
template. Ensure that the feed is clean and hygienic, which is conducive to protein denaturation and starch gelatinization, and is
easy to absorb. Generally, the use of extruded floating fish feed saves 8%-15% of feed than powder or pellet feed.
Raw material: Soybean, corn, wheat, rice.
