5m Chainflex Cat5e Ethernet Cable Robust Bending for Industrial Camera

Product Description

5m Chainflex Cat5e Ethernet Cable Robust Bending for Industrial Camera
Description:

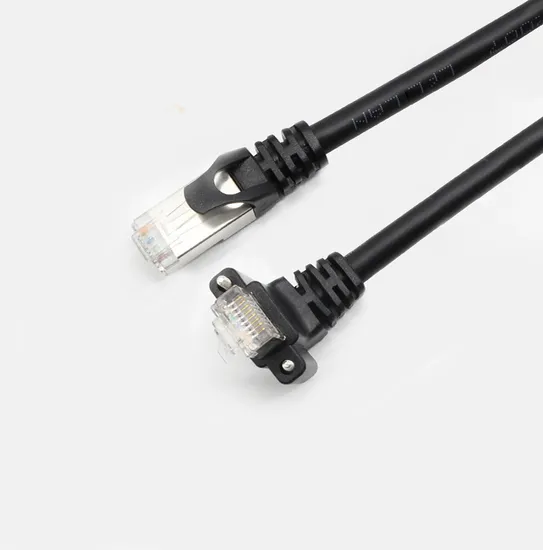

GiGE camera link cables are built of plenum rated CAT6 stranded pair shielded robotic cable with AMP or Hirose RJ45 connector, robust molding with or without thumbscrew locking , They offer outstanding quality, durability, and good performance for Gige camera.
Specification:

Brand	Himatch	Model No.	See Code	Conductor:	Tinned copper
Cable:	CAT5e 4P CAT6 4P	Wire:	26AWG	Insulation:	HDPE/FEP
Jacket:	PUR	Cable OD:	6.0mm	Color:	Black/Yellow
Cable shape	Round	Using for	CCD Camera	UL Verified:	Yes
Voltage:	80V	Bending:	5 Millions	OEM/ODM:	Available

Features:
100% electronically tested for functionality
Shielded pairs provide superior signal integrity
PUR jacket resists oil and other contaminants
CE, RoHS and REACH compliant
Application:
CCD camera:Basler ace,Basler aviator,Basler runner,Basler racer...
Basler Time-of-Flight series'model: ACA2500-14GC,ACA640-90GC,ACA1300-60GC,RAL2048-48GM
JAI,AVT's Guppy Pro, Manta, Stingray, Pike series, Dalsa,Imagingsource and so on, all the Industrial CCD camera with RJ45 connector


Tow chain installation.
In the placement of towed cables, cables need to be tiled, cables can not be crossed or overlapped;
Select the tow chain with enough space to ensure that the cable occupies less than 30% space;
Install as many partitions as possible to avoid interference between cables.

Cable length
If the cable is too short and the cable is always tight in the drag chain, the cable jacket will be worn out because of the friction between the cable and the drag chain;
If the cable is too long, then the cable will be slack in the drag chain, also because of the friction between the cables, the jacket also will be wear and tear.
Both of the above will shorten the service life of the cable, please select the most appropriate cable length.
