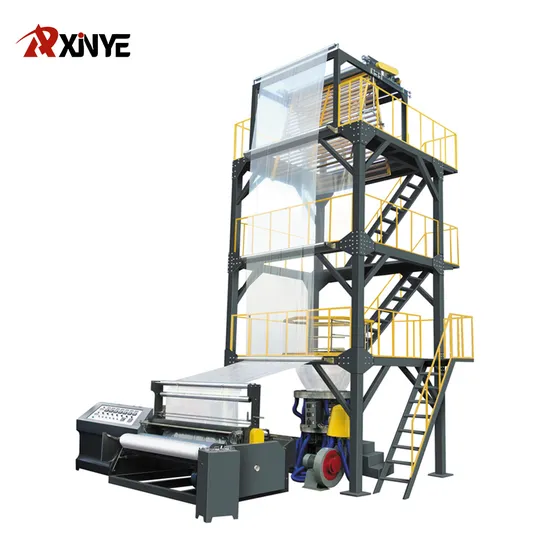

Biodegradable Making Plastic Agriculture Mulching Plastic Stretch Film Blowing Making Machine

Biodegradable Making Plastic Agriculture Mulching Plastic Stretch Film Blowing Making Machine

US$12,000.00
1-9 Pieces
US$9,800.00
10+ Pieces

Basic Info.

Model NO.
SJ-120
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE
Main Motor
Siemens
Screw Ratio
L/D28:1
Switch
C45 Switch
Operation Instruction
One PC
Transport Package
in Standard Wooden Case
Specification
CE certificate
Trademark
Elight
Origin
China(Zhejiang)
HS Code
84778000
Production Capacity
20 PCS/Month

Packaging & Delivery

Package Size
500.00cm * 200.00cm * 500.00cm
Package Gross Weight
5000.000kg

Product Description


USAGE&CHARACTERISTIC
This machine is applied to produce HDPE,LDPE and LLDPE plastic film.It is widely used for packing food,garments,daily necessities,and other agricuture and industry use.It is equipped with three axis transmission hard surface gear reducer,traction frequency adjustment,independent torque motor rewinder,centrifugal blower,and air compressor(Rotary die head part can be chosen with extra charge)
OPTIONAL EQUIPMENT
Auto loader/ cooling machine/ corona treater/ die rotary device/ air compressor/ manaul net changer/
MAIN TECHNICAL VARIABLES
model SJ-80/FM1500 SJ-100/FM2000 SJ-110/FM2500 SJ-120/FM3000
screw diameter 80mm 100mm 110mm 120mm
screw ratio L/D 28:1 28:1 28:1 28:1
screw speed 10-100r/min 10-100r/min 10-100r/min 10-100r/min
extrusion output 86kg/h 160kg/h 180kg/h 220kg/h
main motor power 30kw 55kw 75kw 90kw
caliber of film head Φ300mm Φ500mm Φ600mm Φ750mm
machine head rotation continunous rotation continunous rotation continunous rotation continunous rotation
thickness of film 0.01-0.10mm 0.01-0.10mm 0.01-0.10mm 0.01-0.10mm
max.film folding width 1500mm 2000mm 2500m 3000mm
total power 56kw 88kw 110kw 145kw
weight of machine 6000kg 7600kg 9800kg 12000kg

overall dimension 7000x2900x5500mm 8000x3500x8000mm 9000x4200x9600mm 10000x4600x11000mm

Ruian Xinye Packaging Machine Co.,Ltd. with a long history is located in Ruian economically developed city on the seashore of the East China sea of Zhejiang.We are an experienced manufacturer in polyethylene film,bubble film extrusion machines, and related bag making machines field since 1995.
At same time we offer one-stop service for the full production lines such as arrange other auxiliary equipments for customers from all over the world. Main Products are :
1 .Mono Layer and multi-layers Polyethylene, Polypropylene, Biodegradable, stretch film , shrink film extrusion line;
2. Kinds of plastic shopping and packing bags, kraft paper bubble envelope production line;
3. Other auxiliary equipments like printing machine , recycle machine, crusher, mixer and so on .
We have won the support and trust from most national and International customers,from the Southeast Asia,the Middle East, Russia,America, Europe and Africa, etc.
THE AFTER-SALE SERVICE OF RUIAN XINYE PACKAGING MACHINE CO.,LTD
1.After finishing the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools.
2. After the commissioning, we will package the equipment by the standard export package for shipment.
3.According to the customer's request, we can arrange our engineers to customers' factories to do the installation and training.
4. Engineers, sales managers, and after-sales service managers will form an after-sales team, online and offline, to follow the customers' project.
FAQ
1.Q: Are you a factory or trading company?
A: We are established in 1995, an actual factory and manufacturer in the line of printing and packing machine for 20 years.
2.Q: Where is your factory loaded? How can I visit there?
A: Our factory located in Rui'an city, Zhejiang Province, China, about one hour by air from Shanghai. All our clients, from home or abroad, are warmly welcome to visit us.
3.Q: Which industries are widely used in of your machine?
A: Bag making machine, film blowing machine, printing machine.
4.Q: How about the payment term?
A: For new customer, our payment term is 30% T/T in advance before production, the balance 70% should be paid before delivery.
5.Q: What about your main market?
A: Our products be sold well in 30 provinces in China and have good reputation in China, also we pay attention to developing the oversea market, such as Europe, Russia, Southeast Asia, Middle and South America, Africa, and other countries.
6.Q: How does your factory do regarding quality control?
A: Quality is the most important principle. GREAT WALL always attach great impartance to quality controlling from the every beginning to the every end. Our factory has passed SGS and CE certifications.
If you have any questions,please feel free to contact with us.
