Basic Info.
Usage
Mining Excavator, GM Excavator
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Certification
CE, ISO9001: 2000
Rated Power
566kw/1900rpm
Transport Package
Container
Specification
12780*3500*4840 mm
Production Capacity
500/Year

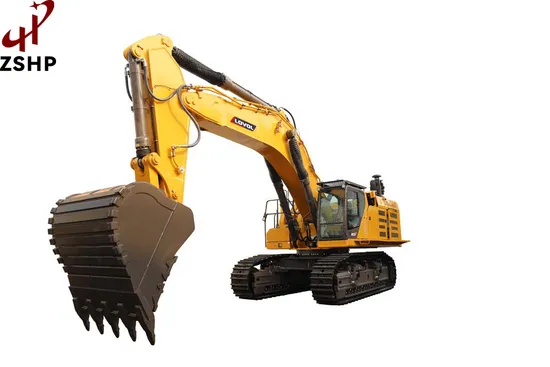

Product Description
Product Description
Adopting Weichai Linde powertrain techrology,the operating eficiency of the wholemachine is improved by 15%compared with that of competing products,and the fueleffidiency is improved by more than 20%.
EFFICIENCY
·Industry-leading engine thermal efficiency.Lowest fuel consumption of 183g/kWh
Large displacement main pump with 7.1%increase compare to competitors
Adopt plunger-wrapped slide shoe and 21°swing angle technology Compact and high powerdensity
High displacement,low rpm
High torque,high power,with power up to 566KW and torque up to 3300N·m
Fully electronically controlled large bore main valve with a flow capacity of 550L/min
Custom tuning with optimized internal flow paths for less pressure loss and better response
Product Parameters
Main specification | Operating weight | 79000 kg |
Bucket capacity | 5.5 m3 |
Bucket digging force(standard) | 406 kN |
Arm Digging Force | 368 kN |
Max traction | 524 kN |
Max. Walking Speed | 4 km/h |
Min. Walking Speed | 2.8 km/h |
Swing speed | 6.6 r/min |
Gradeability | 35° |
Ground pressure | 113 kPa |
Engine | Model | WEICHAI WP17T |
Rated Power | 566kW/1900rpm |
Cylinder | 6 |
Displacement | 16.6 L |
Max. Torque/Speed | 3300N·m/1200~1600rpm |
Hydraulic system | Max. Main Pump Flow | 1020 L/min |
Main Safety Valve Pressure | 34.3 MPa |
Working ranges | Max digging height | 11950 mm |
Max Dumping height | 7190 mm |
Max. Digging Depth | 7410 mm |
Max vertical digging depth | 4240 mm |
Max. Digging Radius | 11970 mm |
Max. Ground Digging Radius | 11660 mm |
Min. Turning Radius | 5340 mm |
Dimensions | Transportation Dimensions(L*W*H) | 12780*3500*4840 mm |
Tail swing radius | 4180 mm |
Track length | 6000 mm |
Ground clerance | 900 mm |
Counterweight clerance | 1600 mm |
Service refill capacities | Fuel tank capacity | 900 L |
Hydraulic oil tank | 660 L |
Engine oil | 52 L |
