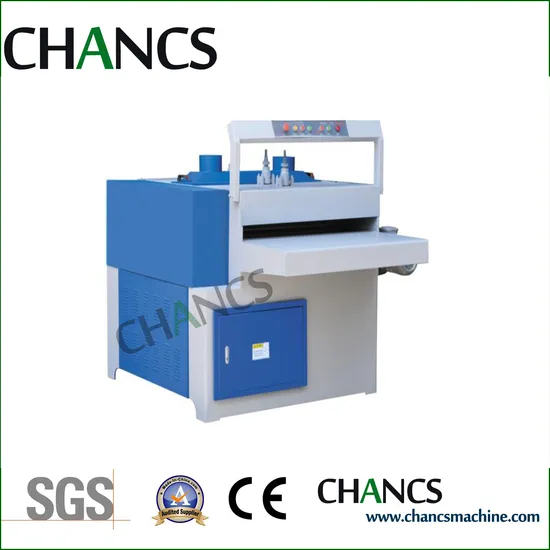

Woodworking Machine Multi Blade Rip Saw for Slab

Woodworking Machine Multi Blade Rip Saw for Slab

US$1.00-2.00 1 set (MOQ)

Basic Info.

Model NO.
MJ-Q2-1250-70
Power Type
Electric
Layout
Horizontal
Controlling Mode
CNC
Automatic Grade
Semiautomatic
Precision
High Precision
Customized
Customized
Condition
New
Color
Customized
After-sales Service
Free Service on Internet
Working Thickness
10-70mm
Transport Package
PE Film
Trademark
CHANCSMAC
Origin
China
Production Capacity
15 Sets/ Month

Product Description


Multi rip saw is equipped with multi circular saw blade on same spindle. Can cut the wide slab into several pieces at the same time. The cutting width can be adjusted accordingly. And the working thickness is from 10-70mm.
Machine test before shipment
Model MJ-Q2-1250-70 MJ-Q2-1000-70 MJ-Q2-800-70 MJ-Q2-600-70 MJ-Q2-600-50
Max working width 1250mm 1000mm 800mm 600mm 564mm
Mini working width 100mm 100mm 50mm 50mm 50mm
Working thickness 10-70mm 10-70mm 10-70mm 10-50mm 10-50mm
Mini working length 620mm 620mm 620mm 570mm 500mm
Machine power 32.2kw 32.2kw 23.5kw 19.6kw 15.75kw
Overall size (mm) 2250x2000x1600 2250x1700x1600 2250x1500x1600 2180x1300x1600 1720x1087x1600
Total weight 1850kg 1740kg 1400kg 1250kg 620kg

Model MJ-Q1-500-50 MJ-Q1-500-25-4D MJ-Q1-500-25-3D MJ-Q1-500-25-A
Max working width 500mm 500mm 500mm 500mm
Mini working width 50mm 30mm 30mm 30mm
Working thickness 10-50mm 10-25mm 10-25mm 10-25mm
Mini working length 400mm 300mm 150mm 300mm
Machine power 15.75kw 4.55kw 4.55kw 6.6kw
Overall size (mm) 1098x1039x1450 1098x1039x1450 1470x890x1050 1450x890x1323
Total weight 472kg 198kg 225kg 386kg
