50L Agricola Dron Orchard Pesticide Fumigacion Pulverzer Drones PARA Fumigar HD Camera Agriculture Frame Drone

Product Description

Product Description

Dimensions	Folded: 1240*840*872mm	Spraying Capacity	50L
	Unfolded: 2919*3080*872mm	Spray Width	8-20m
Weight	34kg	Atomizing Size	30-400µm
Max. Take-off Weight	99kg	Max. System Flow Rate	20L/min
Max. Flight Speed	15m/s	Spreading Capacity	70L
Max. Flight Altitude	≤20m	Applicable Granule Size	1-10mm
Hovering Duration	28mins ( with No-Load )	Camera	HD FPV Camera ( 1920*1080px )
	7mins ( with Full-Load )	Remote Controller	H12 ( Android OS )
Waterproof Grade	IP67	Intelligent Battery	18S 30000mAh*1

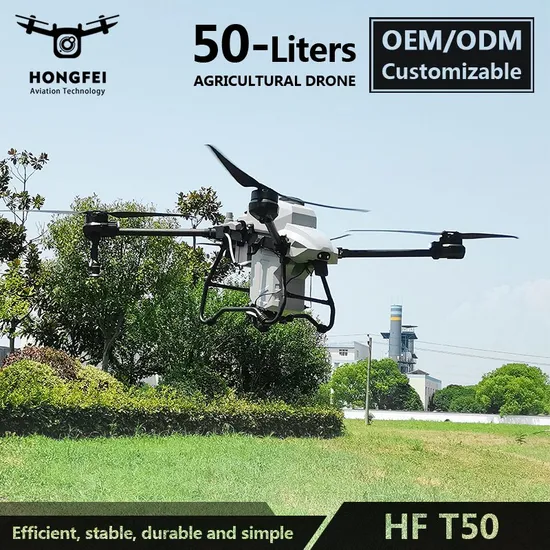

Agricultural Plant Protection Drone HF T50
· Efficient Distribution: The centrifugal spray head in drones can distribute substances such as pesticides, powders, suspensions, emulsions, and soluble powders more evenly. This uniformity ensures that every part of the field or area being sprayed receives an equal amount of substance, leading to more effective and efficient usage.
· Adjustable: The size of the spray droplets can be adjusted by controlling the speed of the nozzle, achieving precision agriculture.
· Easy to Replace and Maintain: The centrifugal spray head consists of a centrifugal motor, a spray tube, and a spray disc. The spray disc is separated from the motor, preventing the motor from coming into contact with pesticides, extending the motor's lifespan.
· High Corrosion Resistance and Durability: The spray disc is made of high-quality materials that can withstand acidic and alkaline pesticides.

Fuselage Construction
· Z-Shaped Aircraft Frame: Z-shaped folding design reduces 15% storage volume, Flexible handling transfer.
· Front Low Rear High Design: Reduce wind resistance ,Improves endurance by 10%.

Atomized Spraying
· Water Cooled Centrifugal Nozzle: Interlayer water-cooled centrifugal nozzle can effectively reduce the temperature of electrical and mechanical regulation, increase the life by 70%, and the particle size range can reach the minimum of 30 microns, bringing a new spraying experience.
High Flow Impeller Pump
· Equipped with Double Sided High Flow Impeller Pump: Abundant flow and efficient operation can achieve 20L/min large flow, with ultrasonic flow meter sensor and liquid separation detection, the performance is more stable, more accurate.
Intelligent Controls
· Fully Autonomous Flight: Customized for agricultural plant protection UAV humanized App, can provide arbitrary polygon route planning for irregular terrain, completely autonomous operation, improve work efficiency.
· AB-T Mode: By adjusting the Angle of AB point when Set work area points,changing the aircraft route and adapting to more complex plots.
· Sweeping Mode: After selecting the sweeping mode,the number of turns of sweeping flight operation can be set, and the sweeping route can also be indented as a whole or unilaterally.
· Intelligent Route Planning: With continuous liquid level meter, it can grasp the residual drug quantity in real time, predict the dressing change point, and realize the optimal drug-electric matching.
· Air Route U-Turn: U-turn Angle is small, the flight is more smooth, more efficient operation.
Accessories List

Aviation Aluminum Land Gear	Industrial Version GPS & Controller	FPV HD Camera	Terrain Follow Radar
Water Pump	Obstacle Avoidance Radar	Integrated Motor & Electrionic Governor	Intelligent Remote Control
Carbon Fiber Propeller & Arm	Pluggable Lithium Battery	Centrifugal Nozzle	Intelligent Battery Charger

Packaging & Shipping

Production, assembly	Testing	Packaging (customized boxing method available)	Loading and shipping

Company Profile
Hongfei Aviation Technology Co., Ltd.
Is Established in 2003, with a factory in Anhui, China and a stable team of highly skilled employees, we are a professional UAV operation solution provider.
Our products have passed ISO certification and CE certification, and we have several patent certificates. We are committed to providing professional solutions for our partners in the drone industry and creating a complete supply chain of drone products.

Strength	Service	Quality	Certificates
Years of operation, with rich manufacturing and sales experience. ·Support OEM/ODM ·Independent factory ·With professional R&D team ·Possess many patents ·One of the leading drone manufacturers in China	Quality service to meet your needs. ·Perfect pre-sales and after-sales service ·According to the application industry, we can match the best solution for you ·Focus on customer feedback, timely and effective solution to customer problems	Professional production system to ensure the quality of each product. ·Passed ISO9001 international quality system certification ·Controlling the details, to ensure that each detail of the product delivery	Received several certifications. ·20 invention patents ·15 utility model patents ·23 software copyrights ·1 appearance patent

FAQ
1.What is the best price for your product?
We will quote based on the quantity of your order, the higher the quantity the higher the discount.
2.What is the minimum order quantity?
Our minimum order quantity is 1 unit, but of course there is no limit to the number of units we can purchase.
3.How long is the delivery time of the products?
According to the production order dispatch situation, generally 7-20 days.
4.What is your payment method?
Wire transfer, 50% deposit before production, 50% balance before delivery.
5.What is your warranty time? What is the warranty?
General UAV frame and software warranty of 1 year, the warranty of wearing parts for 3 months.
