Deals Low Price High Frequency Metal Heating Induction Heater (JL-15/25)

Product Description

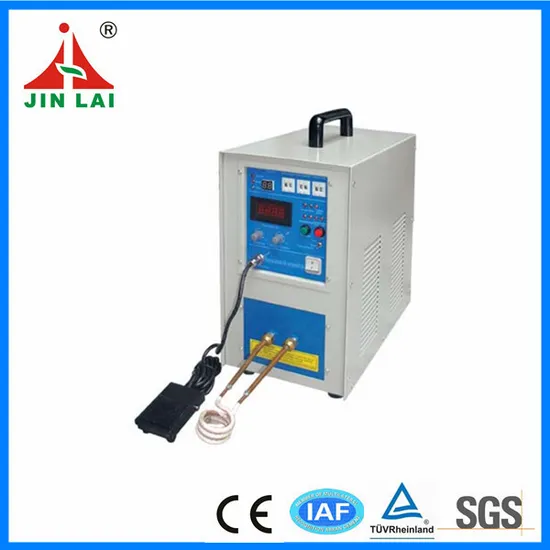

Low Price High Frequency Metal Heating Induction Heater (JL-15/25)
Main characteristics
1. Adoping MOSFGT and IGBT inverting device, tracking frequency automatically
2. High frequency, heated quickly, its powei consumption is only 20%~30% of eletronic tube induction heating machine and other heating style.
3. Security and reliability, the equipments have the secure voltage and it's secure to operate
4. Manual, automatic regulating automatically, it can protect itself from over voltage, over current, lack of water, phase fail, over hot, etc
5. It has no open-fire, noise and pollution, be suit for the environmental protection and fire, improve the image of the company
6. Recommend usage: Weld, forging, hot cooperate, melting, quenching, anneat etc
Technical Parameters

Model	JL-15KW	JL-25KW
Input power desire	Single phase 220V 50/60HZ	3 phase 380V 50/60HZ
Oscillate power max	15KW	25KW
Max input current	37A	24A
Max input power	7KW	15KW
Oscillate frequency	30-100KHZ	30-100KHZ
Cooling water desire	>0.2MPa 2-6L/Min	>0.2MPa 2-6L/Min
Duty cycle	100% 40°C	100% 40°C
Dimensions(L*W*H)	500*210*460mm	550*240*480mm
Net weight	25kg	30kg
Cable length	2-6(Meters)	2-6(Meters)

List of Accessories In the Package

Item	Name of machine or parts	Specification	Amount
1	JL-15/25KW heating power	-	1 pc
2	Foot pedal	3 core	1 pc
3	Induction Coils	-	2 sets
4	Water Cable	-	1 set
5	Instruction Manual	-	1 pc
6	Product catalog	-	2 sets

Water Cooling System
There are two types cooling system for option
A. Cooling Chiller
B. 330W Water Pump + 200-300L Water Tank
Pre-sale service:
1. recommend the most suitable machine for customers, according to their requirements.
2. Inquiry and consulting support.
3. Sample testing support.
4. View our Factory.
In-sale service:
1. Strictly manufacture the machine, according to relevant technical standards.
2. Take run test, according to relevant equipment test run regulations.
3. Strictly check up the machine, before delivery
4. Delivery on time.
After-sale service:
1. 12 months warranty period
2. Within one year free warranty, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, Jinlai shall provide replacement parts after detecting the faults.
3. If any big quality problems occurs out of the guarantee period, Jinlai will send maintenance
4. technician to provide visiting service after checking with the customer and charge for a favorable price.
5. Jinlai will provide a lifetime favorable price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
6. The above mentioned are only basic after-sale service requirements, we will make more promises related to quality assurance and operation guarantee mechanism.
High Frequency Series

Model	JL-5	JL-15	JL-25	JL-30	JL-40	JL-50	JL-60	JL-80
Input power desire	Single phase 220V 50/60HZ			3 phase 380V 50/60HZ
Oscillate power max	5KW	15KW	25KW	30KW	40KW	50KW	60KW	80KW
Max input current	20A	37A	24A	38A	48A	65A	80A	105A
Oscillate frequency	100-250KHZ	30-100KHZ						30-80KHZ
Cooling water desire	>0.2MPa 2-6L/Min						0.3Mpa≥6L/MIN
Duty cycle	100% 40°C	100% 40°C	100% 40°C	100% 40°C	100% 40°C	100% 40°C	100% 40°C	100% 40°C
Net weight	19kg	21kg	28kg	25kg/23kg	35kg/30kg	45kg/30kg	50kg/30kg	80kg/85kg
