90AMPS 380V 220V 60kVA 3 Phase Full Automatic Voltage Regulator and Stabilizer

Product Description

90Amps 380V 220V 60KVA 3 Phase Full Automatic Voltage Regulator and Stabilizer

Product Description The rated capacity of TNS(SVC) series three phase automatic voltage regulator stabilizer ranges from 6KVA to 120KVA for normal products. The normal voltage regulation range is 380V±20% (It could be customized according to customers' requirements).
TNS voltage stabilizers regulate three phase voltage independently to ensure the stability of each phase voltage. The input wiring terminals are three phase and a neutral line while the output wiring terminals are three phase with neutral line shared with the input one. As for the displaying meters, three ampere meters indicates output current of each phase while one volt meter shows output voltage (LCD display screen is alternative).
Product Parameters

Product Name	Three Phase AC Power Automatic Voltage Stabilizer/Regulator
Rated Capacity	60KVA (Could be customized)
Product Model	TNS(SVC)-60KVA
Input Voltage Range	304-456VAC (Could be customized)
Rated Output Voltage	220V/230V/240V/380V/400V/415V/440V/480V (Could be tailored)
Working Frequency	50HZ-60HZ
Output Accuracy	±2%
Insulation Class	F
Waveform Distortion	No Additional Waveform Distortion
Phase	Three Phase
Working Temperature	-10ºC~+50ºC
Ambient Relative Humidity	30%-80%
Protection Class	IP 23 (Could be tailored)
Cooling Way	Dry Type Air Colling
Insulation Resistance	≥5MΩ
Working Effiency	>90%
Current Type	AC
Product Type	Servo Motor Type
Regulation Method	Automatic Regulation
Regulation Mechanism	Three Phase Independent/Separate Regulation

Product Advantages TNS voltage regulator features in fast response speed, high efficiency, high output accuracy, no additional waveform distortion, sound voltage regulation performance, suitability for various loads, strong instantaneous over-load bearing capability, suitability for constant work. It is designed with various protection functions, including over-voltage, under-voltage, over-current, phase lack, phase failure, and mechanic fault etc.
Product Details
The displaying system includes the ampere meters for indicating three phase current, the voltage meter for showing output voltage, and pilot lamps for indicating the working status of the automatic voltage regulator stabilizer. It's user-friendly for customers to monitor the datat at real time.
These four parts are the major elements for three phase automatic voltage regulators stabilizers. High quality parts helps to facilitate the stable performance of the AVR.

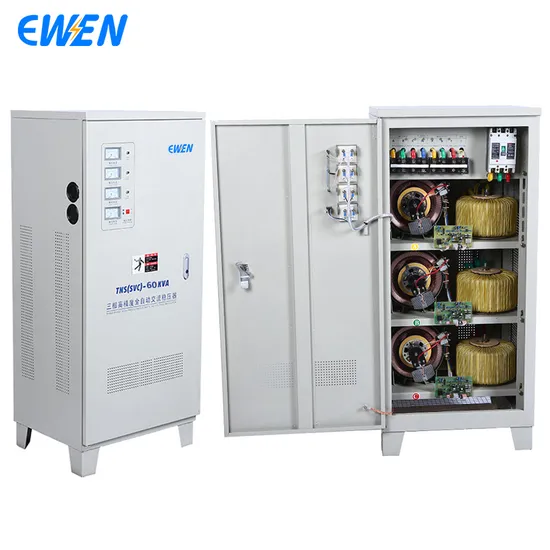

This part shows the wiring position and the inner structure of the automatic voltage stabilizer.
Product Cases
Ewen Electrical has been dedicated to designing customized products for our customers. If you have specific technical requirements, the AVR could be customized according to your needs.
Product Applications TNS voltage regulator is widely applied for voltage regulation of various electrical equipment, including CNC machine, laser-cutting machine, printing machine, medical device, welding machine, motor, and other electrical appliance with large starting current.
