Construction 35 Ton 37 Ton Cheap Mining Excavator with Breaker

Construction 35 Ton 37 Ton Cheap Mining Excavator with Breaker

US$138,000.00-158,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
37 ton
Type
Crawler Excavator
Usage
Mining Excavator
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
>1.5m³
Size
Large-Scale
Certification
CE, ISO9001: 2000, TUV
Condition
New
Maximum Digging Height
10110 mm
Maximum Dumping Height
6970 mm
Maximum Digging Depth
6995 mm
Maximum Vertical Digging Depth
5460 mm
Maximum Digging Distance
10840 mm
Maximum Digging Distance at Ground Level
10630 mm
Working Device Minimum Turning Radiu
4330 mm
Engine Model
Wp9h
Engine Type
6-Cylinder
Displacement
8.8L
Rated Power
220/2000kw/Rpm
Type of Hydraulic Pump
Plunger Pump
Rated Working Flow
2X300L/Min
Bucket Arm Digging Force
174kn
Bucket Digging Force
254kn
Transport Package
RO-RO
Specification
11265*3200*3290mm
Trademark
HW
Origin
China
HS Code
8429521200
Production Capacity
200 Units /Month

Product Description

Product Description:

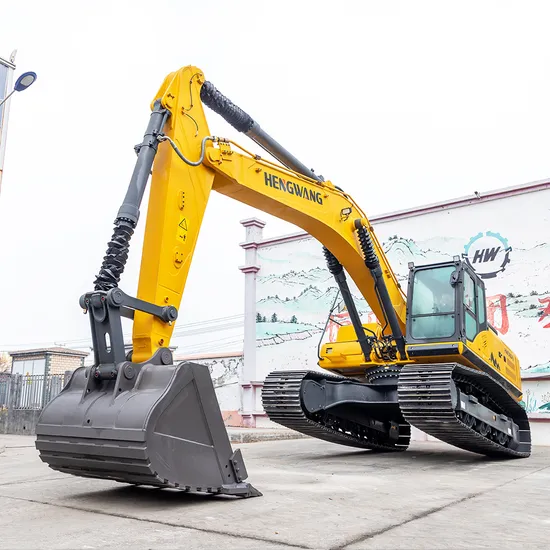

Hengwang HW 375 37 ton heavy duty equipment construction excavator adopt Weichai WP9H engine, engine long warranty. The operating efficiency is 10% higher than the competing products, and the comprehensive fuel consumption is 15% lower than the competing products.The world famous hydraulic system (Kawasaki + Nabotsk), digging power, stable and reliable, smooth operation, coordinated action.
Hengwang HW 375 37 ton heavy duty equipment construction excavator have super adaptability to
working condition :
1.Heavy-duty boom bucket rod, integral casting structure, long life.
2.The bottom rib plate of the upper frame adopts the whole plate design, thickening the main frame vertical plate, and the frame is strong.
3.Reinforced anti-collision side beam, internal increase of rib plate, effectively protect the car body.
4.Enhanced four-wheel belt, suitable for mining and other bad working conditions.
5.Multi-specification boom, bucket rod, bucket easy combination, adapt to various working conditions. Can adapt to the environment temperature 51ºC high temperature; Adaptive ambient temperature -35ºC low temperature; Adaptive altitude of 4,100 meters.

Technical Parameters :
Model
Unit
HW-375
Total weight
kg
36800
Working device mode
/
Backhoe
Bucket capacity

1.8
Rated power
Kw
220
Dimensions(LxWxG)
mm
11265*3200*3290mm
Fuel tank capacity L
620
Cooling system
L 35
Engine oil capacity L 30
Hydraulic oil tank/system capacity L 300/420

Product Details :
Intelligent control system to achieve a high degree of power system and hydraulic system matching, improve operational efficiency, reduce fuel consumption.

Human-machine friendly new generation of intelligent electronic control system, so that your machine working state in control.

Electrical components centralized layout, coolant filling, air filter replacement, power supply switch within reach.
Fuel filter element is placed at the left door, oil filter element is placed at the right door.
Rear open hood, more convenient maintenance
Hengwang HW 375 37 ton heavy duty equipment construction excavator accessories :
Crushing hammer, soil stripping device, wood grab, stone grab, hydraulic rammer, quick change device, crushing hammer pipeline
Hengwang HW 375 37 ton heavy duty equipment construction excavator applications:
Standard or full-sized excavators, sometimes called "crawler" excavators, make up the largest volume of excavators on the market and this class is most common in commercial construction. Standard excavators not only offer more power and reach, but their hydraulic systems make them capable of handling multiple tool attachments.
