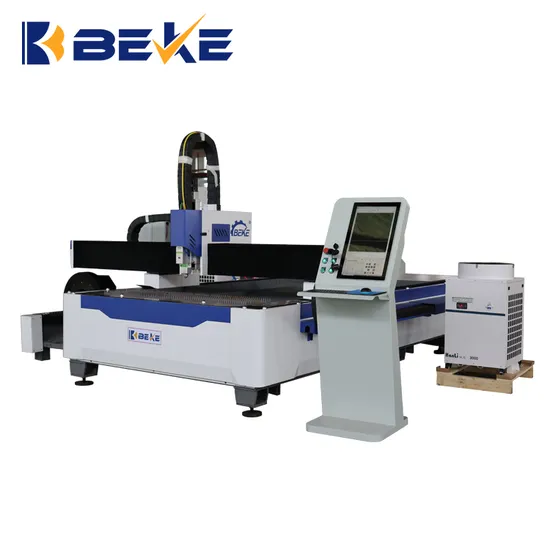

Hot Sale 3000W CNC Metal Sheet and Tube Fiber Laser Cutting Machine
Basic Info.
Model NO.
BK-3000W-D220-6M
Application
Agriculture Machinery, Aerospace Industry, Automotive Industry, Advertising Industry
Cooling System
Water Cooling
Technical Class
Continuous Wave Laser
Applicable Material
Metal
Structure Type
Desktop
Laser Classification
Fiber Laser
Laser Technology
Fiber Laser Cutting
Laser Type
Fiber Laser
Cooling Method
Water-Cooling
Standard Output Power
3000W
Effective Cutting Range
3000mm*1500mm
Rated Power Consumption
3kw
Cuttable Material
Stainless Steel, Carbon Steel, Aluminum, Copper
Laser Repetition Rate
Cw
Laser Wavelength
1070nm
Transport Package
Container Directly
Specification
4800*2200*1800
Trademark
BEKE
Origin
China
HS Code
8456110090
Production Capacity
50 Set/Month
Product Description
Product DescriptionProduct Parameters
| Model | BK-3015-3kw |
| Output power | 3000W |
| Laser type | Fiber Laser |
| Laser wavelength | 1070±10nm |
| Laser repetition rate | CW |
| Output power stability | ±1% |
| Minimum cutting line width | 0.2mm (material below 0.4mm) |
| Maximum cutting width | 3000mm×1500mm |
| Mass production thickness | ≤25mm (carbon steel), oxygen purity above 99.95% ≤16mm (stainless steel), nitrogen purity over 99.999% |
| Workbench mechanical precision | ±0.03mm/m |
| Repeatability | ±0.02mm/m |
| Software | The software has the function of segment cutting |
| Power | Three-phase five-wire AC 380V±5%, 50Hz±1% |
| Remarks: The cutting material carbon steel is Q235, and stainless steel is 304. The surface of the material must be free of oil, rust, paint and scale, meeting the national ISO standard. | |
Main Configuration
| No. | Item | Model | Brand |
| 1 | Fiber laser cutting machine | BK-3015/3000W | BEKE technology |
| 2 | Cutting head | Raytool | Swiss |
| 3 | Laser | Raycus | China |
| 4 | Servo drive and motor | Fuji | Japan |
| 5 | Special CNC cutting system | Cypcut | China |
| 6 | Laser specific chiller | Hanli/Tongfei | China |
| 7 | Pneumatic components | SMC | Japan |
| 8 | Proximity switch, etc | Schneder | France |
| 9 | Precision rack | ROR | German |
| 10 | Reducer | Modori | France |
