US$0.85-5.90
|
500 Pieces
(MOQ)
|
Basic Info.
Certification
Msha & BV & GOST & Ma & Dekra & IATF 16949 & Dakks
Working Pressure
40–250 Bar / 580–3625 Psi
Impulse Times
200,000 Times
Media
Mineral and Biological Oils, Glicol-Water Based, W
Packing Type
Roll, Pallet, Reel
Ferrul
No-Skive Type Dpfr13
Insert
Dpxr13-Xx (X: Can Choose)
Cover
Anti-Abrasive Synthetic Rubber, Resistant to Oils,
Reforcement
4 Layers of High Tensile Steel Wire Spiral up to S
Applicable Specs
SAE 100r13 Ts 10548 / Pg-G-32010 ISO 1307 En 1804-
Transport Package
Roll, Pallet, Reel
Production Capacity
8000m/Day
Product Description

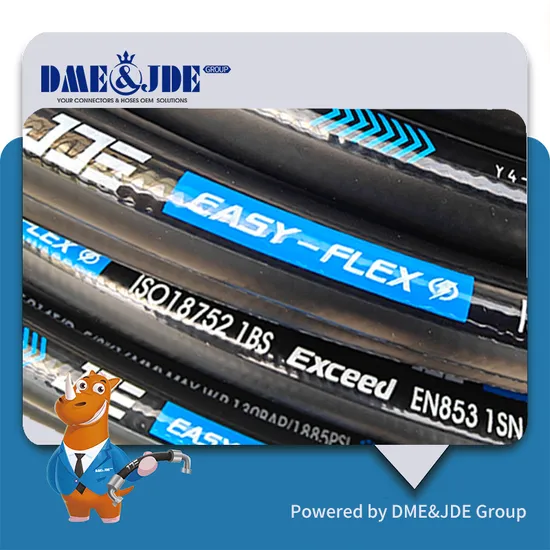

Wire Braid Hydraulic Hose (SAE 100R1AT/DIN EN853 1SN) Product Description
Applicable Specs:
• DIN EN853 1SN • EXCEEDS SAE 100R2AT • ISO 1436:2009 • ISO 1307
• PN-EN ISO 8030 / PN-EN 13463 • PN-EN 1804-3+A1 / PN-EN ISO 4413 • ISO 6805
• EN 13463 • PN-G 32010
Product Parameters
Part Number | Hose Size | I.D. | R.O.D. | O.D. | Operating Pressure | Burst Pressure | Bend Radius | Weight | Length Per PCS | Ferrule |
I.D. | Dash Size | mm | inch | mm | mm | mm | bar | psi | bar | psi | mm | kgs/m | meter | DME Code |
EAS 221101-05 | -03 | 4.8 | 3/16'' | 4.6-5.4 | 9.0-10.0 | 12.5 MAX. | 250 | 3625 | 1000 | 14500 | 90 | 0.240 | 50/100 | DPF2T-03 |
EAS 221101-06 | -04 | 6.4 | 1/4'' | 6.2-7.0 | 10.6-11.6 | 14.1 MAX. | 225 | 3262.5 | 900 | 13050 | 100 | 0.255 | 50/100 | DPF2T-04 |
EAS 221101-08 | -05 | 8.0 | 5/16'' | 7.7-8.5 | 12.1-13.3 | 15.7 MAX. | 215 | 3117.5 | 860 | 12470 | 115 | 0.304 | 50/100 | DPF2T-05 |
EAS 221101-10 | -06 | 9.5 | 3/8'' | 9.3-10.1 | 14.5-15.7 | 18.1 MAX. | 180 | 2610 | 720 | 10440 | 130 | 0.390 | 50/100 | DPF2T-06 |
EAS 221101-12 | -08 | 12.7 | 1/2'' | 12.3-13.5 | 17.5-19.1 | 21.4 MAX. | 160 | 2320 | 640 | 9280 | 180 | 0.472 | 50/100 | DPF2T-08 |
EAS 221101-16 | -10 | 16.0 | 5/8'' | 15.5-16.7 | 20.6-22.2 | 24.5 MAX. | 130 | 1885 | 520 | 7540 | 200 | 0.581 | 50/100 | DPF2T-10 |
EAS 221101-19 | -12 | 19.0 | 3/4'' | 18.6-19.8 | 24.6-26.2 | 28.5 MAX. | 105 | 1522.5 | 420 | 6090 | 240 | 0.690 | 50/100 | DPF2T-12 |
EAS 221101-25 | -16 | 25.4 | 1'' | 25.0-26.4 | 32.5-34.1 | 36.6 MAX. | 88 | 1276 | 352 | 5104 | 300 | 0.830 | 50/100 | DPF2T-16 |
Product Show
Quality Control
Packaging & Shipment
International Exhibition
Application Scenario Certificate
Company Profile DME&JDE Group is a company specializing in the production of high-quality hydraulic hoses, fittings, and assemblies. In addition, it provides a series of supporting products to offer clients comprehensive solutions. These supporting products include Crimping Machines, Workstations, Transfer Trolleys, File Cabinets, Cleaning Equipment, Hose Whip Restraining System, Gourand Shape Grips, Plastic Spiral Protector, Heat Shrink Cap, and more. DME&JDE Group is committed to offering clients comprehensive and improved solutions, constantly developing and launching new supporting products and equipment to meet evolving needs and requirements.
Related Product DME&JDE Group is a company specializing in the production of high-quality hydraulic hoses, fittings, and assemblies. In addition, it provides a series of supporting products to offer clients comprehensive solutions. These supporting products include Crimping Machines, Workstations, Transfer Trolleys, File Cabinets, Cleaning Equipment, Hose Whip Restraining System, Gourand Shape Grips, Plastic Spiral Protector, Heat Shrink Cap, and more. DME&JDE Group is committed to offering clients comprehensive and improved solutions, constantly developing and launching new supporting products and equipment to meet evolving needs and requirements.
Material Support
FAQ 1. Q: What is your sample policy?
A: Free samples available if we have ready part in stock, shipping cost is on buyer's side.
2. Q: How do you guarantee your quality and what after-sale service do you have?
A: Our factory follow the quality standard in every produce process. Any quality problem within 12 months after purchase, we are responsible for it.
3. Q: How do you ensure the quality?
A: We have strict QC process:
1). For raw material;
2). During the half of production;
3). Final QC before shipment
More details please review production details.
4. Q: What is your terms of price?
A: EXW, FOB, CFR, CIF, DDU.
5. Q : How do you make our business long-term and good relationship?
A: Build Trust: Trust is the foundation of any long-term relationship. To establish trust, we need to be transparent in our dealings with customers and provide consistent and reliable services.
Listen to Customers: Listen carefully to customers' feedback, understand their needs, and customize solutions according to their requirements.
Communicate: Maintain regular and open communication with customers, keeping them informed about updates, new products, and services.
Reward Loyalty: We value our loyal customers and reward their business with discounts, special offers, and personalized services.
Provide Excellent Customer Service: We ensure our customer service is top-notch, responding promptly to inquiries and complaints, and going above and beyond to provide exceptional service that exceeds customers' expectations.
6. Q: What certificates do you have?
A: Each hose we produce has obtained corresponding certificates, especially ISO and ABS system certificates, which is the recognition of our production capacity.
7. Q: Is it possible to visit your factory?
A: We warmly welcome you to visit our factory at any of your convenient time.
