4080AH/AHR/AHD/CNC
Type
Surface Grinding Machine
Automatic Grade
Automatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Certification
CE, ISO 9001
Transport Package
Wooden Frame
Specification
2580*2270*1900
Production Capacity
200PCS/Month
Product Description
Product Description

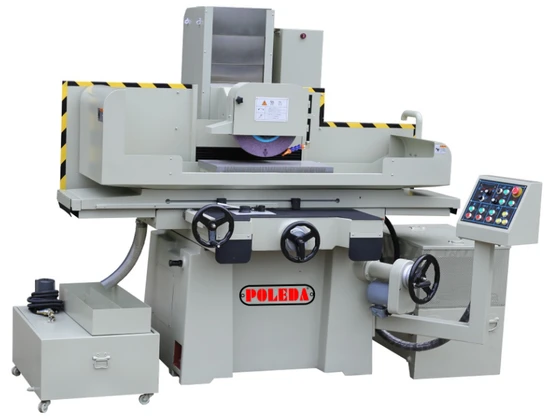

4080AHR machine features:
1. Crafted from high-grade cast iron, the main castings undergo meticulous annealing and shock aging treatments to eradicate internal stress, ensuring remarkable stability and minimal deformation.
2. Enhanced work efficiency is achieved through the robust and stable frame, specifically designed to meet the demands of both heavy cutting and fine grinding operations.
3. The guide rail boasts a superior wear-resistant adhesive coating, complemented by precision shovel flowers, guaranteeing enhanced accuracy and durability.
4. Achieve unparalleled precision with a spindle arm end swing limited to just 0.003mm.
5. Experience unparalleled lightness, accuracy, and durability with our precision ball screw technology.
6. Independently designed, the hydraulic system ensures minimal vibration and noise, enhancing operation quality.
7. Benefit from a thoughtfully engineered cable pipeline design that is resilient and reliable.
8. The lubricating oil system features a self-test, fault alarm, and automatic cycle, with a pressure sensor ensuring no rail lubrication deficiencies.
Product Parameters
PCA 4080 models include: 4080AH, 4080AHR, 4080AHD, 4080NC, and 4080CNC.
Parameter list | parameter | unit | PCA4080 |
ability | Table area(x*y) | mm | 800*400 |
| Maximum left and right movement(x) | mm | 950 |
| Maximum amount of movement before and after(Y) | mm | 460 |
| Maximum distance from table to spindle center | mm | 510 |
| Maximum weight of table | kg | 600 |
workbench | Table T-slot | mm×N | 14*3 |
| Table speed | m/min | 5-25 |
front and rear structure | Front and rear hand wheel feed (1 grid /1 turn) | mm | 0.02/5 |
| Automatic feed front and rear | mm | 0.1-8 |
| Dart back and forth(50HZ/60HZ) | mm/min | 990/1190 |
Grinding wheel | Grinding wheel size | mm | 350*40*127 |
| Grinding wheel speed(50HZ/60HZ) | R.P.M | 1450/1740 |
Up and down structure | Upper and lower hand wheel feed (1 grid /1 turn) | mm | 0.005/1 |
| Up and down fast moving speed | mm/min | 230 |
motor | Spindle motor | HXP | 10*4 |
| Up and down drive motor | W | 150 |
| Hydraulic motor | HXP | 3*6 |
| Flush motor | W | 90 |
| Front and rear drive motor | W | 80 |
dimension | Overall dimensions of the machine (L × W × H) | mm | 2580×2270×1900 |
| Weight (approx) | kg | ≈2600 |
Standard configuration
1. Includes one 400 x 800mm magnetic sucker.
2. Equipped with a comprehensive cooling water tank system.
3. Comes with a set of flange and flange wrench.
4. Includes a set of horizontal adjusting screws and foot pads.
5. Features one hydraulic system (note: hydraulic oil not included).
6. Supplied with one standard grinding wheel 350*40*127mm (46#).
7. A set of wheel removal screw, pen holder, and pen included.
8. Contains one adjustable disk controller for versatility.
9. Includes a set of grinding wheel balance frame and balance rod.
10. Equipped with quick function capabilities for up and down adjustments.
11. Toolbox, standard tools, and a comprehensive instruction manual set provided.
Remark
AH Left and right hydraulic movement, front and back stepping, with manual up and down control.
AHR Left and right hydraulic movement, front and back stepping, with rapid lift for up and down movements.
AHD Left and right hydraulic movement, front and rear stepping, with servo automatic control for up and down.
NC Left and right hydraulic movement, front and rear servo control, with servo automatic up and down control.
CNC X, Y, Z axis fully integrated CNC control for superior precision.
