Forklift Part Attachment Revolving/Sideshifting Bale Clamps Sideshifter for Heli Clark Mitsubishi Linder

Product Description

Product Description Bale clamps can efficiently handle many types of baled products such as cotton, synthetic textile bales, corrugated, newsprint, rag, hay, metal and other scrap bales without wrok platform condition.

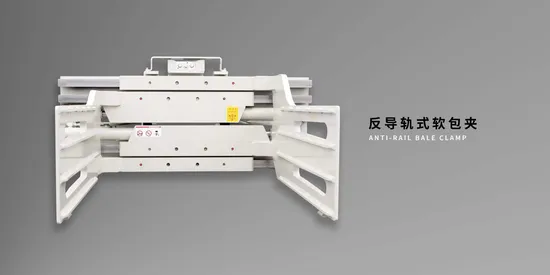

Detailed Photos
Product Parameters

Revolving Bale Clamps
Capacity @ Load Center	Catalog Order NO.	Mounting Class	Opening Range	Arm Height	Arm Length	Frame Width	Hook Spread	Arm Thickness	Weight	Effective Thickness	Vertical Center of Gravity	Horizontal Center of Gravity	Available Forklift
Kg @ mm			O (mm)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	(kg)	ET (mm)	VCG (mm)	HCG (mm)	(t)
1900@500	RJ19RT-A1	II	445-1670	418	990	1040	815	75	530	198	221	275	1-2.5t
1900@500	RJ19RT-A2	II	460-1700	418	1190	1040	814	75	710	257	303	355	1-2.5t
1900@500	RJ19RT-A3	II	580-1960	418	1190	1040	814	75	760	252	295	339	1-2.5t
2700@500	RJ30RT-B1	III	570-1880	460	1200	1010	814	75	790	259	313	371	3-4.5t
2700@500	RJ30RT-B2	III	650-2020	460	1200	1100	814	75	810	259	313	369	3-4.5t

Notes:

1. Please obtain the actual comprehensive bearing capacity of forklift/attachment from the forklift factory.

2. The forklift truck needs to add 2 groups of oil lines.

3. The arm thickness is the needed minimum wedge gap size when clamping, but not the real thickness.

Features:

1. Two-way hydraulic locks for rotating oil lines ensure safety when working.

2. High-performance alloy steel plates for left and right clamping panels.

3. The connection blocks are integrally charged with good anti-bending performance.

4. 360 degrees of rotation.

5. Rotating oil hinge has the self-locking function.

Company Profile
Anqing Liandong Engineering Trucks Attachments Co., Ltd. (hereinafter referred as LDSJ) is a holding subsidiary of Anhui Forklift Group Co., Ltd. and was created in January 2011. It integrates R & D, manufacturing, sales and service of construction machinery attachments and parts. The products are widely used in papermaking, storage, tobacco, port, chemical industry, construction, smelting and many other industries. They are highly efficient and intelligent handling equipment for mechanized loading and unloading, stacking and short-distance handling.
At present, the product type has reached more than 3000 kinds and key parts have been independently developed and manufactured. Many products have independent intellectual property rights and obtained national patents, and LDSJ actively participates in and lead the formulation of industry standards for construction machinery attachments.
The company has high-efficiency digital intelligent equipment such as CNC cutting machine, welding robot, machining center, CNC lathe, shot blasting machine, washing machine and painting line. It also has advanced physical and chemical laboratories and perfect product testing facilities. LDSJ is totally committed to continuous quality improvements, from product design to after-sale service, providing excellence to customers worldwide. All this in full observance of a fair social policy towards employees, customers, suppliers and society in general while respecting the environment. It has passed ISO9001, ISO14001, OHSAS18001 system certifications and ISO3834-2 international welding quality system certification.
LDSJ does more than simply sell attachments. It is the expert in material handling and is committed to finding the right solutions to help the customers' business to be more efficient, more fruitful, save time and cost-thereby increasing profitability.
LDSJ will adhere to the requirements of new development concept, speed up the pace of product structure adjustment and upgrading, and continue to promote the high-quality development of the enterprise!
