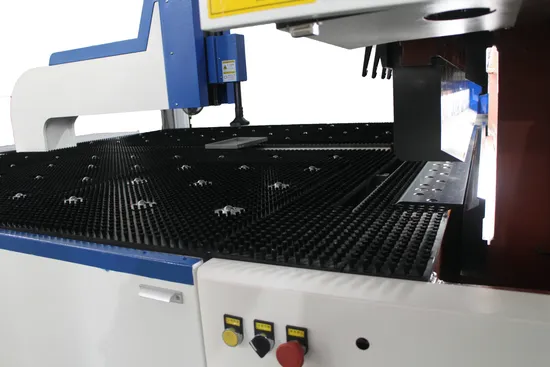

CNC Sheet Steel Metal Plate Hydraulic Metal Rolling Bending Machine
| US$75,000.00-80,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
DES-2000
Warranty
1-year
Condition
New
Certification
RoHS, ISO 9001:2000, ISO 9001:2008, CE
Automation
Automatic
Suitable for
Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Type
Hydraulic Bending Machine
Bending Length
2000mm
Bending Height
175mm
Bending Thickness
0.35mm
Bending Degree
0-360°
Accuracy of Bending Angle
±1°
Accuracy of Feeding Length
±0.1mm
Clamping Method
Sucked or Pressing
Electrical Components
German Imported
Windows CE
Windows CE
Noise Level
≈40dB
Peak Power
22kw
Weight
18.5tons
Transport Package
Pallet, Foam and Plastic Film
Specification
5900* 2900* 3200MM
Trademark
Dontzer
Origin
China
HS Code
8462219000
Production Capacity
300 Sets/Year
Packaging & Delivery
Package Size
1203.00cm * 235.00cm * 239.00cm
Package Gross Weight
18500.000kg
Product Description
Max. 6.56 Feet Metal Sheet,13 Axes, Tube / Pipe Bending Machine CNC Stainless Steel Plate / Panel Rolling Bender Machine Price
Product Parameters
| Model | DES-1200 | DES-1400 | DES-2000 | DES-2500 | |
| Max. Continuous Bending Speed | ≤0.5sec/each bending | ≤0.2sec/each bending | ≤0.2sec/each bending | ≤0.2sec/each bending | |
| Max. Bending Length | 1200mm | 1400mm | 2000mm | 2500mm | |
| Bending Height | 175mm | 175mm | 175mm | 175mm | |
| Max. Bending Thickness | stainless steel | 1.0mm | 1.0mm | 1.0mm | 1.0mm |
| Carbon steel | 1.5mm | 1.5mm | 1.5mm | 1.5mm | |
| aluminum | 1.6mm | 1.6mm | 1.6mm | 1.6mm | |
| Or it can be customized. | |||||
| Min. Bending Thickness | 0.35mm | 0.35mm | 0.35mm | 0.35mm | |
| Bending Degree | 0-360° | 0-360° | 0-360° | 0-360° | |
| Accuracy of Bending Angle | ±1° | ±1° | ±1° | ±1° | |
| Accuracy of Feeding Length | ±0.1mm | ±0.1mm | ±0.1mm | ±0.1mm | |
| Operating system | Windows CE | Windows CE | Windows CE | Windows CE | |
| Clamping Method | Sucked or pressing | Sucked or pressing | Sucked or pressing | Sucked or pressing | |
| Throat Depth | 180mm or customized | 180 mm or customized | 180 mm or customized | 180 mm or customized | |
| Min. One-step Forming Size on All Four Sides | 150*150mm | 150*150mm | 150*150mm | 150*150mm | |
| Min. One-step Forming Size on Two Sides | 220*220mm | 220*220mm | 220*220mm | 220*220mm | |
| Noise Level | ≈40db | ≈40db | ≈40db | ≈40db | |
| Outline Dimension (mm) | 3200* 2100* 2900 | 3400* 2300* 2900 | 5900* 2900* 3200 | 6000* 3400* 4200 | |
Bending model
Product category
Certifications
Company Profile
FAQ
1. How about the delivery time?
Generally it's 15-30 days based on the model.
2. How is the warranty time?
1 year after installation.
Lifetime free technical support.
3. How to choose the suitable machine?
Please advise us the material/ thickness/ dimension of metal sheet, and the punched drawing.
