China Factory Small Mini Tractor 3.5 Ton 4X4 1m3 110HP Multi-Function Digger Excavator Retroexcavadora Wheel Backhoe Loader Price with Towable

Product Description

China Factory Small Mini tractor 3.5 ton 4X4 1m3 110hp multi-function Digger Excavator retroexcavadora wheel Backhoe Loader price with towable
Main Overseas Business scope

Our main products
Our main products inlcuding excavators, wheel loaders, bulldozers, backhoe loaders, forklift trucks, mining trucks, road rollers, concrete pump truck and other engineering and construction machines. if you need any machinery, pls don't hesitate to contact us soon!
Our main Overseas Business Scope
- All types of brand new and used engineering equipment&Machinery
- Special modified vehicle
- tractor truck and semitrailer for machinery transportation
- Construction equipment&Machinery
- Spare parts- Service &Maintenance

Product Parameters

Technical characteristics

Operating weight	10400KG	Final drive Reduction type	First final drive reduction
Transport dimension		Rated load of axles	4/18.5t
L*W*H	6030 X 2420 X 3500mm	Transmission system
Wheel base	2250mm	Torque converter
Min. Ground clearance	300mm	Model	YJ280
Bucket capacity	1.0m3	Type	Single-stage three elements
Breakout force	38KN	Max. Efficiency	84.4%
Loading lifting capacity	2500KG	Inlet pressure	0.4Mpa-0.55 Mpa
Dumping height	2650mm	Outlet pressure	1.2Mpa-1.5 Mpa
Dumping reach	1025mm	Cooling mode	Oil-cooling pressure circulation
Loading cutting depth	52mm	Gearbox
Backhoe capacity	0.3 m3	Type	Countershaft power shift type
Max. Digging depth	4085mm	Oil pressure of clutch	1373Kpa-1569 Kpa
Digging slewing amgle	190°	Gears	2 Forward and 2 reverse gears
Max. Tractive force	39KN	Travel speed	28Km/h
Engine		Tyre
Model	Weichai	Model	14-17.5/19.5L-24
Type	turbocharging four-stroke	Air pressure of front tyre	0.22 Mpa
Cylinder-inner diameter*stroke	4-108x132	Air pressure of rear tyre	0.22 Mpa
Rated power	75KW/100HP	Brake system
Rated speed	2400r/min	Service brake	Air over oil caliper brake
Min. Fuel consumption	235g/kw.h		External type
Max. Torque	400N.m		Self-regulation
Displacement	4.3L		Self-balance
Steering system		Parking/ emergenly brake	Operation power implementing brake
Diverter model	BZZ5-250		Manual operation power terminating brake
Steering angle	±36°	Hydraulic system
Min. Turning radius	6581mm	Bucket digging force	46.5KN

Detailed Photos

Product Display:

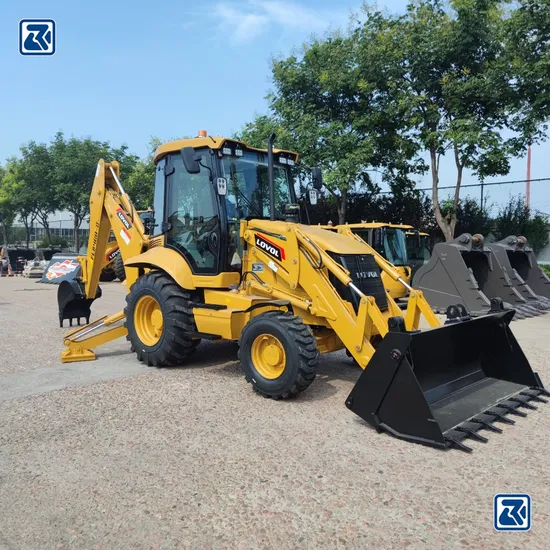

Backhoe loader details show:
Standard configuration:
Learn more from the details of our backhoe loaderAttachment range:
Excavator Attachment range:Wheel Loader Attachment range: Company Profile

Welcome to visit our factory!
THE SALES OF R&L PRODUCTS INVOLVE MORE THAN 120COUNTRIES AND REGIONS AROUND THE WORLD WITH MORE THAN 300 SALES CHANNELS
With more than 300 sales channels, such as Europe, America, Southeast Asia,Middle East, Central Asia,Latin America, Africa, Australia, New Zealand. Etc, forming a "fve in one" global market covering sales,service, parts supply, user training and information feedback.A KEEN MARKET SENSE AND EXCELLENT PRODUCT DEVELOPMENT CAPABILITIES
Since 2012, Lovol heavy industry group has deployed engineering technology centers overseas. Relying onJapan's technological resource advantages in the feld of construction machinery, it has continuouslyabsorbed and transformed high-end research and development results from Europe and the United States,continuously accumulated its R&D strength, carried out technological innovation, and realized content Typegrowth. At the same time, in the feld of product manufacturing, adhering to the brand mission of"providingsystematic solutions for qlobal urban construction", based in Qingdao Economic and TechnologicalDevelopment Zone, building a world-class "lean and intelligent manufacturing" model factory is the highestequipment automation in China, with the highest production effciency. One of the highest heavy equipmentmanufacturing bases.
SPARE PARTS SUPPORT & IFE-TIE SPAREPARTS SUPPIY
We provide spare parts to our customers, and no matter how many years your R&Lma-chine has been used, you can always reply on us to supply spare parts. Certifications

Our certificates: quality always comes first! After Sales Service

Our after-sale service
Packaging & Shipping

Our packing and delivery
