200kg Resin Additives Average Ingredient Plastic Raw Material Color Mixer Machine Gravimetric Blender Doser

Product Description

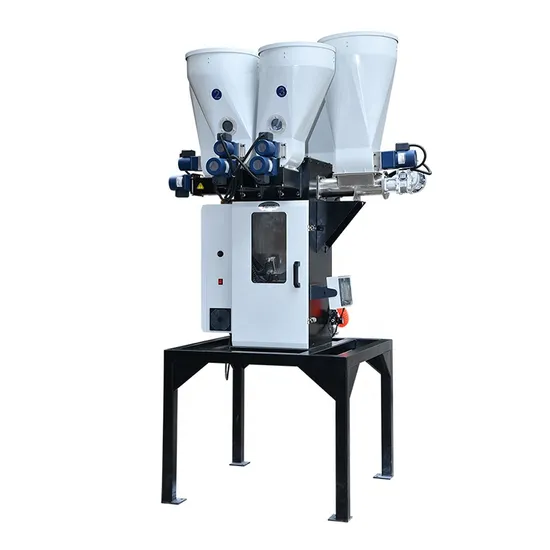

200kg Resin&Additives Average Ingredient Plastic Raw Material Color Mixer Machine Gravimetric Blender Doser
Description:
CGB series gravimetric blenders can be used in the fields of injection moulding machines, blow moulding machines
and extrusion lines for proportionally precise mixing of several types of materials with an accuracy of ±0.3%.
This series machines adopr PLC controller, using the advanced control algorithm, to ensure the series products
of high quality and comprehensive technical characteristics, make the product outstanding performance,
stable operation, safe and reliable.
Dosing range:
Main component 5 - 100%, Dosing range: additive 0.5 - 10% - Power supply 1PH/230V 50HZ for CGB50 - CGB400, 3PH400V50HZ for CGB600 - CGB3000.
Specifications

Model	Number of ingredients	Average throughput (kg/h)	Batch Capacity (kg)	Main material ratio (%)	Additive ratio (%)	Main material hopper (L)
CGB-400	4(5/6)	400	4.5	5~100	0.5~10	50
Model	Additive hopper (L)	Mixing chamber (L)	Power supply (V/Hz)	Total power (kW)	Compressed air (kgf/cm2)	Max. noise level (dB)
CGB-400	50	20	1Φ230/50	0.4	6~8	<75

Remarks:
1. The standard machine is not suitable for powder material.
2. The capacity is tested based on continuous running of the machine with material density of 0.8, dia. 3-4mm.
3. 5 or 6 components machine can be particularly made on request.
4. We reserve the right to change specifications without prior notice.
Features:
Modular design and standard components for easy cleaning and changing of the parts.
Stepping drive motor to ensure high accuracy and wide output range.
Can store and read upto 50 recipes for a quick start of the operation.
Dosing screws are chrome plated for durability.
Adopt microprocessor, easy to operate.
Models for more than 2 additives can also be available.
Optional accessories
Stainless main material hopper
Level sensor in dosing hopper.
Double screw and bridge broken device for powder material.
PLC plus touch screen control
Mixing base(It is standard for double color doser, but optional for single

The Installation at site of MB feeder masterbatch blender
Packages for the Blender:
Clients visiting and after service
1. Welcome all your visiting and 3rd party inspection before order and before shipping.
2.The installation service at site and online is available
At site Installation for USA clients
About Alpha Company
Alpha Technical Industrial Co., Ltd. is a collection of scientific research and development and production of wire and cable equipment and a variety of efficient energy-saving extrusion production line of key enterprises, so far, the main product including wire and cable Insulation and Sheathing production Line, TQD series Pneumatic Type belt Puller, LF series Portal Type Pay-off, LSP series Portal Type Take-up, Various Wire Accumulator, Capstan Haul-off, Pay-off & Take-up, Cooling Water Trough, and Optical Fiber Equipment, Communication Cable Equipment, Signal Cable Equipment, and spare parts like MB feeder, accumlator,meter counter ect.
Our company has a technical administration team who engages wire and cable equipment industrial more than twenty years, as well as experienced engineer and skilled workers, our honest business reputation and good sales achievement, win the trust from our domestic and overseas customers, the products are exported to United States, France, Spain, Portugal, New Zealand, Brazil, Mexico, Chile, South Africa, Zambia, Egypt, South Korea, Singapore, Indonesia, Thailand, Iran, etc.
FAQ − Q: Are you the manufacturer or trading company?
A: We are the manufacturer. We have a group of highly qualified engineers and experts, who have been working in the field of OFC equipment for more than ten years.
− Q: What is your company's main production?
A: We specialized in optical fiber and optical cable machine researching and manufacturing. Our products include Optical fiber coloring and rewinding machine series, Optical fiber secondary coating line series, Optical cable stranding line, Optical fiber cable sheathing line series and other optical cable equipment.
− Q: What can we offer our customers?
A: Our professional production and technical personnel can train our customers' employees and ensure the smooth production of customers. And will provide our customers with after-sales service.
− Q: How long is the machine warranty?
A: Warranty period of one year (since the completion of mechanical debugging at the buyer's factory)
− Q: Why do I choose your company?
A: We have more than 10 years of professional experience in the production of cable machinery, providing high-quality, high-security products.
We have an experienced team of skilled workers and engineers.
We can support overseas training engineers.
We can customize the design, to accept the customer's sample design.
We can provide customers with after-sales service.

In order to help you make a reasonable proposal and design,
could please help to check how many output capacity will be per hour?
