Hydraulic Reversible Turning Machine Plow for Agricultural Equipment Tractor

Product Description

Hydraulic reversible turning machine plow for agricultural equipment tractor Advantage

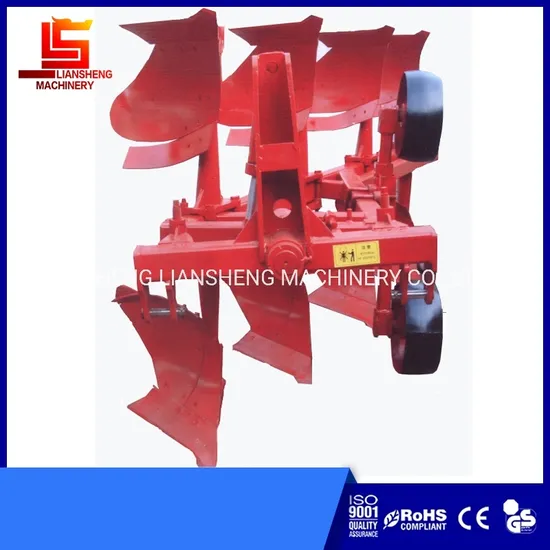

The 1LF Reversible Plough is a unique implement, which is directly mounted to the tractor. This is a hydraulically operated basic implement for preparation of land. The reversible plough is very useful in hard and dry trashy stumpy land condition and in soil where scouring is a problem. Heavy-duty clearance allows the plough to operate under heavy crop residual. This plough works on both the left and right side and automatically reverses the position while ploughing hence less time & diesel consumption. This plough is more suitable for big pieces of land.
The Plough handles toughest ploughing job with outstanding penetration performance. The under frame and unit-to-unit clearance are adequate to cope with trashy conditions. Perfect alignment of the plough beams carrying the Mold Board bottom is maintained by virtue of the frame construction. The Mold Board will retain their mirror finish at all time contributing to well turn furrows. The plough has special wear resistant steel bottoms with bar points for toughest ploughing jobs. Bar point bottom ensures longer life as it can be extended or reversed and re-used till the last possible length.
Feature
1.The under-frame and unit-to-unit clearance are adequate to cope whith trashy conditions
2.Adding an extra furrow or repositioning units to allow for extra clearance is quick and easy
3.The plough has special wear-resistant steel bottoms with bar points for toughest ploughing jobs
4.Bar point bottoms ensure longer life as they can be extended or reversed and re-used till the last possible length

Model		1LF-330	1LF-430	1LF-530	1LF-235	1LF-335	1lL-435
No.of bottoms		3	4	5	2	3	4
Working width	mm	900	1200	1500	700	1050	1400
Working depth	mm	160-250			200-300
Matched power	hp	55-65	65-90	100-120	40-50	50-70	70-90
Overall weight		550	750	950	450	650	900
Linkage	Stand three point mounted

Model	unite	1SLF-435	1SLF-535	1SLF-635	1SLF-735
Number of bottoms		8	10	12	14
Working width	m	1.4	1.75	2.1	2.45
Working depth	mm	350~450
Overall weight	kg	1040	1250	1450	1618
Matched power	hp	80-100	100-120	145	160
Linkage	Standard three point mounted

MODEL	UNIT	1LTF-450	1LTF-550
NO.OF BOTTOMS		Up:4/below:4	Up:5/below:5
WORKING WIDTH	MM	2000	2500
WORKING DEPTH	MM	350-450	350-450
TRACTOR POWER	HP	160-180	180-220
Weight	KG	1550	2000
