ABS Plastic Air Warm Water Hot Pump Swimming Pool Heating Pump

Product Description

Product Description

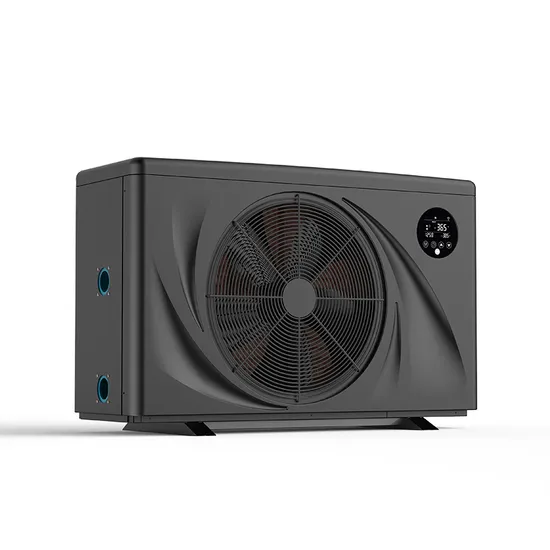

Power World Quiet Pro Series Swimming Pool Heat PumpThe appearance of the INVERTER Quiet Pro Series Swimming Pool Heat Pump adopt newest design in 2021, which is specially designed for swimming pools from 15 to 130m3. This series uses ABS blister material,adopting a three-dimensional craft-"wind blade shape" screwless design style,which effectively accomplishes reducing noise with multiple noise reduction methods while performing beauty. It is featured by good impact resistance,heat resistance,low-temperature resistance,which indicates strong durability.
Embedded LCD Control PanelThe new control panel adopts the newly designed embedded 5-button display screen in 2021 to ensure the integration of the unit. The screen can be easily touched (partially touched).The control panel has a built-in WIFI function,which means that with the App remote control function,you can adjust your parameters anytime and anywhere.Anti-Corrosion ABS Casing
Low-temperature impact resistance is also better.·It is featured by good gloss,hardness,toughness,and rigidity.·It has a better dyeing performance, so we have 6 colors for you to choose from.
COP as high as 15.0
COP as High as 15. 0·COP is up to 15. 0 at Air 27ºC/Water 26ºC/Humidity 80%.·
The average COP is 11. 0 during the swimming season.
Operating at air -7°C-Maximize your pool
Ultra Silent
The space where the compressor is located is wrapped with silencing materials, and a fully enclosed design is adopted to implement three noise reduction measures of sound absorption,sound insulation,and buffering for the entire unit to ensure low-noise operation.
Product Parameters

Model	PW010-KZXYC-H	PW015-KZXYC-H	PW020-KZXYC-H	PW030-KZXYC-H	PW040-KZXYC-H	PW050-KZXYC-H	PW060-KZXYC-H
Advised pool volume (m3)	15~30	20~40	25~50	30~60	40~75	55~100	55~100
Operating air temperature (ºC)	-7 ~43
Performance Condition: Air 27°C, Water 26°C, Humidity 80%
Heating capacity (kW)	7.50~1.92	9.50~2.10	11.00~2.50	14.00~3.15	17.00~3.75	20.00~4.00	24.00~4.80
Heating Capacity(Btu)	25500~6528	32300~7140	37400~8500	47600~10710	57800~13090	68000~13600	81600~16320
Consumed power (kW)	1.15~0.13	1.46~0.14	1.83~0.17	2.15~0.21	2.62~0.25	3.33~0.27	4.00~0.32
COP	6.5~14.8	6.5~15.0	6.0~14.7	6.5~15.0	6.5~15.0	6.0~14.8	6.0~15.0
COP at 50% capacity	10.50	11.00	11.00	10.50	11.00	11.00	11.00
Performance Condition: Air 15°C, Water 26°C, Humidity 70%
Heating capacity (kW)	5.80~1.42	7.2~1.50	8.5~1.65	10.7~2.40	13.0~2.65	15.6~2.85	18.7~3.42
Heating Capacity(Btu)	19720~4828	24480~5100	28900~5610	36380~8160	44200~9010	53040~9690	63580~11630
Consumed power (kW)	1.15~0.20	1.43~0.21	1.77~0.23	2.12~0.34	2.58~0.36	3.25~0.40	3.89~0.49
COP	5.0~7.1	5.0~7.2	4.8~7.2	5.0~7.1	5.0~7.4	4.8~7.0	4.8~7.0
COP at 50% capacity	6.50	6.50	6.50	6.50	6.50	6.50	6.50
Performance Condition: Air 35ºC,Water 28ºC, Humidity 80%
Cooling capacity (kW)	4.0	5.2	6.0	7.2	8.6	10.1	11.8
Sound pressure at 1m dB(A)	38~48	38~48	40~50	42~51	43~52	43~53	44~54
Sound pressure of 50% capacity at 1m dB(A)	40	40	41	43	44	44	45
Sound pressure at 10m dB(A)	18~25	18~25	19~26	22~27	23~30	24~31	25~32
Heat exchanger	Spiral titanium tube in PVC
Casing	Metal Casing
Power supply	230V/1 Ph/50Hz
Water Connection (mm)	Φ50
Rated input current at air 15ºC(A)	5.1~0.9	6.3~0.9	7.8~1.0	9.3~1.5	11.3~1.6	14.3~1.8	17.8~2.3
Advised water flux (m³/h)	2~4	2~4	3~5	4~6	6~9	8~10	9~12
Water Pressure Drop (max) kPa	2	3	4	5	5	6	8
Net weight/Gross weight(kg)	62/70	62/70	64/72	77/87	81/91	81/91	To be developed
Carton size(mm)	1000X396X640				1125X416X765
Package size(mm)(carton)	1040*410*780				1165*430*905
Package size(mm)(Polywood)	1060*430*780				1185*450*905
Loading quantity (20GP/40GP/40HQ)	78/162/162				52/104/104
Refrigerant consumption(g)	340g	430g	440g	520g	730g	780g	To be developed
Refrigerant	R32
Compressor	Panasonic
Four-way valve	Sanhua
Expansion valve	Sanhua
Frequency drive board	CHICO
Operating water temperature (ºC) *heating	9 ~40
Operating water temperature (ºC) *cooling	9 ~35

Company Profile
Power World Machinery Equipment Co., Ltd. was established in 2004. It is a high-tech enterprise focusing on the research, development, production and sales of air source heat pump products. The headquarters has located in Shenzhen, a well-developed trade city, and the factory is located in Dongguan, a prosperous manufacturing industry, and has branches in all places. Power World has strong technology and R&D strength ,and with a complete heat pump industry chain. The products involve swimming pool heat pumps, residential heating and cooling heat pumps, domestic hot water heat pumps, food drying heat pumps, industrial and commercial high temperature hot water solutions, industrial and agricultural heat pump dryers, etc. Among them, the export volume of EVI inverter heat pumps has always been among the best, ranking first in China for many years. More than 60 exporting country such like Sweden, Czech, Poland, Germany, France, Spain, Slovenia, South Africa, India, Vietnam, Thailand, Our heat pump products have the advantages of safety, high efficiency, environmental protection, low energy consumption, etc., have participated in the projects of replacing traditional boilers recommended by the national government for many times, and have been awarded the honorary title of high-tech enterprise.
Power World has a reasonable talent structure, with a number of senior engineers as the main technical backbone, and more than 500 experienced production personnel. In order to develop heat pump products that are truly suitable for market needs, the company specially hires domestic and foreign experts in the heat pump industry as consultants to closely follow the heat pump technology and industry development characteristics. Power World is committed to technology research and development and has so far obtained more than 80 product patents,and our products are I S O 9 0 0 1/ I S O 1 4 0 0 1, C E, C C C and E R P certified. From 2007 to 2008, Power World was invited by the national CCTV, Guangdong Satellite TV and other authoritative television media to accept interviews. In the fierce market competition, Power World has not changed its original aspiration, only to repay customers with the best quality and service!
FAQQ1: Are you heat pump supplier of trading company or manufacturer?A1: We are R&D and manufacturer factory. With 300,000 sq meters modern factory in Shenzhen City & Dongguan City. with OEM service provided, MOQ> 20 Units.Q2: How long is your Heat Pump delivery time?A2: Generally it is 1-5 working days if the goods are in stock. or it is 15-25 working days if the goods are not in stock, it isaccording to quantity.Q3: Do you also provide other kind of heat pump?A3: ASHP of EVI(8KW-132KW) | SWIM POOL(2KW-150KW) I Domestic heat pump(80L-300L tank size),etc.Q4: Wonder if you accept small orders?A4: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.Q5: Can you send products to my country?A5: Sure, we can. If you do not have your own ship forwarder, we can help you. Q6: Can you do OEM for me?A6: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.Q7: What's your payment terms?A7: By T/T,LC AT SIGHT,30% deposit in advance, balance 70% before shipment. Q8: How can I place the order?A8: First sign the PI,pay deposit,then we will arrange the production.After finished production need you pay balance. Finally we will ship the Goods.Q9 When can I get the quotation?A9: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
If you are interested in this product,please fill in the below and send us,we will reply you and also send you the latest product catalog and latest quotation within 1 hour!
