2022 Hot Blueberry Blackberry Gojiberry Fruit Pulp Processing Line

Product Description

2022 Hot Blueberry Fruit Pulper Processing Line
Shanghai Chase Machinery has optimized the equipment for Strawberry Blueberry Raspberry Berries Processing used for juice and jam extraction, thermal treatment and refining, in order to maximize the yield and the organoleptic properties (colour, taste aroma, etc.) of the final products. We can provide a complete set of correct solutions to meet customer needs for Berries Processing.
We design, manufacture and supply complete Strawberry Blueberry Raspberry Berries Processing Machine including:
·Receiving, Washing and Sorting System
·Crushing and Refining System
·Forced Circulation Continuous Evaporation System
·Enzymolysis and Ultrafiltration System
·UHT Sterilizing and Aseptic Filling System
·CIP Plant Cleaning System
Receiving and Elevating 1. It is advisable to install cement pools in the plant, which provides the processing line with a constant flow of raw material. 2. Fresh and ripe berries cannot be stored for over 24 hours at temperature of over 30°c.
3. Chain and plate elevators are normally used for berries elevating, which do little harm to Berries. The elevators are equipped with sprayers, letting the berries be re-washed during the processing of elevating.
4. Motors are equipped with stainless steel protective shield, which keep the motors from rain and snow in outdoor.

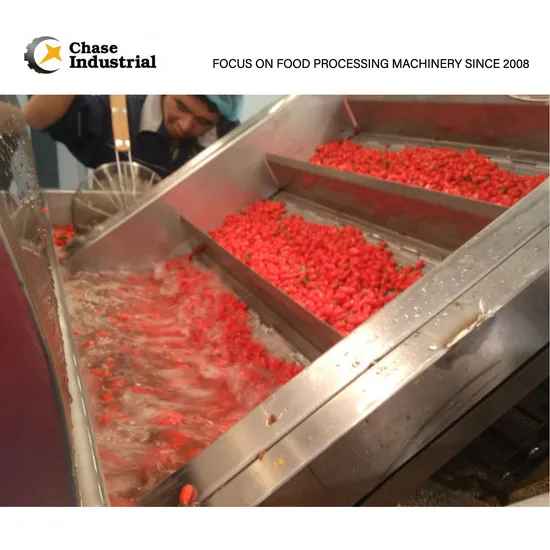

Washing and Sorting
1. Bubble washing machine/floating washing machine washes the berries by floating water, which comes from bubble generator quipped at the bottom of the machine. There is no damage brought by bubble washing while the berries are thorough washed.
2. Waste and sand sink to the bottom and are discharged by our special design.
3. Rolling bar design & speed adjustable.
4. The machine is equipped with waste conveying system, sending the waste directly to tank.
Chopping and Preheating 1. Supper-high intensity
2. Crossed blades design (rather than harmer slice design, which does harm to materials) litter heat generating during chopping work helps protect vitamins in berries. 3. This process helps pectin inside berries, which gives natural in consistency to the berries puree.
4. Ii-feed at normal temperature and outlet at 60-90°c. Temperature adjustable.

Refining and Evaporating 1. Rotated speed can go as 1470r/min, which generates large centrifugal force and helps increase the juice yield.
2. Every blade goes through dynamic balance test, with the feature of lower noise and smoother operation. 3. Forced circulation evaporator: Continuous concentration under vacuum and low temperature.
Sterilizing and Aseptic Filling 1. Tube-in-tube sterilizer, which contains heating, sterilizing and cooking section is mainly compose of tube in tube
heating-exchanger and feeding pump.
2. In case of sterilization, the product can be filled in aseptic bag in drums or in box thanks to Aseptic Filling Machine (aseptic carton box, aseptic pouches...), while can be filled in durms or in any type of hot or cold filling machine (glass, PET, Can and BIB).

Company Profile
Shanghai Chase Industrial Co., Ltd is founded in 2008, focus on food processing machinery.
We own more than 60 employees with rich industrial experience and advanced mechanical equipment, numbers of CE certifications and invention patents. We have complete service guarantee in equipment manufacturing and after-sale service of fruit and vegetable processing production machine, Diary processing lines, UHT pasteurizing lines and aseptic filling lines.
Our workshop covers an area of 8000 square meters, with full production space and equipment which meet the requirements of production flows. We have experienced mechanical engineers, electrical engineers and technicians. We design and produce all the important equipment and write PLC control programs by our own staff to ensure perfect after-sales maintenance. All the equipment is strictly inspected and tested in factory before delivery, to ensure smooth operation in customer's site.
