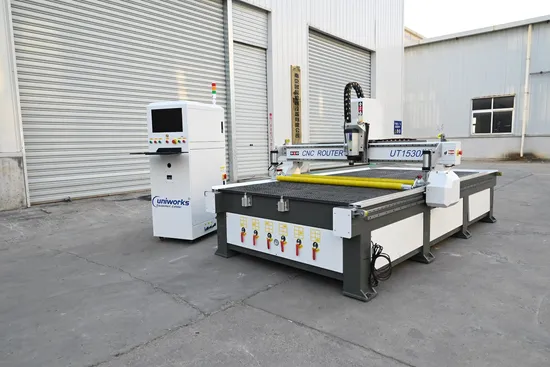

High Speed CNC Router Machine for Wood MDF Plywood

Product Description

Detailed Photos

MAIN PARTS
7.5KW Pump	Delta Servo Motor and Driver
HSD 6KW ATC spindle	Ncstudio Controller 95A
Heavy duty frame	Taiwan CSK Square Linear Guide

Product Parameters

XYZ Travel Size	1520X3020X150mm
Max Working Size	1500X3000X120mm
Table Size	1700X3000mm
Transmission Type	XY rack/Z ball screw
Guide Rail	Linear Guide
Table Type	Vacuum
Vacuum Pump	7.5KW Water Recycle Pump or 4.8kw air cool pump
Spindle Power	6kw Italy HSD spindle
Spindle Speed	18000rpm/24000rpm
Max Travel Speed	20000mm/min
Max Work Speed	15000mm/min
Motor	China Easy Servo Motor or Stepper motor
Work Voltage	AC380V 50HZ
Controller System	Ncstudio or DSP
Processing Accuracy	±0.05mm
Repeat Positioning Accuracy	±0.01mm
File Format	G code or PLT
Overall Weight	1600KG
Overall Dimension	2150X3500X1600mm

Product Description
Applications and Materials Furniture Industry: wood door,cabinet,classic furniture,panel furniture,etc Woodworking Industry: Automotive Trim,Stereo Equipment,Instruments,Office Furniture,Closet,etc Industry Area: Aluminum panel,copper,soft metal,engineering plastic,epikote,ABS panel
Highlights Integral welded big square steel pipe, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine running stability Big load capacity and long life;Y axis driven by double motors and planetary reducer; High machine rigidity and strong cutting strength ensure non deformation under high speed running. Various of table styles makes convenient clamping materials and improves overall production efficiency
Equipped with automatically lubrication system. Easy periodic maintenance with lightly pressing.
Efficiency; Smooth bottom surface, clear edge contour and fine processing quality.
Main configurations adopts imported accessories which will ensure the overall running performance
Strict compliance with CE electrical standards for circuit design and production, and all
Parts have safe and reliable protection device.
