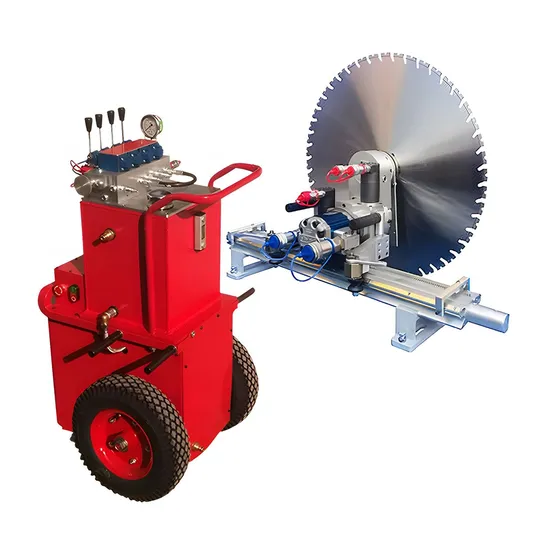

1200mm Hydraulic Stone Cutting Splitting Cutter Blade Electric Wall Cutting Saw Machine
Basic Info.
Model NO.
YG-800
Type
Hydraulic Cutting Machine
Usage
Glass, Cement Brick, Concrete Curb
Application
Machinery & Hardware, Construction, Mineral Industry, Stone Industry
Source Voltage
380V
Automation
Automatic
Cutting Ability
High Speed
Control
Artificial
Certification
CE
Product Name
Wall Saw Machine
Keywords
Diamond Wall Saw Machine
Max.Power
25kw
Motor Cooling Method
Air Cooling
Rated Voltage
380V 50Hz Three Phase
Pressure Stages
3
Max.Operating Pressure
200bar/20MPa
Oil Flow Rate
30-80L/Min
Saw Blade Diameter
800-1400mm
Cutting Depth
620mm
Max.Working Pressure
180bar/18MPa
Max.Oil Flow Rate
100L/Min
Rotation Speed
450/950/1300rpm
Packing
Wooden Case
MOQ
1set
Transport Package
Woode Case
Specification
1500*800*1200mm
Trademark
YG
Origin
Henan
HS Code
8464101000
Production Capacity
100set/Month
Product Description
Product Description1200MM hydraulic stone cutting splitting cutter blade electric wall cutting saw machine
Wall cutting machines are mainly used for cutting or seaming reinforced concrete walls, brick walls or stone materials, renovation, reinforcement, and design changes of buildings or old buildings. They can cut large-area walls such as door holes, windows, or elevator holes. cutting. The structure is damage-free and formed in one go. In addition to avoiding the damage to the building structure caused by traditional hammering construction, it also greatly saves time, material resources, manpower and expenses.
According to power, it is mainly divided into hydraulic wall saws, high-frequency wall saws and electric wall saws.
Features of Wall Saw Machine
1. Small size, light weight and easy to transport; light weight, high power and strong adaptability are the biggest advantages of this machine and equipment, filling the gap between the heavy weight of hydraulic wall saw machines and the low power of electric wall saw machines.
2. Remote control operation, visual intelligent cutting, safe and reliable; split design, quick disassembly, and can be installed and operated independently by one person.
Product Parameters
| Model | YG-600 |
| Max.power | 25KW |
| Motor cooling method | Air cooling |
| Rated voltage | 380V 50Hz three phase |
| Pressure stages | 3 |
| Max.operating pressure | 200bar/20Mpa |
| Oil flow rate | 30-80L/min |
| Dimensions | 600mm*650mm*1050mm |
| Weight | 220kg |
| Wall saw head specifications | |
| Model | YG-600 |
| Saw blade diameter | 800-1400mm |
| Cutting depth | 620mm |
| Max.working pressure | 180bar/18Mpa |
| Max.oil flow rate | 100L/min |
| Rotation speed | 450/950/1300Rpm |
| Dimension | 400mm*420mm*400mm |
| Weight | 38kg |
Detailed Photos
