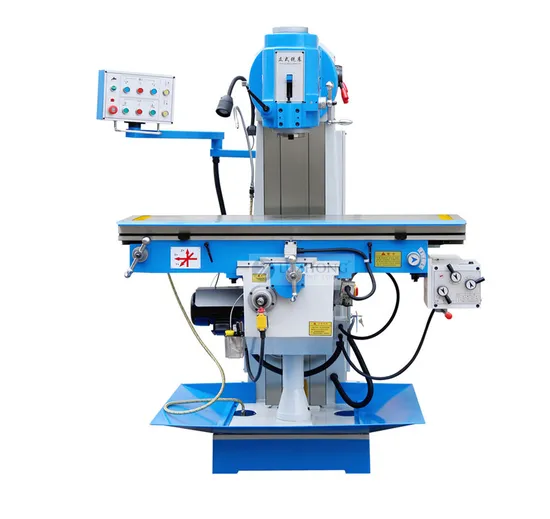

Mini Milling Machines X5036b-1 Vertical Milling Machine
| US$4,200.00-5,300.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
X5036B-1
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Machinery Test Report
Provided
Video Outgoing-Inspection
Provided
Max. Table Load(Kg)
500kgs
Range of Spindle Speed(r.p.m)
60 - 1700 r.p.m
CNC or Not
Normal
Table Size
1370X360
Table Travel
700X320 (830X320)
Color
Custom-Made
Transport Package
Export Wooden CTN
Specification
2100*2000*2200
Trademark
JYME
Origin
China
Production Capacity
1000
Product Description
Product ApplicationThe milling machine is a kind of universal light duty metal cutting machine,Has two functions of vertical and horizontal milling, Milling medium, small parts of the plane, inclined plane, groove and spline etc.. Widely used in mechanical processing, mold, equipment, instrumentation and other industries.
The main performance characteristics: 1. The use of the moment type of rail steel is good, strong stability 2. High frequency quenching of working table and guide surface 3. Working table Y, X are both gear drive automatic feed, Z for electric lift 4. X5036B - type slider (1200mm) to make the work of the working table longer, better stability 5. B type milling head with automatic feed device can be customized according to user requirements of the X direction of the work table 1300mm
Technical specifications:
| Specifications | Units | X5036B | X5036B-1 | X5036K |
| Table size | mm | 1500x360 | 1500x360 | 1500x360 |
| Table travel | mm | 800/320/450 | 1000/320/450 | 1000/320/450 |
| T slot(number-width-pitch) | mm | 3-18*80 | 3-18*80 | 3-18*80 |
| Spindle taper | - | ISO50 7:24 | ISO50 7:24 | ISO50 7:24 |
| Spindle speed range | rpm | 60-1700(12steps) | 60-1700(12steps) | 60-1800(12steps) |
| Distance between spindle nose and table surface | mm | 60-540 | 60-540 | 60-540 |
| Distance between spindle axis to column surface | mm | 360 | 360 | 360 |
| Main motor power | kw | 4 | 4 | 5.5 |
| Weight | kg | 2700 | 2700 | 3300 |
| Overall dimension | mm | 2600x2200x2220 | 2600x2200x220 | 2700x2300x2400 |
