US$0.45
1,000-4,999 Pieces
Basic Info.
Model NO.
Membrane Switch
Usage
Playback Switch, Disconnector, Change-over Switch, Control Switch
Application
Home Appliance, Telecommunication Equipment, With Remote Control, Calculator, Camera
Contact Type
Type c Contact
Number of Switch
Multi Control Switch
Detection Method
Retro-reflective Mode
Certification
ISO9001, CE, CCC
Product Name
Membrane Switch
Keywords
Metal Dome Membrane Switch
Circuit Rating
35V(DC),100mA,1 W
Contact Resistance
10omega - 500omega
Insulation Resistance
>100momega; 250V(DC)
Dielectric Withstand Voltage
250vrms(50 - 60Hz/1 Min)
Operating Temperature
-30celsius - +85celsius
Humidity
40celsius,90%-95%,240h
Responsiblity Working Life
Flat Type>/=500 Million Times
Tactile Type
>/=100million Times
Operating Pressure
Flat Type 57-284G(2-10 Oz)
Switch Stroke
Flat Type 0.1-0.5mm
Transport Package
Standard Packaging or Customized
Specification
Standard specifications or customized
Production Capacity
500000pieces/Year
Product Description
Product Description

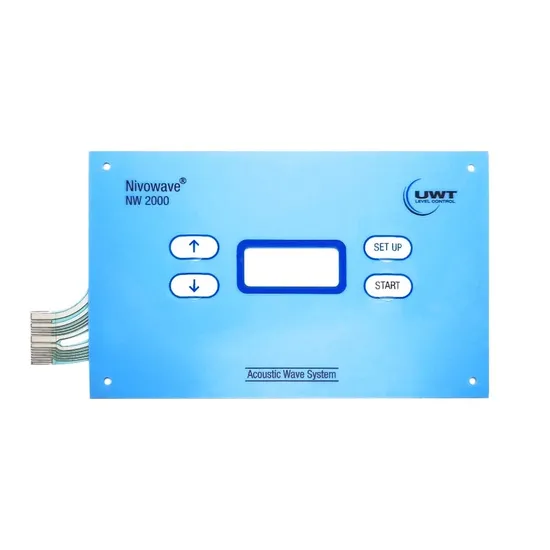

MEMBRANE SWITCH
A membrane switch is an electronic control device that uses a flexible membrane to register user input, typically in the form of a keypress or touch. It consists of a membrane overlay, an adhesive layer, a switch contact layer, and a conductive pattern. Membrane switches are commonly used in applications such as industrial control panels, medical devices, and consumer electronics, where a low-profile, water-resistant, and durable user interface is required. Membrane switches are ubiquitous components in modern electronic devices, offering a reliable interface for user input. When these switches fail, membrane switch repair becomes necessary for maintaining the functionality of various appliances and industrial equipment. This category encompasses a range of services to restore membrane switches' operational integrity.Product Parameters
MEMBRANE SWITCH SPECIFICATION |
Product Name | Membrane Switch |
Keywords | Metal Dome Membrane Switch |
Circuit Rating | 35V(DC),100mA,1 W |
Contact resistance | 10Ω - 500Ω |
Insulation Resistance | >100MΩ 250V(DC) |
Contact Bouce | </=5ms |
Dielectric Withstand Voltage | 250VRms(50 - 60Hz/1 min) |
Operating Temperature | -30Celsius - +85Celsius |
Humidity | 40Celsius,90%-95%,240H |
Responsiblity Working Life | Flat Type>/=500 Million Times |
Tactile Type | >/=100Million Times |
Operating ressure | Flat Type 57-284g(2-10 OZ) |
Switch Stroke | Flat Type 0.1-0.5mm |
Sample | Accept |
OEM/ODM | Accept |
We support customization of various styles |
Detailed Photos
DURABILITY
Made from high-quality materials, including PET PC, PVC, and rubber, our membrane switch keyboard is designed to withstand the rigors of daily use and harsh environments, ensuring a long lifespan.CUSTOMIZATION OPTIONS
Our membrane switch keyboard can be customized to meet your specific needs, allowing you to choose from a range of colors, sizes, and designs to match your brand identity, as requested by the user.WATERPROOF AND DURABLE
With a waterproof feature, our membrane switch keyboard can be used in wet or humid environments, making it ideal for use in home appliances and telecommunication equipment.CERTIFIED QUALITY
Our membrane switch keyboard meets the ISO 9001:2015 and RoHS standards, ensuring that our products meet the highest quality and safety requirements.EASY CLEANING
The smooth surface can be easily wiped clean, making it a hygienic option for medical and food preparation environments.FAQ
Q1: Are you a factory or trading company?
We are the factory, located in Dalian, China. You are highly welcome to visit us.
Q2: What information will I have to provide for the quotation?
For the exact price, please inform us of the material, thickness, size, whether adhesive or not, how many colors for printings, quantity required. Or send us the sample or design drawing for our check.
Q3: Can you offer samples?
5pcs free samples after receiving the setup cost.
Q4: What is the software you are using for the drawing?
Format: DWG, DXF, AI, CDR, PDF etc.
Q5: How long is the delivery time of the sample and bulk order?
Sample lead time: Around 7-10 working days
Bulk order lead time: Around 20-30 working days depending on the quantity and printing colors.
Q6: How do you deliver the cargo?
By FedEx, DHL, UPS, TNT, or other carrier specified. Or by sea.
