Product Description
JZRConcrete Mixer
JZR350 diesel motor cement mixture machine concrete mixer machine is of middle capacity, self-falling type. It is suitable for mixing plastic and low-slump concrete. The aggregate size is required to be smaller than 60 mm.The drum revolves for mixing and reverses for discharging. The rated output capacity of this mixer is 0.50 cubic meter.
Model
| JZR350
| JZR500
|
Hopper Lifting Model
| Hydraulic Tipping Hopper
| Hydraulic Tipping Hopper
|
Power Source
| Diesel Engine
| Diesel Engine
|
Charging Volume
| 560 L
| 750 L
|
Discharge Volume
| 350 L
| 500L
|
Dimension
| 3250*2240*3200 mm
| 3750*2240*3800 mm
|
Weight
| 1610 kg
| 2050KG
|

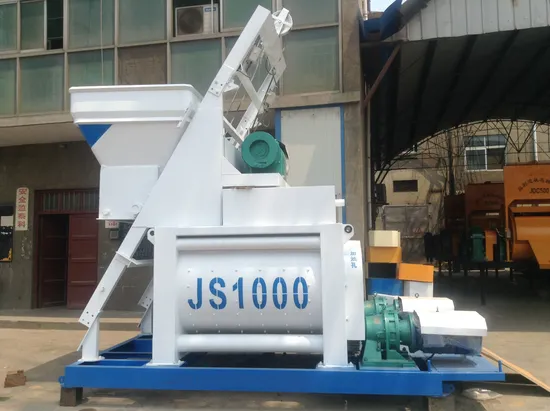

JS twin shaft mixer
JS series concrete mixer is double horizontal axle forced mixer, which has double advantages of single machine independent operation and simple concrete mixing station composed with PLD series batching machine. It can be used in various factories, highway, bridge, water conservancy wharf and other industry and civil construction projects. It can mix dry and hard concrete, plastic concrete flowing concrete ,cartilage aggregate,and various kinds of mortar, is a kind of high efficiency machine.
Product advantage:
1. Hydraulic (pneumatic) door unloading, safe and reliable.
2. Mixing blade, liner as alloy material, adding ferromanganese, ferrochromium, ferrovanadium and other elements, very wear-resistant.
3. The mixing speed is fast and the efficiency is high.
4. Integral casting spiral stirring arm has high strength, wear resistance and low force.
Item | JS500 | JS750 | JS1000 | JS1500 |
Charging Capacity | 800L | 1200L | 1600L | 2400L |
Discharging Capacity | 500L | 750L | 1000L | 1500L |
Productivity | 20-25m3 | 35m3 | 50-60m3 | 75m3 |
Max Size of Aggregate (Pebble/Macadam) | 40/50 | 80/60mm | 80/60mm | 80/60mm |
Overall Weight | 4000kg | 5500kg | 9700kg | 11130kg |
Planetary mixer
Vertical Shaft Concrete Mixer works with high quality and high efficiency, and mixes evenly without dead ends.
is mainly used in building materials,concrete such as dry-hard, semi-dry-hard, plastic concrete, UHPC concrete and fiber concrete.
Planetary Mixer concrete is also applied in refractory materials, chemical industry, casting, metallurgy, ceramics, glass and other related industries, it can meet requirements of high homogeneous mixing of material
Item | CMP500 | CMP750 | CMP1000 | CMP1500 | CMP2000 |
Input capacity | 750L | 1125L | 1500L | 2250L | 3000L |
Out capacity | 500L | 750L | 1000L | 1500L | 2000L |
Mixing power | 18.5kw | 30kw | 37kw | 55kw | 75kw |
Weight | 2400kg | 3900kg | 6200kg | 7700kg | 9500kg |
