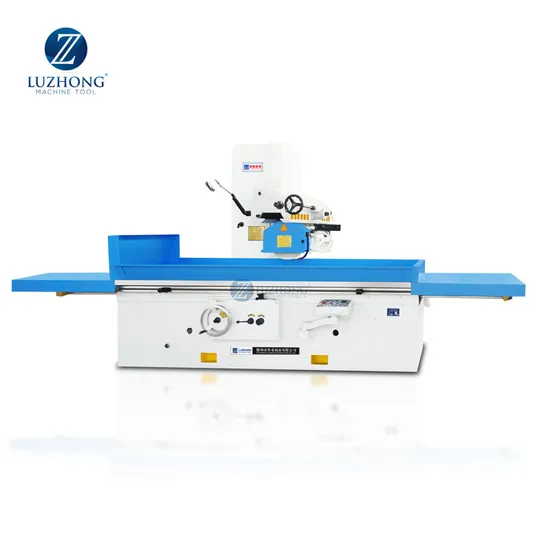

Low Cost M7132 Hydraulic Metal Surface Grinding Machine Grinder for Sale

Low Cost M7132 Hydraulic Metal Surface Grinding Machine Grinder for Sale

US$12,500.00
1-4 Sets
US$12,000.00
5+ Sets

Basic Info.

Model NO.
M7132
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Name
Low Cost M7132 Hydraulic Metal Surface Grinding Ma
Worktable size
1000X320/1600X320/2000X320mm
The grinding wheel size
350X127X40mm
Max. Cross movement of grinding herd
350
Max. Vertical movement of grinding head
400
Speed of grinding wheel
1440
Total power of motor
9/10/12
Surface roughness
Ra.0.63
Transport Package
Plywood Case
Specification
2800x1750x2350MM
Trademark
Luzhong Machine Tool
Origin
China
HS Code
8460190000
Production Capacity
50 Sets One Month

Product Description

Low Cost M7132 Hydraulic Metal Surface Grinding Machine Grinder for Sale
Product Description
The main performance characteristics:
The screw rod of the machine tool is made of special alloy steel through strict processing and heat treatment technology.
Grinding head vertical rapid lifting, improve production efficiency.
The grinding head lateral movement driven by hydraulic motor, which can also be manually.
The lifting mechanism and the triangle bracket adopt eccentric design, which is easy to adjust, and greatly prolong the service life of the machine tool.
Application:
Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.
The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts. Product Parameters
Product main technical parameters:
Description Units M7132x1000 M7132x1600 M7132x2000
Size of work table(L x W x H) mm 1000x320 1600x320 2000x320
Max. Longitudinal movement of worktable mm 1100 1700 2100
Max. Distance from the spindle centerline to the worktable surface mm 570 570 570
Max. Cross movement of grinding herd mm 350 350 350
Max. Vertical movement of grinding head mm 400 400 400
Vertical movement of the grinding head by hand wheel Every lattice mm 0.01 0.01 0.01
Each turn mm 1.00 1.00 1.00
Rapid lifting motor Power KW 0.37 0.37 0.37
Speed R/min 1440 1440 1440
Abrasive wheel dim (L x D x W) mm 350x127x40 350x127x40 350x127x40
Speed of grinding wheel r/min 1440 1440 1440
Total power of motor KW 9 10 12
Power of spindle motor KW 5.5 5.5 5.5
Power of oil pump motor KW 3 4 5.5
Processing accuracy mm 0.015/1000 0.015/1000 0.015/1000
Surface roughness um Ra:0.63 Ra:0.63 Ra:0.63
Package(L x W x H) mm 2800x1750x2350 4500x2000x2350 5500x2000x2350
Net weight Kg 3500 3550 3600

Detailed Photos
Company Information
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
