Top Fashion! ! ! New Mini 3.5 Cubic 3.5 4m3 5.5 Cement Machine Concrete Self Loading Portable Mobile Mixing Mixer Truck with Pump for Cheap Sale

Product Description

Q345 manganese steel frame, excavator luxury cab, driving video, cement bucket, air conditioning Drum rotation: Discharge Port Height 2 meters, cab and tank horizontal rotation 270 tank can be raised and lowered Transmission Mode: The engine is directly connected to the 280 split Torque converter, and is connected to the gearbox with double high and low speed through the transmission shaft to realize four-wheel drive
CLIMBING: 40 °
Special note: The tank cab can rotate synchronously !!!

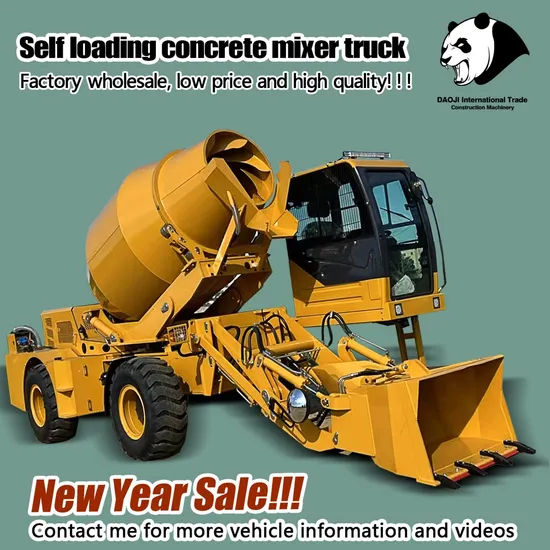

DJH9040 SELFLOADING MIXER TRUCK
MODEL NO	Model: DJH9040
TYPE	Articulated mobile chassis, self loading, mixing, transporting
FUNCTION	concrete, sand, fertilizer compound, wet or dry feed materias mixing and discharging
PRODUCTIVITY	BATCH≤15MINS, 4BATCHS/HOUR
drive	4 x 4
steering	Front steering
ENGINE	Yuchai power ycd4j22t 125, diesel, water-cooled, 4 cylinders, 2600 RPM, rated power 91KW
SPEED
	HIGH SPEED: 0-40KM/H; LOW SPEE:0-25KM/H
Gear number	Three forwards, three backwards
CAB	Driver's seat: Widen the luxurious cab of the excavator, front window can be opened, anti-roll, anti-falling object type, double armrest cushion seat
TIRE	TIRE: 12R-22.5 steel wire high pressure vacuum tire
CAPACITY:	Up to 4.5 batches per hour, 18 cubic hours
Spiral blade in tank	Double helix mixing, with the guide screw, so that the mixing material more uniform.Turn the feed left, turn the discharge right
mixing tank 270°discharges	The tank rotates horizontally to 270 degrees.There is no dead Angle for discharging around the vehicle
TIPPING CHUTE	equipped with two 150CM Removable Chute to increase the length of discharge
Bucket:	0.7 cubic, hydraulic gate
Bucket discharge switch	Hydraulic gate, electric control
OPERATION HANDLE	ELECTRIC CONTROL BUTTON FOUR-WAY GUIDE HANDLE
BRAKE	Use Small Servo pump on independent double circuit, use single wheel 4-piston plus double brake caliper
Steering:	Hydraulic articulated steering
Power System	24V
Fuel tank Water tank	Fuel tank / Water tank: 1 * 800 litres water tank, 135 litres diesel fuel tank, 135 litres hydraulic fuel tank
Water Supply System:	self-priming driven pump, 24V self-timing Centrifugal pump, car washing machine
HIGH-PRESSURE WATER PUMP WASH	HIGH-PRESSURE WATER PUMP WASH
Weighing system	Electronic weighing system (language optional)
whole weight	COMPLETE VEHICLE KERB MASS 8000kg
ALARM LAMP	STANDARD CONFIGURATION
RADIO	STANDARD CONFIGURATION
Length, width, height / wheelbase / Wheelbase:	7600mm*2950mm*3400mm*3000mm*2150mm
ESCAPE HAMMER	STANDARD CONFIGURATION
Astern sound prompt	STANDARD CONFIGURATION
Turning radius	3000 mm
Other: Q345 manganese steel frame, excavator luxury cab, driving video, cement bucket, air conditioning Drum rotation: Discharge Port Height 2 meters, cab and tank horizontal rotation 270 tank can be raised and lowered Transmission Mode: The engine is directly connected to the 280 split Torque converter, and is connected to the gearbox with double high and low speed through the transmission shaft to realize four-wheel drive CLIMBING: 40 °
